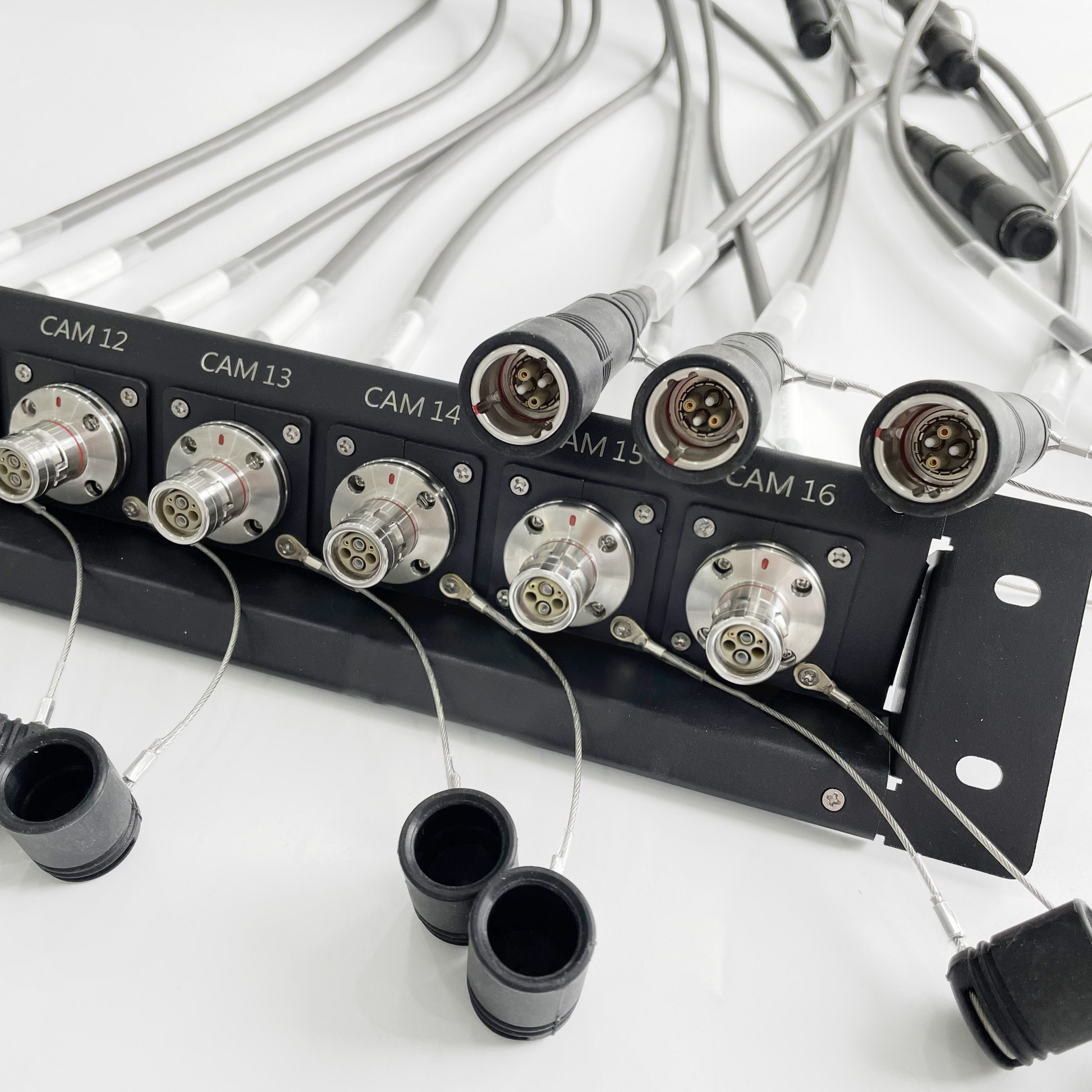

3K 93c FXW EDW PANEL FOR Camera and Broadcasting SMPTE Hybrid Cable Assemblies 3K 93C 1U 2U PANEL

Key attributes

Type	Connector
Application	Audio & Video
Gender	Female

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Model Number	1U PANEL /2U PANEL
Material	Stainless Steel
Application	Broadcast
Keywords	3K 93C
Fiber Type	Single Fiber Single Mode
Warranty	1 Year
Certification	ISO9001
Operating temperature	-40~+85
Package	Bags + carton(customized)
Feature	Reliability
Connector	ST SC FC LC

Packaging and delivery

Selling Units:	Single item
Single package size:	15X15X10 cm
Single gross weight:	1.000 kg

Product descriptions from the supplier

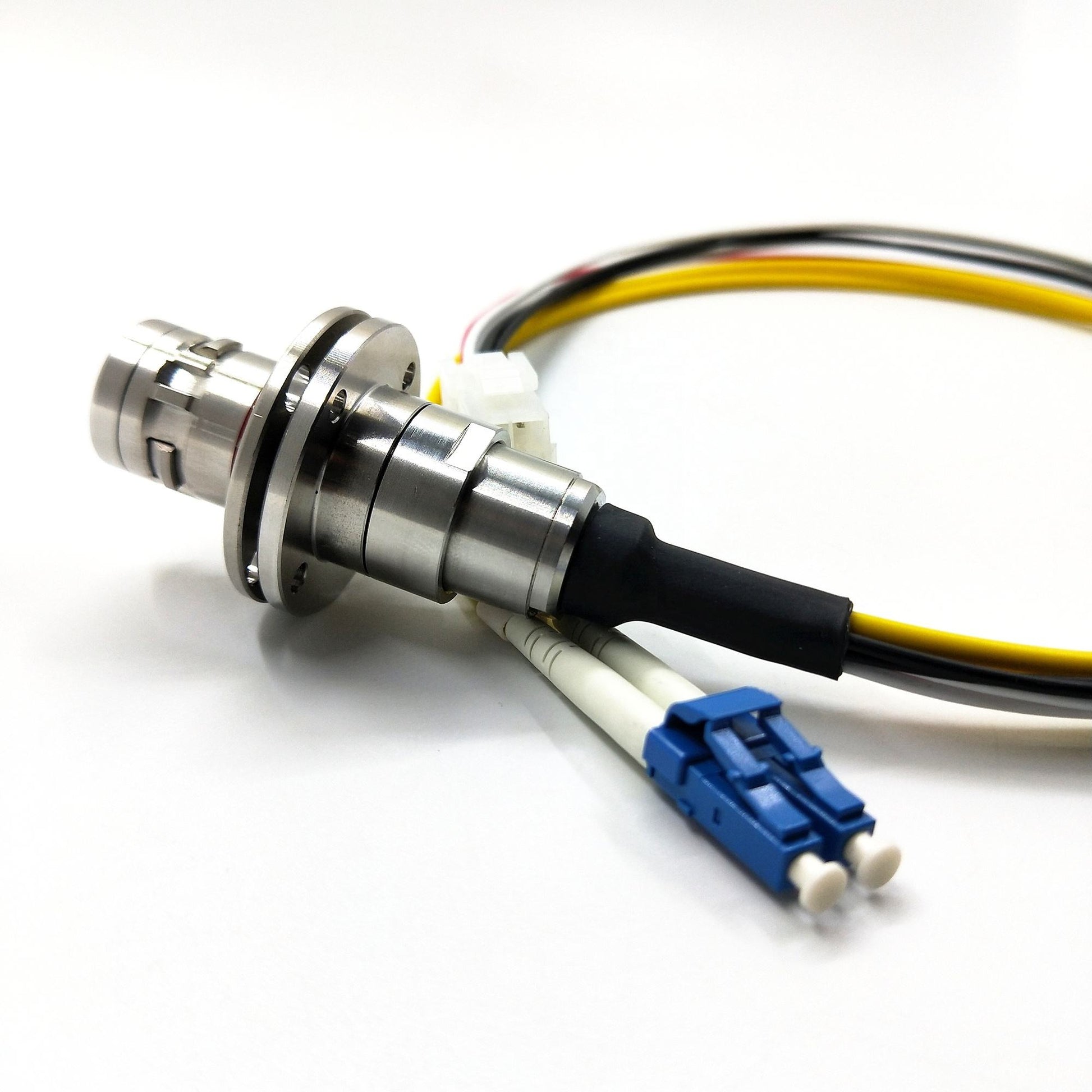

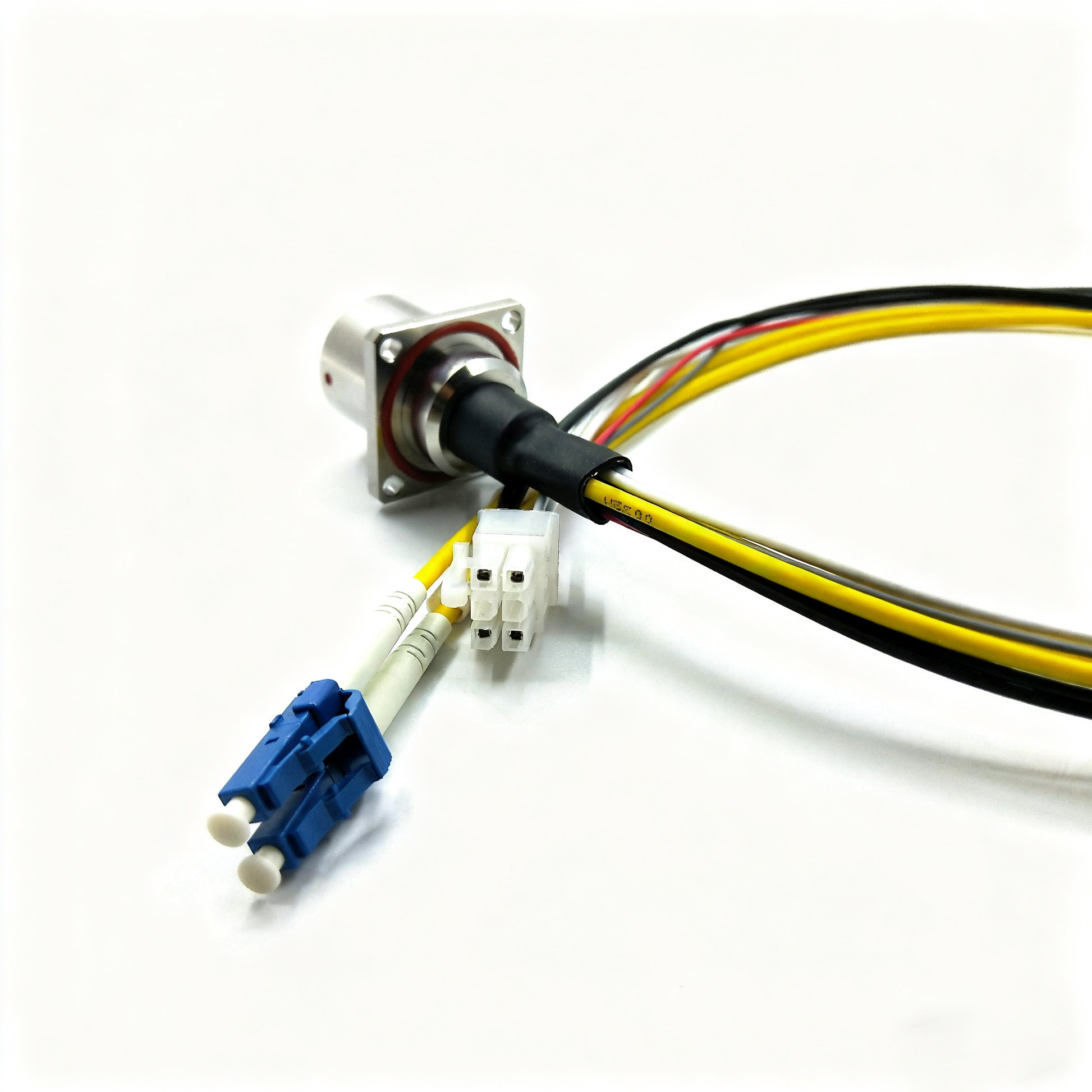

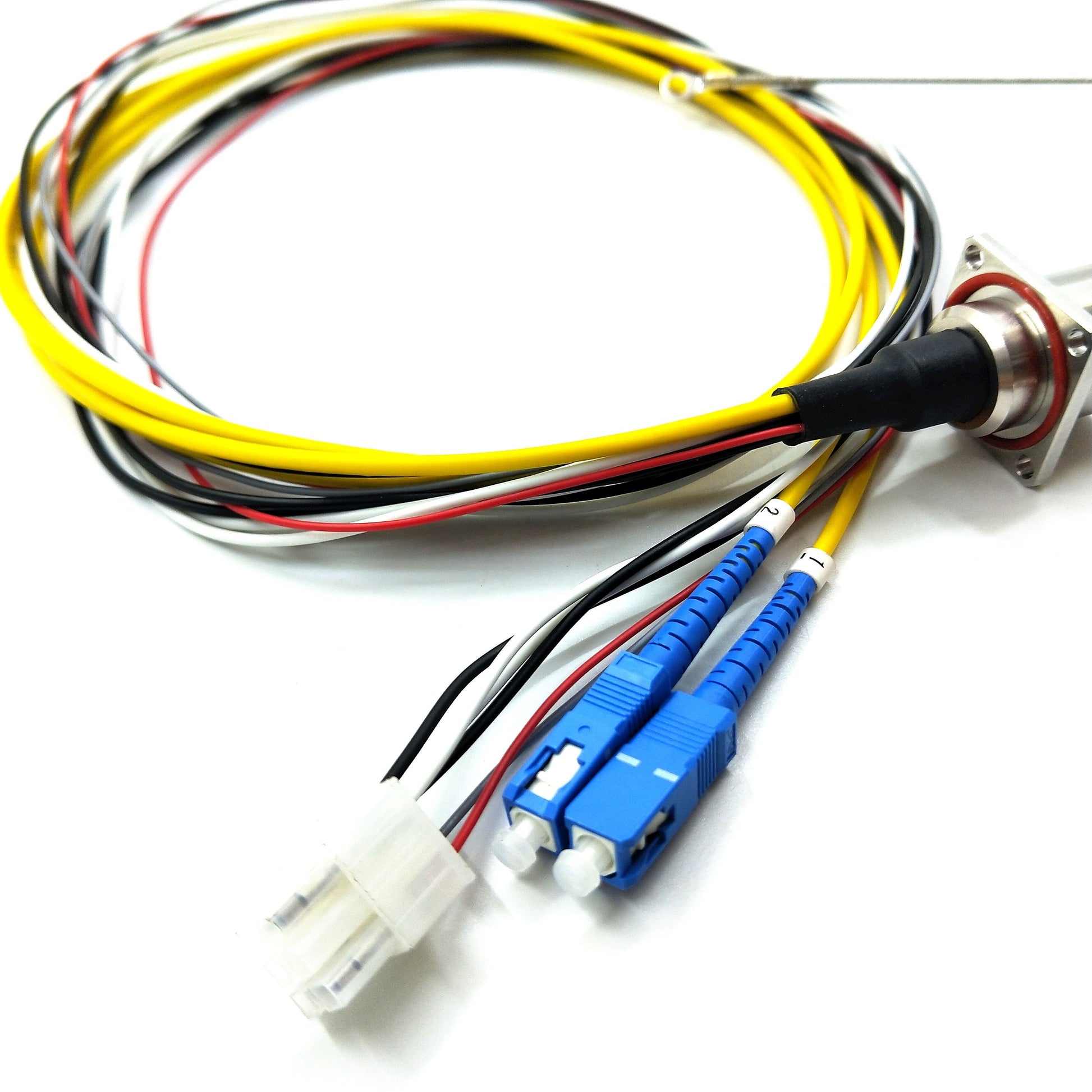

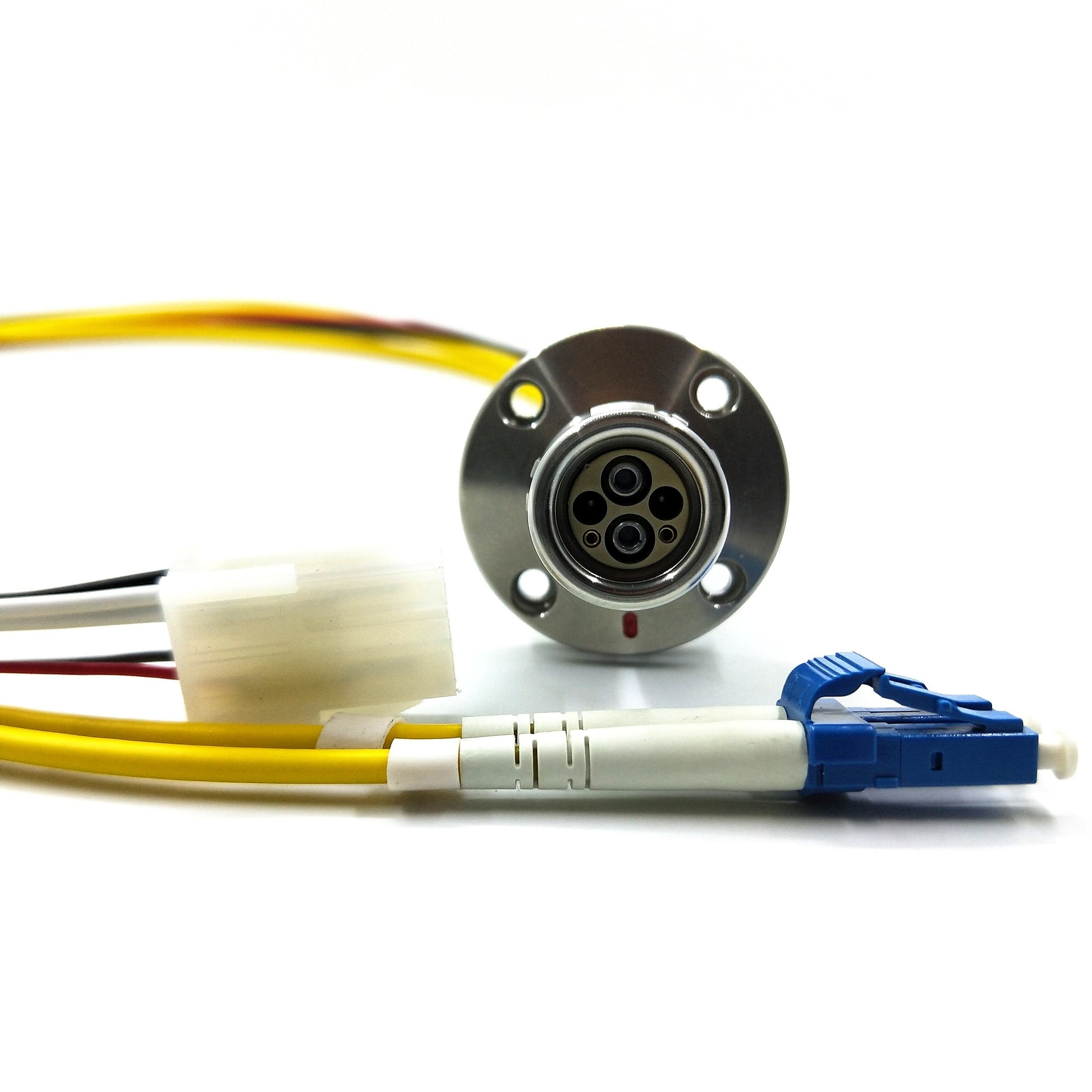

3K.93C Series Product Introduction

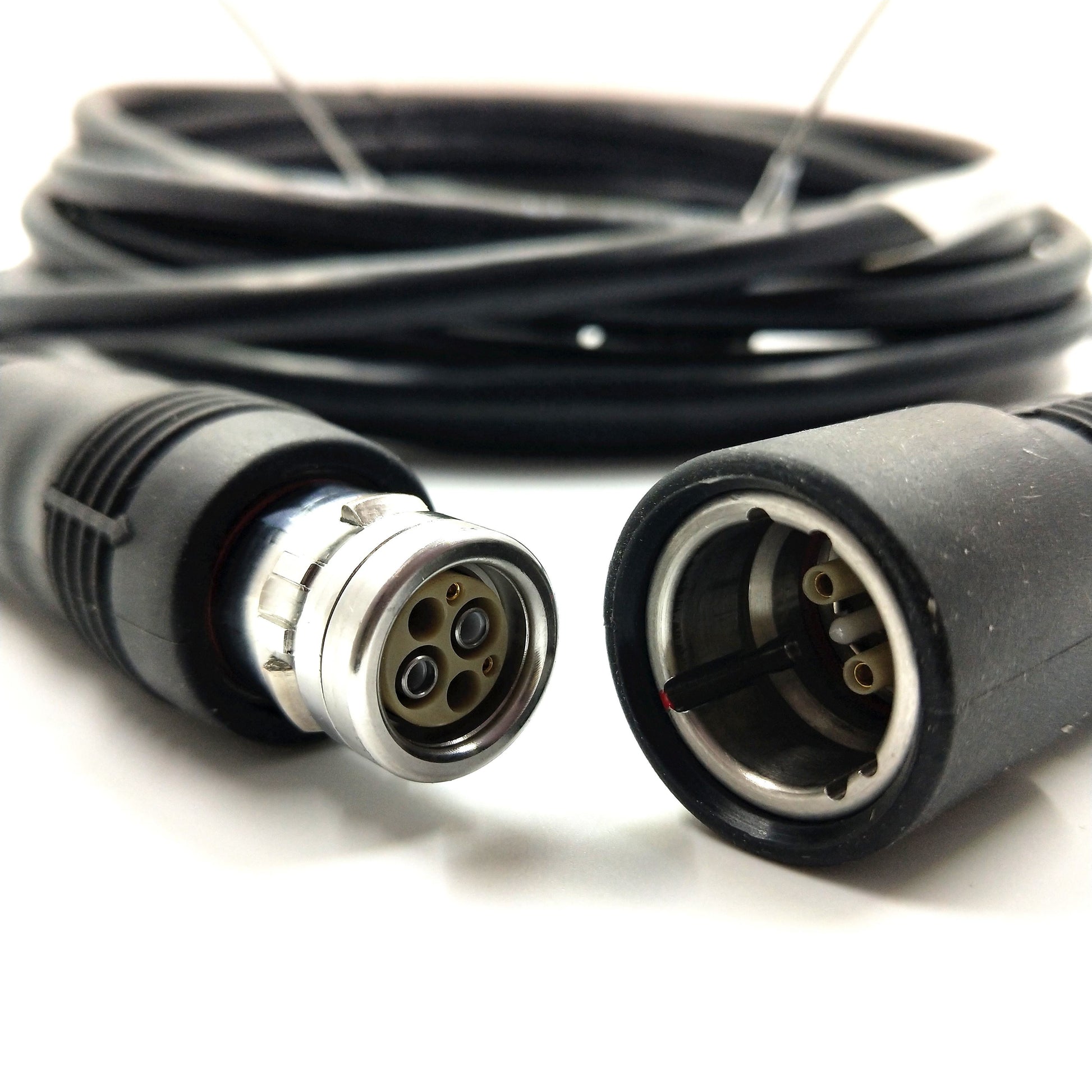

Our company specializes in the production of high-definition camera cable components, connectors Compatible with the original LEMO Switzerland 3K 93C connectors and CANARE connectors . The plug and pull self-locking system conforms to the standard of fast connection of SMPTE,ARIB and EBU at the same time. The opto-electronic composite cable consists of four power cords (20 AWG) for HDTV camera power supply, two signal control cords (24 AWG) and two single-mode fibers for video and audio transmission, the core of the composite cable runs through a 1.8 mm high-strength steel wire and is shielded by an integral braided mesh. The composite cable can be used for connecting different cameras for live broadcast of outdoor operations, the utility model can also be used in a fixing device of a control room connecting a studio camera. It is mainly used in outdoor live broadcast, stadium game broadcast, studio, concert, swimming pool, etc. .

3K.93C series Projects connecting ways

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
