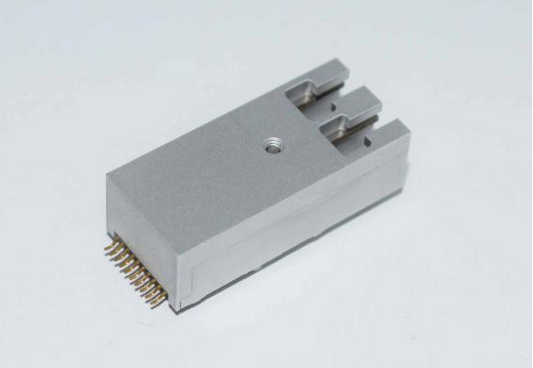

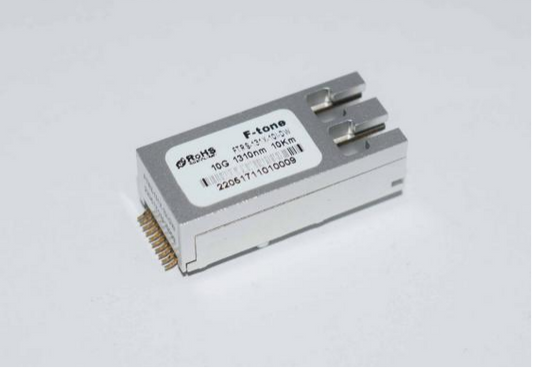

MINISFF Optical Transceiver

MINISFF Optical Transceiver

MINISFF Optical Transceiver, MINISFF Fiber Optical Transceiver, MINISFF Fiber Optical Transceiver Module

Features

  • More compact structure design——module height is only 8mm.
  • Adapt to SOT I/O pin with high speed signal integrity.
  • BIDI, save fiber channel.
  • Full metal jacket, industrial level of temperature range, vibration resistance design.
  • Equipped with the function of receiving data signal detection.
  • +3.3V single power.

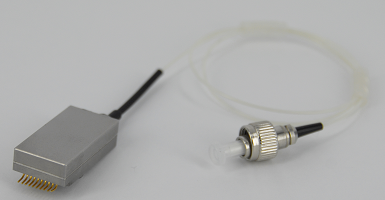

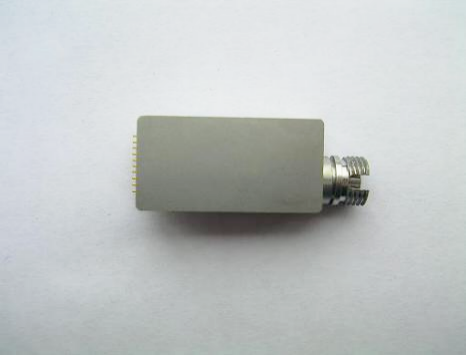

  • Optical interface with pigtail, flange interface, etc.
  • Pin and installation dimension are fully compatible with STRATOS product.

Applications

  • MINISFF series micro optical transceiver module could provide reliable and effective digital optical fiber communication application. Transmission rate could reach 10Gbps.
  • Digital radar array.
  • Reliable and high data rate point-to-point optical fiber communication.
  • High density signal interconnection of signal processing center.
Model Package Connector Rate Transmission Fiber Laser Emission Optical RX Sensitivity  Working
Distance (Km) Power (dBm) （dBm） Temperature (℃)
FTAP-11A35-3H MINISFF PIGTAIL 155M 2 SM 1310FP -6~0 -24 -40~85℃
FTAP-44A35-3H MINISFF FC PIGTAIL 1.25G 2 SM 1310FP -9~0 -21 -40~85℃
FTAP-77A35-3H MINISFF FC PIGTAIL 3.24G 2 SM 1310FP -8~0 -17 -40~85℃
FTAP-99ADE-SH MINISFF PIGTAIL 6G 2 SM 1270 -6~0 -14 -40~85℃
FTAP-99F35-SH MINISFF FC PIGTAIL 6.25G 0.3 SM 1310FP -10~0 -14 -40~85℃
FTAP-TTLDE-CH MINISFF PIGTAIL 10G 10 SM 1270 -8.2~-0.5 -14.4 -40~85℃
FTN3X-TTLAA-CH MINISFF FC/PC PIGTAIL 10G 10 SM 1310 -8.2~-0.5 -14.4 -40~85℃
FTN5S-HHF8A-SH MINISFF ST PIGTAIL 4.8G 0.3 SM 850 -5~0 -17 -40~85℃
FTNL-44DAA-3H MINISFF LC 1.25G 40 SM 1310DFB -3~-2 -23 -40~85℃
FTNL-66LAA-CH MINISFF LC 2.5G 10 SM 1310DFB -6~0 -18 -40~85℃
FTNL-882AA-CH MINISFF LC 4.25G 20 SM 1310DFB -3~0 -18 -40~85℃
FTALW-7NA3C-3H MINISFF LC 3.2G 2 SM 1310FP -8~0 -40~85℃
FTALW-7NLAC-3H MINISFF LC 3.2G 10 SM 1310DFB -6~0 -40~85℃
FTALW-N7ANA-3H MINISFF LC 3.2G 2 SM -17 -40~85℃
FTALW-N7LNA-3H MINISFF LC 3.2G 10 SM -17 -40~85℃
FTAP2-7NA3C-3H MINISFF FC PIGTAIL 3.2G 2 SM 1310FP -8~0 -40~85℃
FTAP2-N7ANA-3H MINISFF FC PIGTAIL 3.2G 2 SM -17 -40~85℃
FTNL-44S88-SH MINISFF LC 1.25G 0.5 MM 850VCSEL -9~0 -17 -40~85℃
FTNL-88F88-SH MINISFF LC 4.25G 0.3 MM 850VCSEL -9~0 -15 -40~85℃
FTNP-44L3A-SH MINISFF PIGTAIL 1.25G 10 SM 1310FP -9~0 -21 -40~85℃
FTNP-44S88-SH MINISFF PIGTAIL 1.25G 0.5 MM 850VCSEL -9~0 -18 -40~85℃
FTNP-88F88-SH MINISFF PIGTAIL 4.25G 0.3 MM 850VCSEL -8~0 -15 -40~85℃
FTNP-99ACA-SH MINISFF PIGTAIL 6G 2 SM 1550DFB -5~+1 -15 -40~85℃
FTNPS-77F8A-SH MINISFF PIGTAIL 3.125G 0.3 MM 850VCSEL -5~0 -25 -40~85℃
FTAF-11LCA-SH MINISFF FC 155M 10 SM 1550DFB -9.5~0 -24 -40~85℃
FTAF-77L35-3H MINISFF FC 3G 10 SM 1310FP -9.5~0 -18 -40~85℃
FTAF-TTADE-SH MINISFF FC 10G 2 SM 1270 -8~0.5 -14.4 -40~85℃
FTNL-66D47-CH MINISFF LC 2.5G 40 SM 1470CWDM 0~+5 -26 -40~85℃
FTNL-99245-CH MINISFF LC 6.25G 20 SM 1450CWDM -3~+2 -14.4 -40~85℃
FTNL-LLL17-3H MINISFF LC 0~100M 10 SM 1563.86DWDM -5~0 -15 -40~85℃
FTNL-NTLNA-CH MINISFF LC 10G 10 SM -14.4 -40~85℃
FTNL-TNLAN-CH MINISFF LC 10G 10 SM 1310DFB -8.2~+0.5 -40~85℃
FTNL-TTF88-CH MINISFF LC 10G 0.3 MM 850VCSEL -5~+1 -10 -40~85℃
FTNL-TTLAA-3H MINISFF LC 10G 10 SM 1310DFB -8.2~+0.5 -14.4 -40~85℃
FTNL-TTL27-CH MINISFF LC 10G 10 SM 1270CWDM -3~+2 -14.4 -40~85℃
FTNLV-7ND27-CH MINISFF LC 3G 40 SM 1270CWDM 0~+5 -40~85℃
FTNLV-N7DNA-CH MINISFF LC 3G 40 SM -20 -40~85℃
FTNPS-77F8A-SH MINISFF PIGTAIL 3G 0.3 MM 850VCSEL -5~0 -25 -40~85℃
