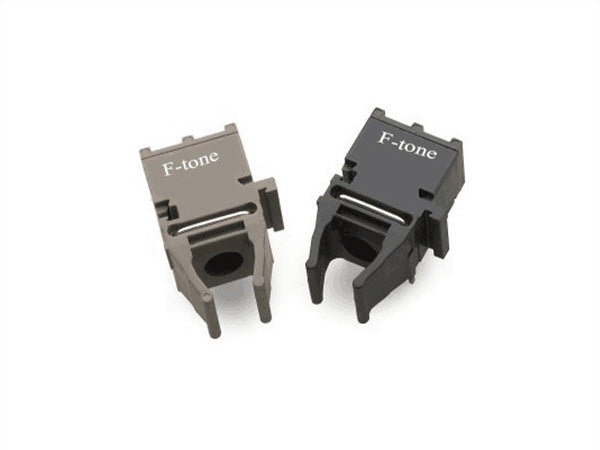

AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module

Name: AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Brand: 我的商店
Availability: InStock

product presentation
The FT-1528Z/2528Z series fiber optic transceivers are designed for use with 650nm plastic optical fibers (POF). They deliver high-performance and cost-effective fiber optic communication links for applications in industrial, power generation, medical, transportation, and gaming sectors. When the FT-1528Z is driven by a 60mA current, it achieves a minimum transmission distance of 53 meters.

The FT-1528Z/2528Z series is fully compatible with AVAGO’s HFBR-1528Z/2528Z series products. It supports industry-standard plastic optical fiber interfaces and features a horizontal configuration. This series is compatible with 1mm-diameter plastic optical fibers and 200μm-diameter HCS (Hard-Clad Silica) fibers.

The FT-1528Z is a transmitter, encapsulated with a high-power LED chip with a peak wavelength of 650nm. When paired with 1mm-core-diameter plastic optical fibers and driven by a 60mA current, its typical output optical power is -4dBm. The FT-2528Z is a receiver, consisting of a high-gain transimpedance amplifier (TIA) integrated with a photodiode. Its output stage adopts a rail-to-rail architecture, providing a final output of TTL levels. To enhance the stability of the receiver’s output pulse width, the receiver chip is designed with an automatic pulse width calibration circuit, ensuring pulse width distortion is within ±20ns.

Product characteristics
● Data transfer rate: DC-10 MBd
● Minimum transmission distance: 53 meters
● The output waveform and pulse width is stable
● Typical power consumption of the receiver: as low as 6mA
● Meets industrial-grade temperature range: -40℃ to 85℃
● Compliance with the RoHS criteria

Product application
● Factory automation
● Lan
● Audio and video applications / game applications
● Industrial network and fieldbus

Overall dimensions drawing (FT-1528Z/2528Z)

List of product models

Product model	Description
FT-1528Z	Transmitter
FT-2528Z	Receive devices

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
