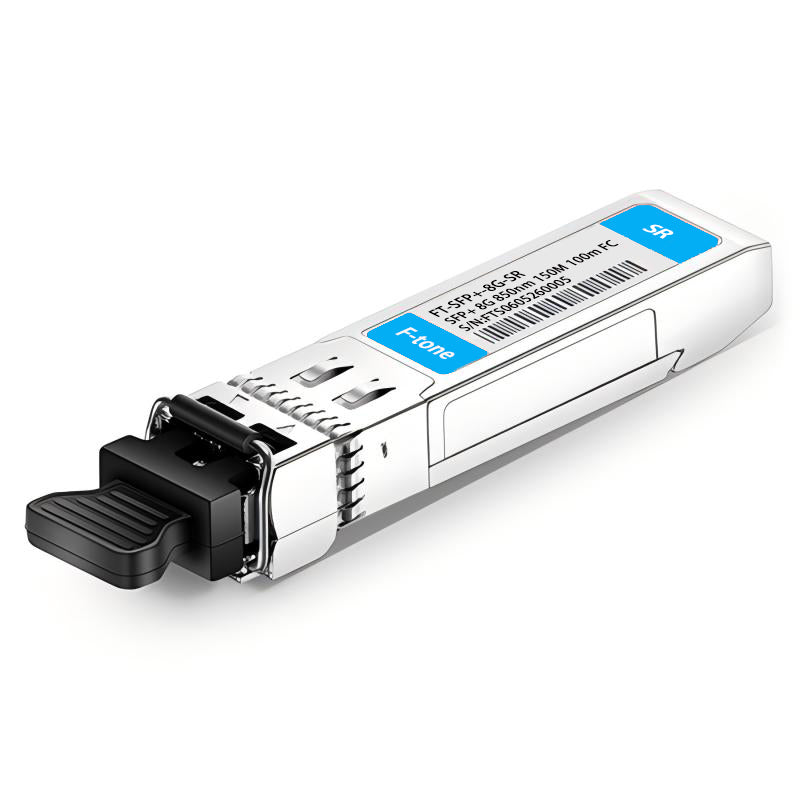

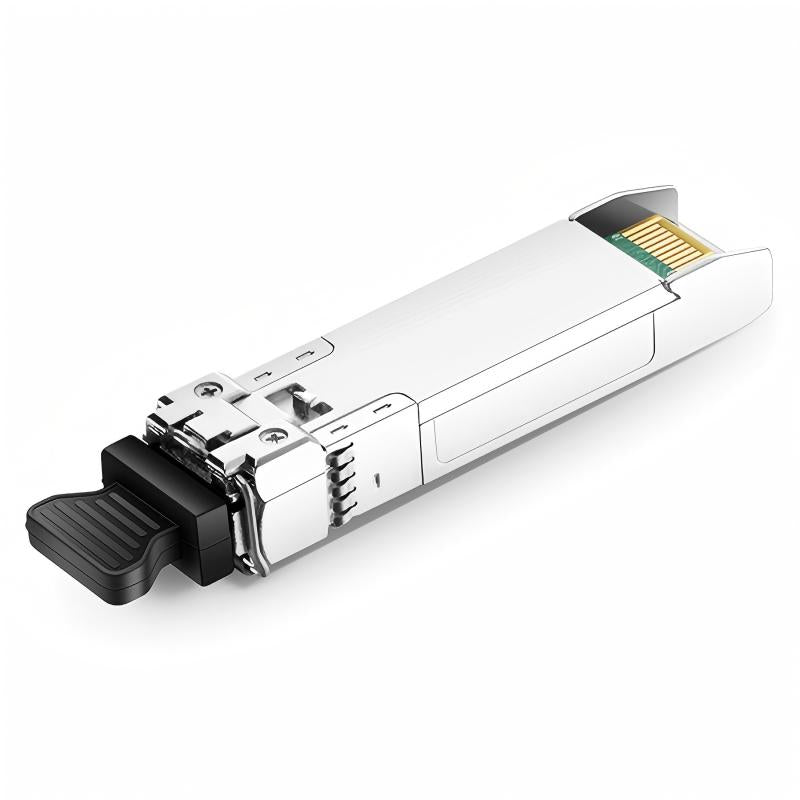

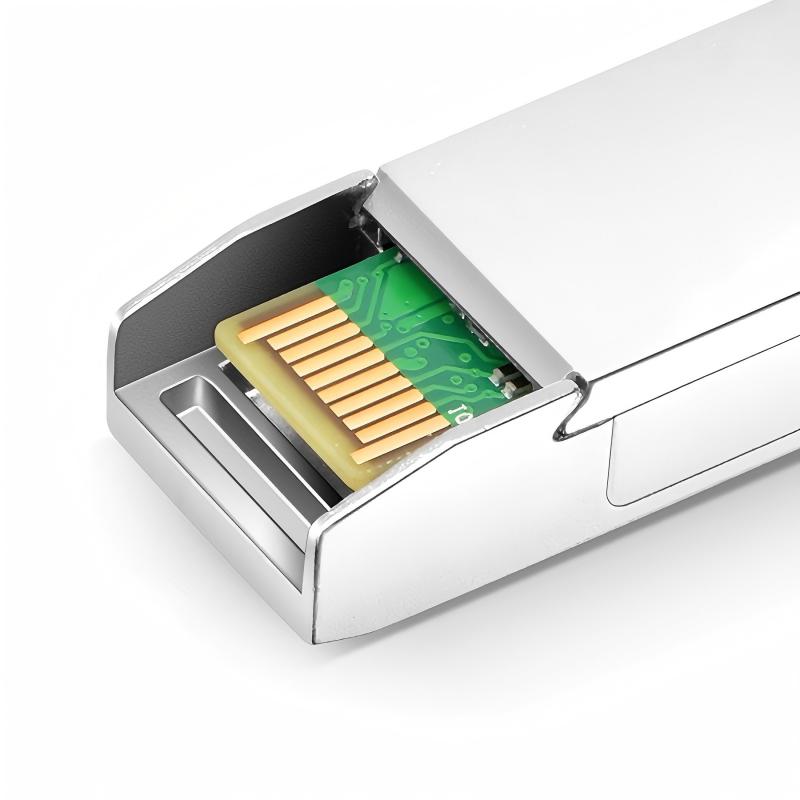

Cisco DS-SFP-FC8G-SW Compatible 8G Fibre Channel SFP+ 850nm 150m DDM LC MMF Transceiver Module

Cisco DS-SFP-FC8G-SW Compatible 8G Fibre Channel SFP+ 850nm 150m DDM LC MMF Transceiver Module

Cisco DS-SFP-FC8G-SW Compatible 8G Fibre Channel SFP+ Transceiver Module (MMF, 850nm, 150m, LC, DDM)

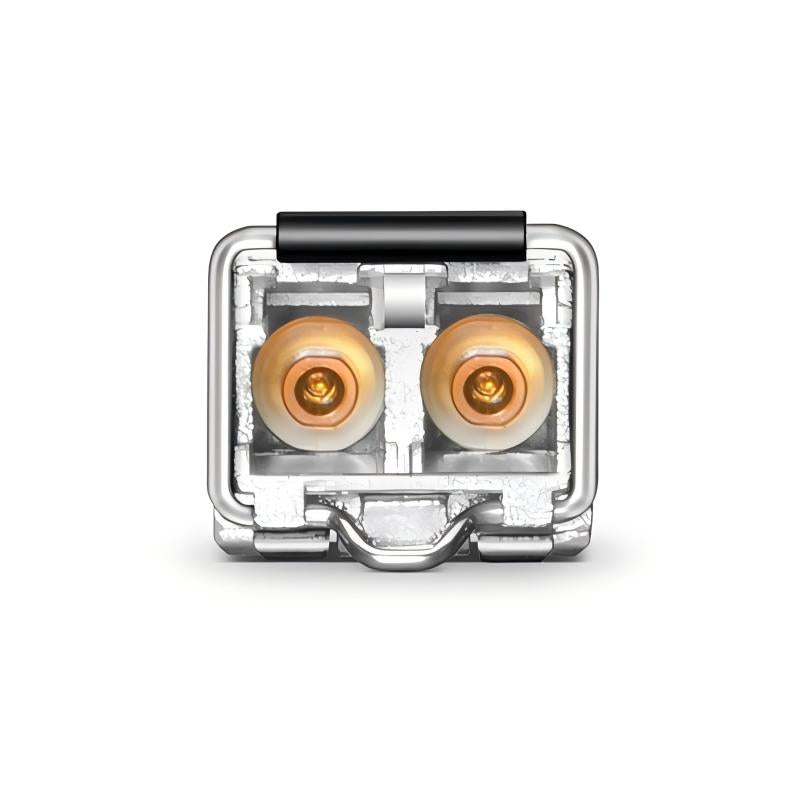

Cisco DS-SFP-FC8G-SW Compatible 8G Fibre Channel SFP+ is equipped with an LC duplex connector, reaching a link of 150m at 8.5Gb/s over multimode fiber (MMF) at a wavelength of 850nm. The Fibre Channel transceiver complies with SFP+ MSA specifications (SFF-8472) and Fibre Channel FC-PI-4 specifications. DDM (digital diagnostics monitoring) function is supported on the 1G fiber optic transceiver to achieve real-time operating parameters monitoring. This transceiver is equivalent to the original Cisco DS-SFP-FC8G-SW model. It is applied for High-speed storage area networks such as Switches and hubs, Network interface cards, Mass storage systems, Host bus adapters and 2G/4G/8G Fibre Channel.

Part Number

FT-SFP-8G-SR

Vendor Name

F-tone

Form Factor

SFP+

Data Rate

8.5Gbps

Wavelength

850nm

Distance

300m

Connector

LC Duplex

Optical Components

VCSEL 850nm

Media

SMF

DOM Support

Yes

TX Power

-6 ~ -1dBm

Receiver Sensitivity

< -11.1dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEC/EN 61000-4-2,IEC-60825FDA 21CFR 1040.10 and 1040.11 RoHS



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
