FXW Socket HDTV Broadcasting and Camera Cable Connectors Assemblies

Key attributes

Type	Connector
Application	Audio & Video
Gender	Other

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Model Number	FXW-DLC
Material	Stainless Steel
MOQ	2 pcs
Usage	Video Equipment
Market	Global
Shipping by	Courier
Packing	Plastic Bag + Carton
Temperature Range	40 ~+85
Product Keywords	3K.93C

Packaging and delivery

Selling Units:	Single item
Single package size:	10X10X5 cm
Single gross weight:	0.500 kg

Product descriptions from the supplier

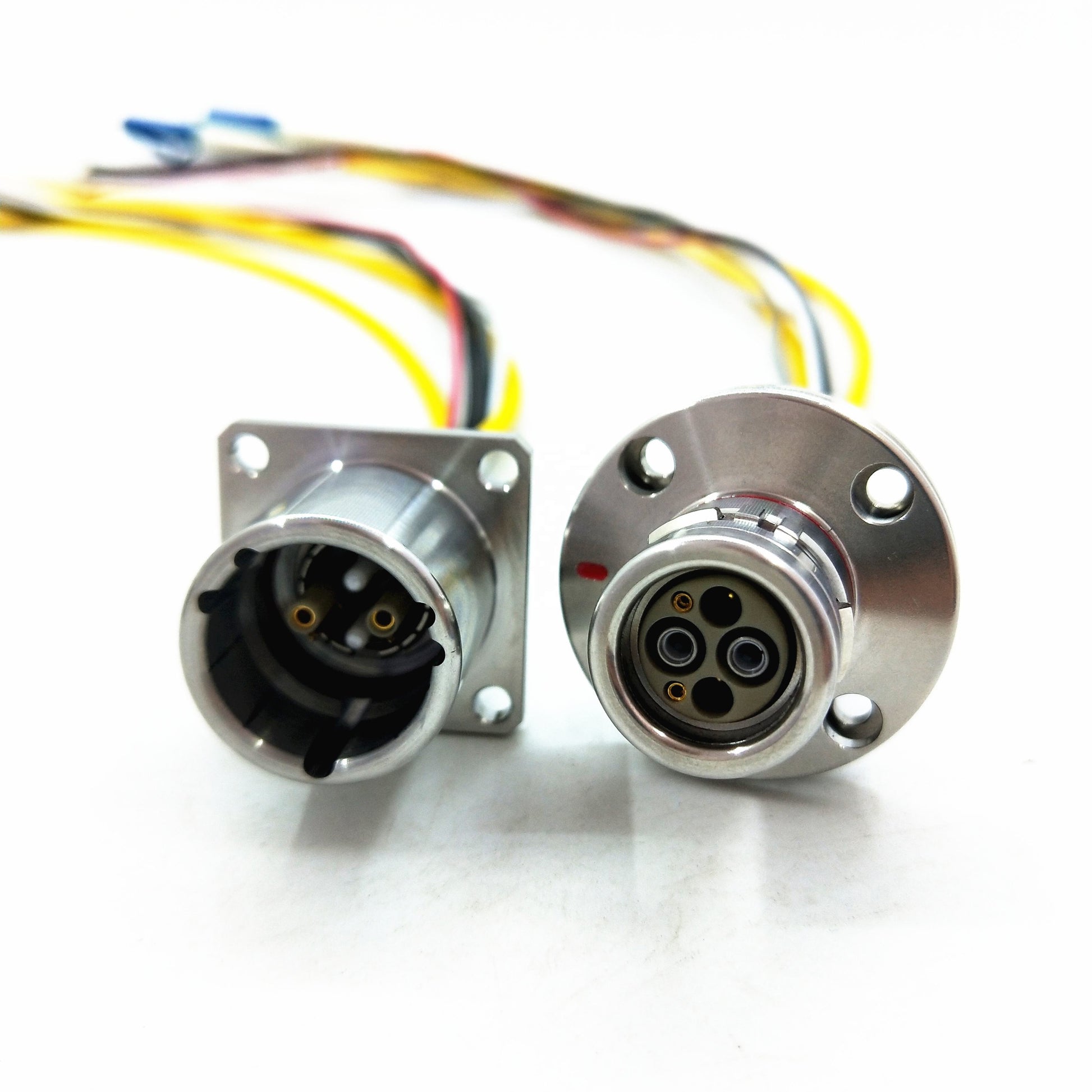

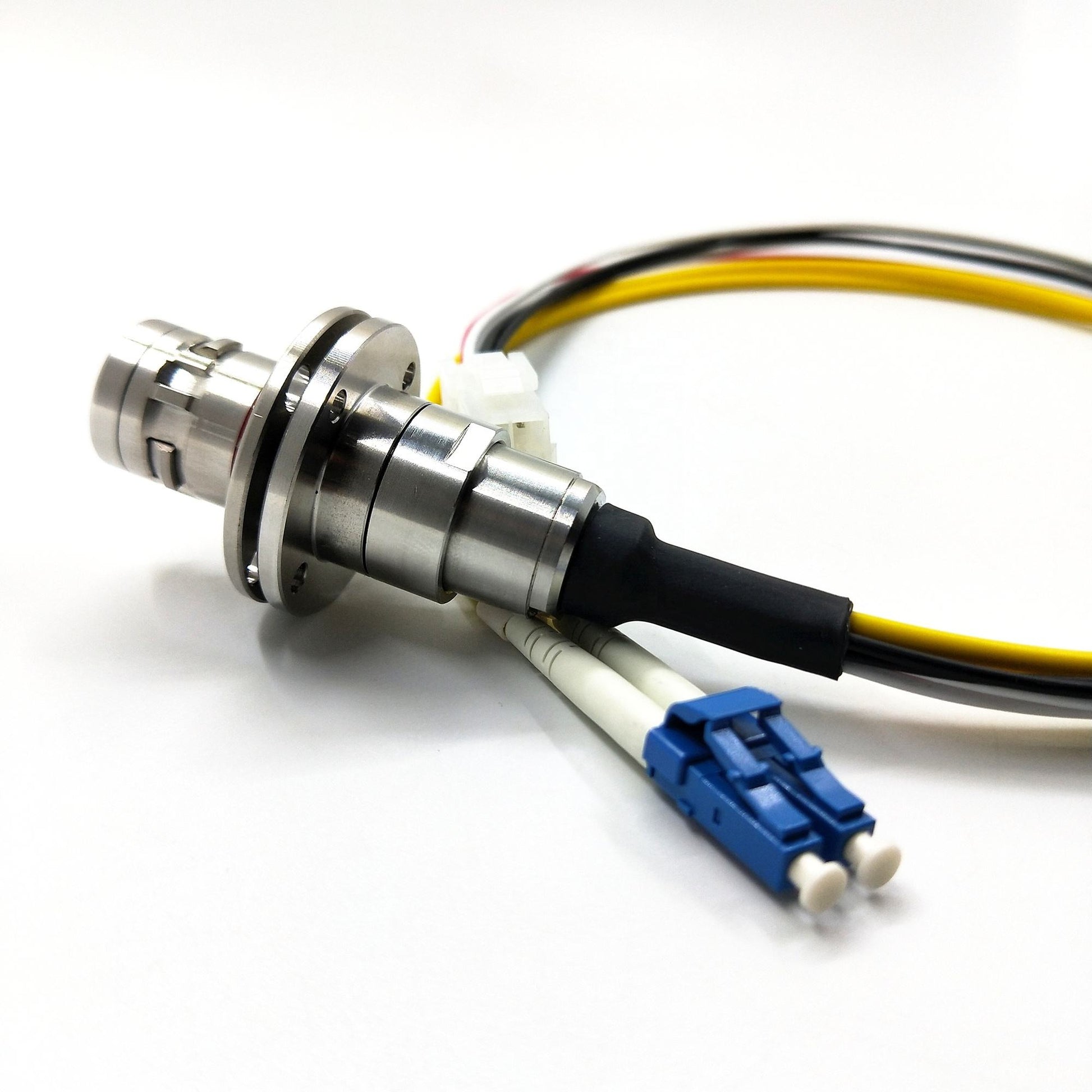

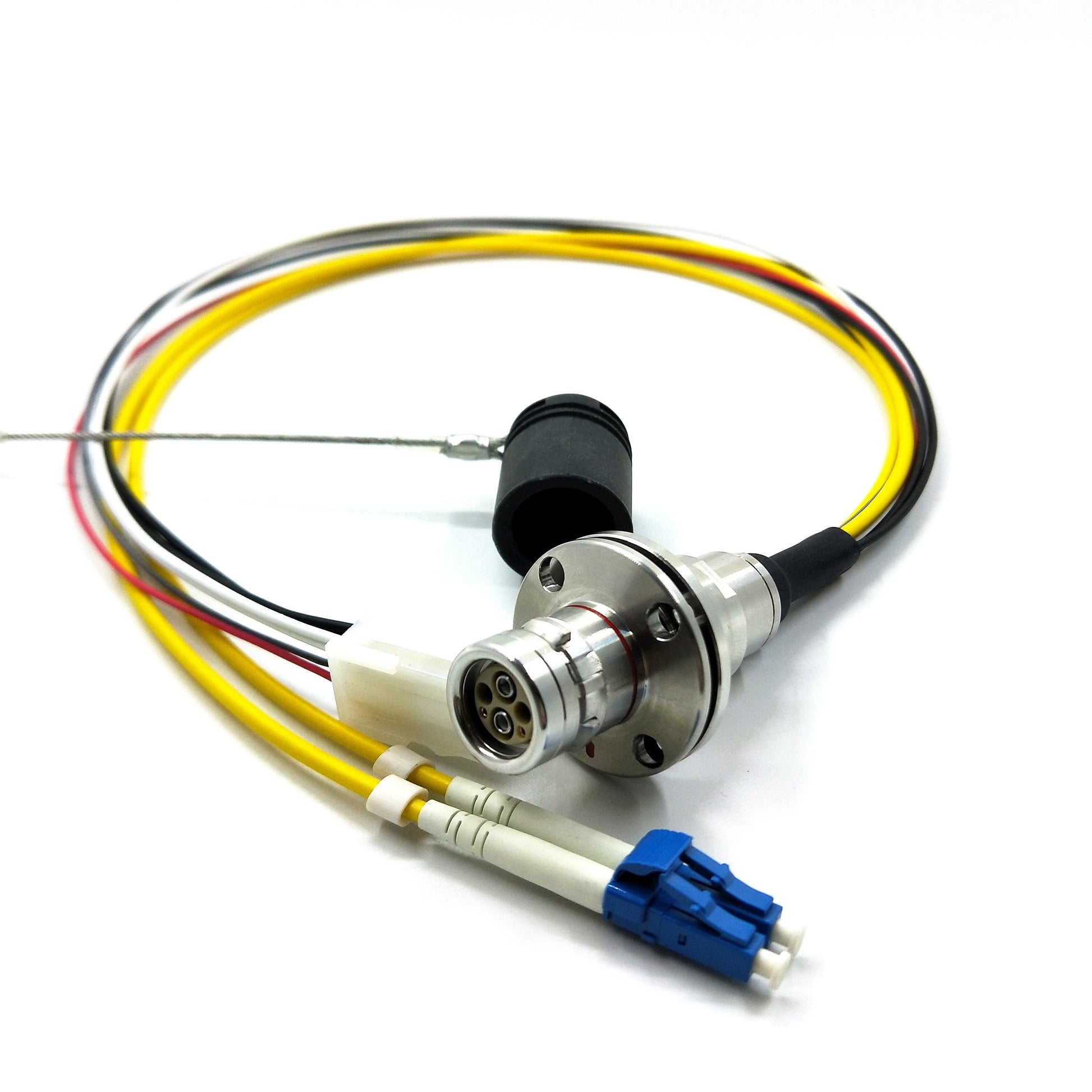

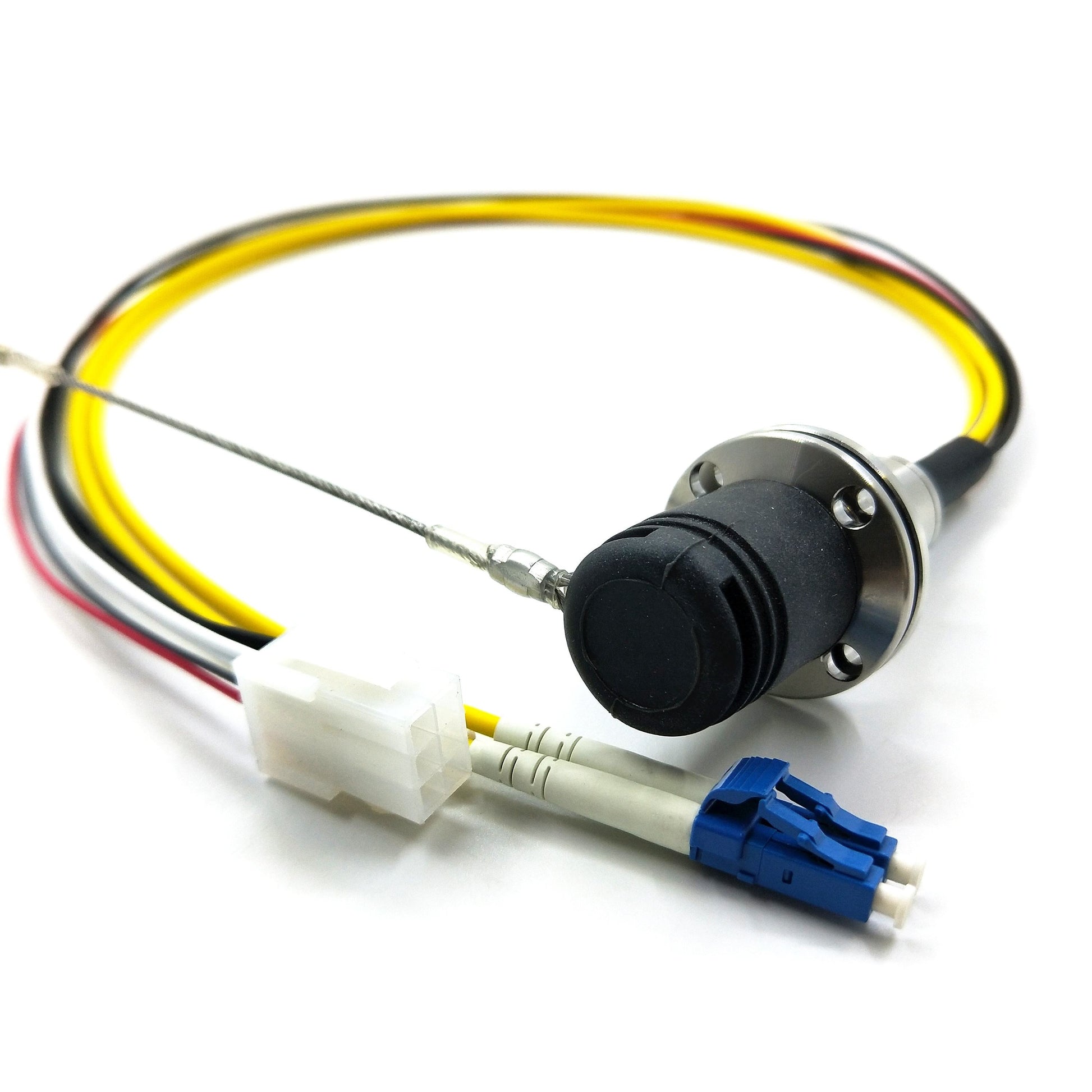

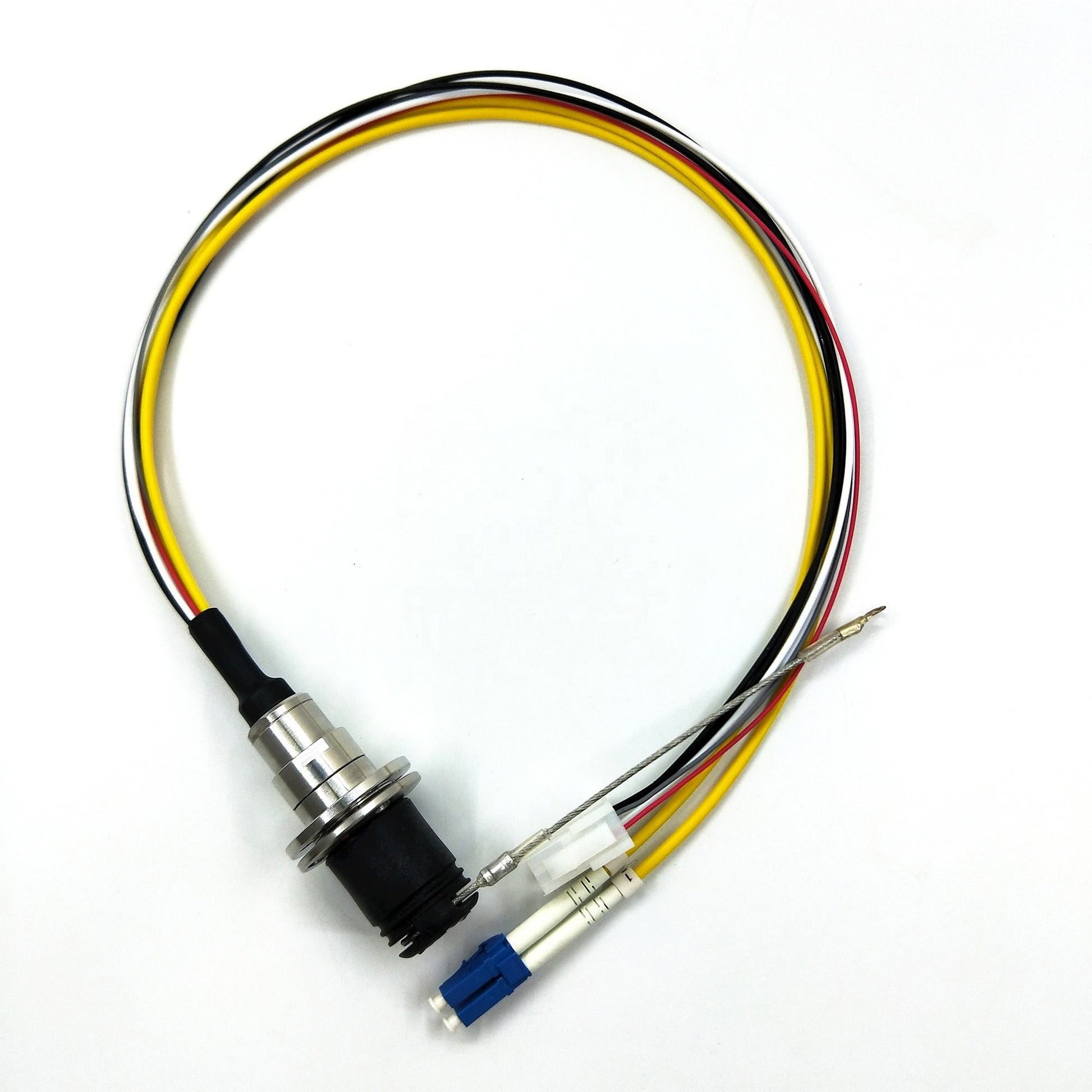

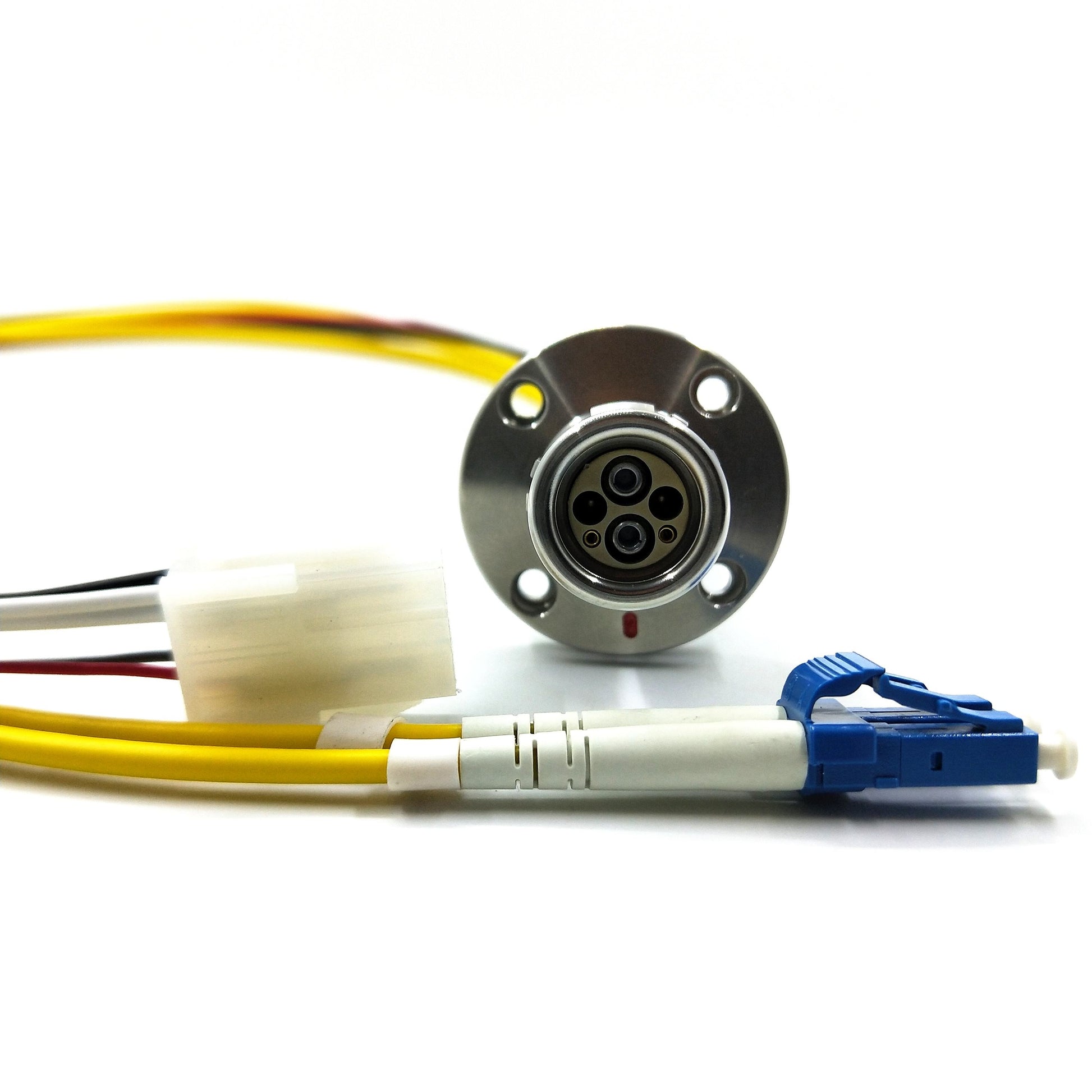

Details Images

Applications：

• Live Broadcasting Applications
• Sports Live Broadcasting Applications
• Studio applications
• Concert

Features：

• Push-pull self-latching system for quick and easy mating.
• Compact design with 2 fibers, 2 power contacts and 2 signal contacts.
• Easy cleaning of the fiber optic contact ferrules.
• Tested to the requirements of IEC 61300.
• Very low optical losses (<0.10dB).
• Reliable design, sealed to IP68.
• Optional pre-terminated F2 fiber ferrule, quick and easy on-site installation.
• Comply with SMPTE、ARIB & EBU Standard

Connection Diagram

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
