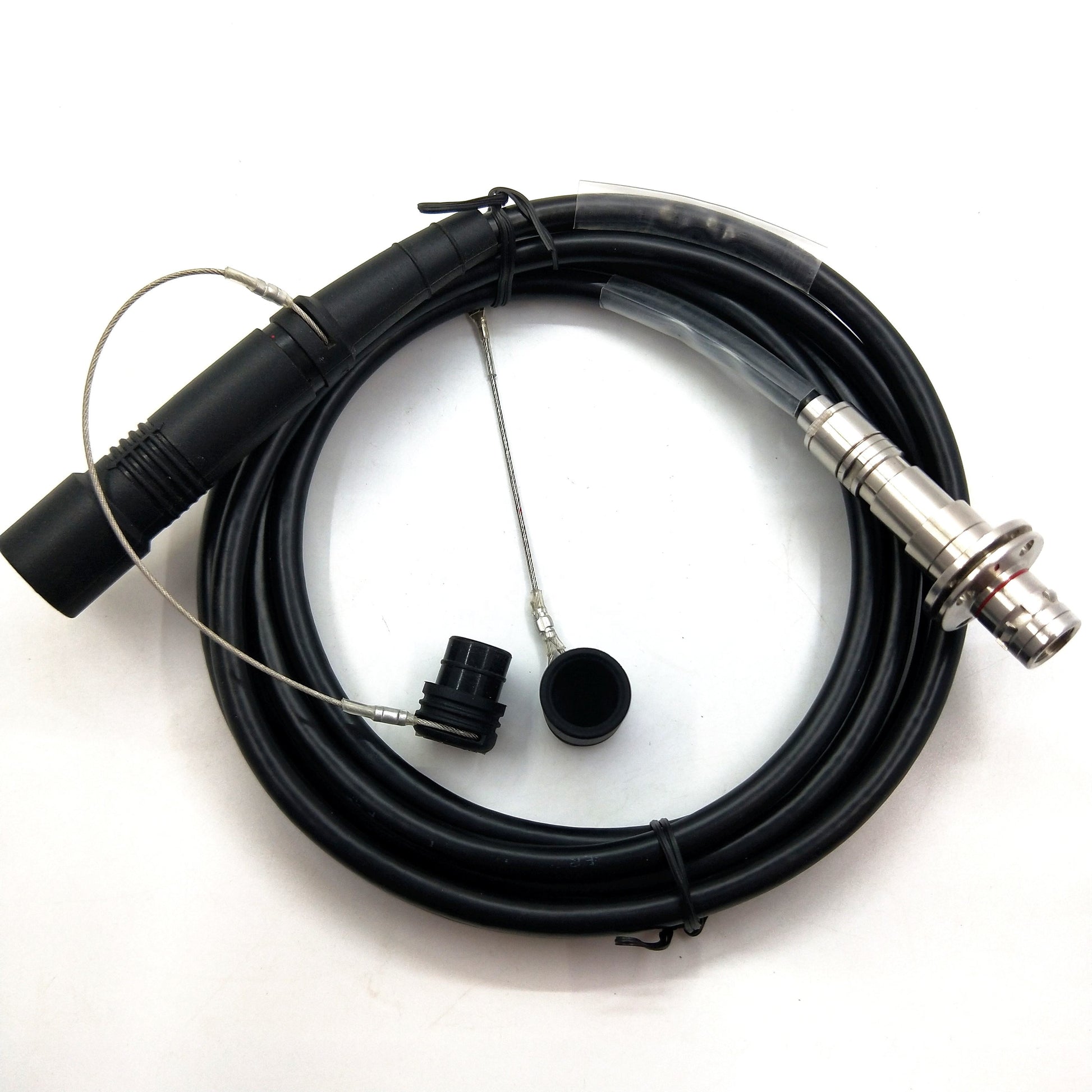

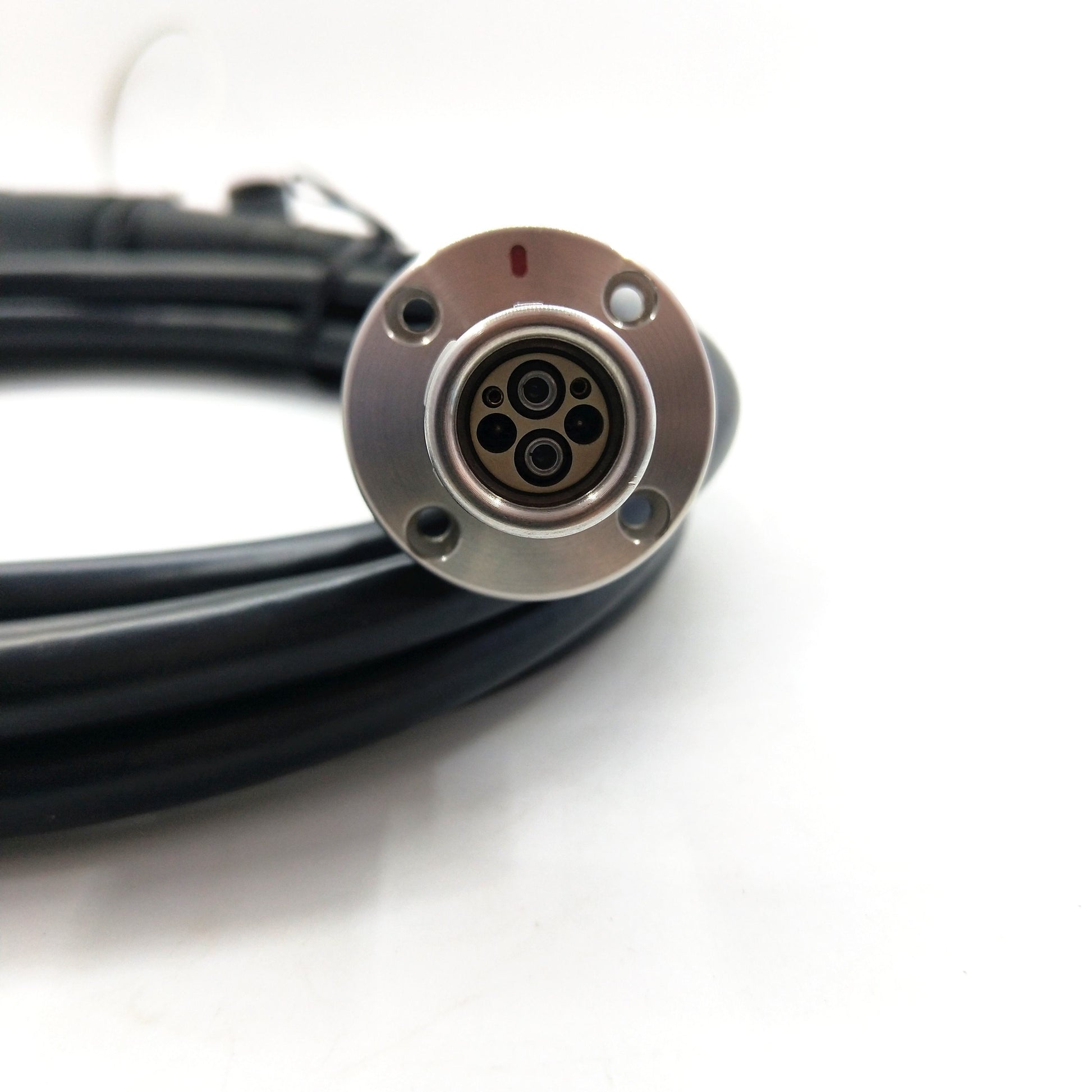

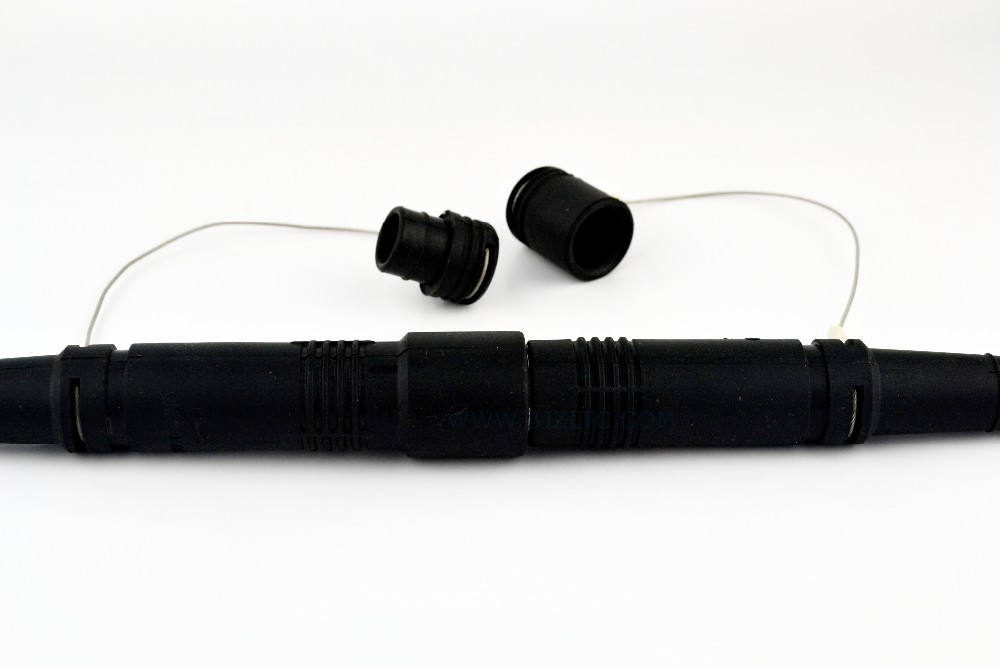

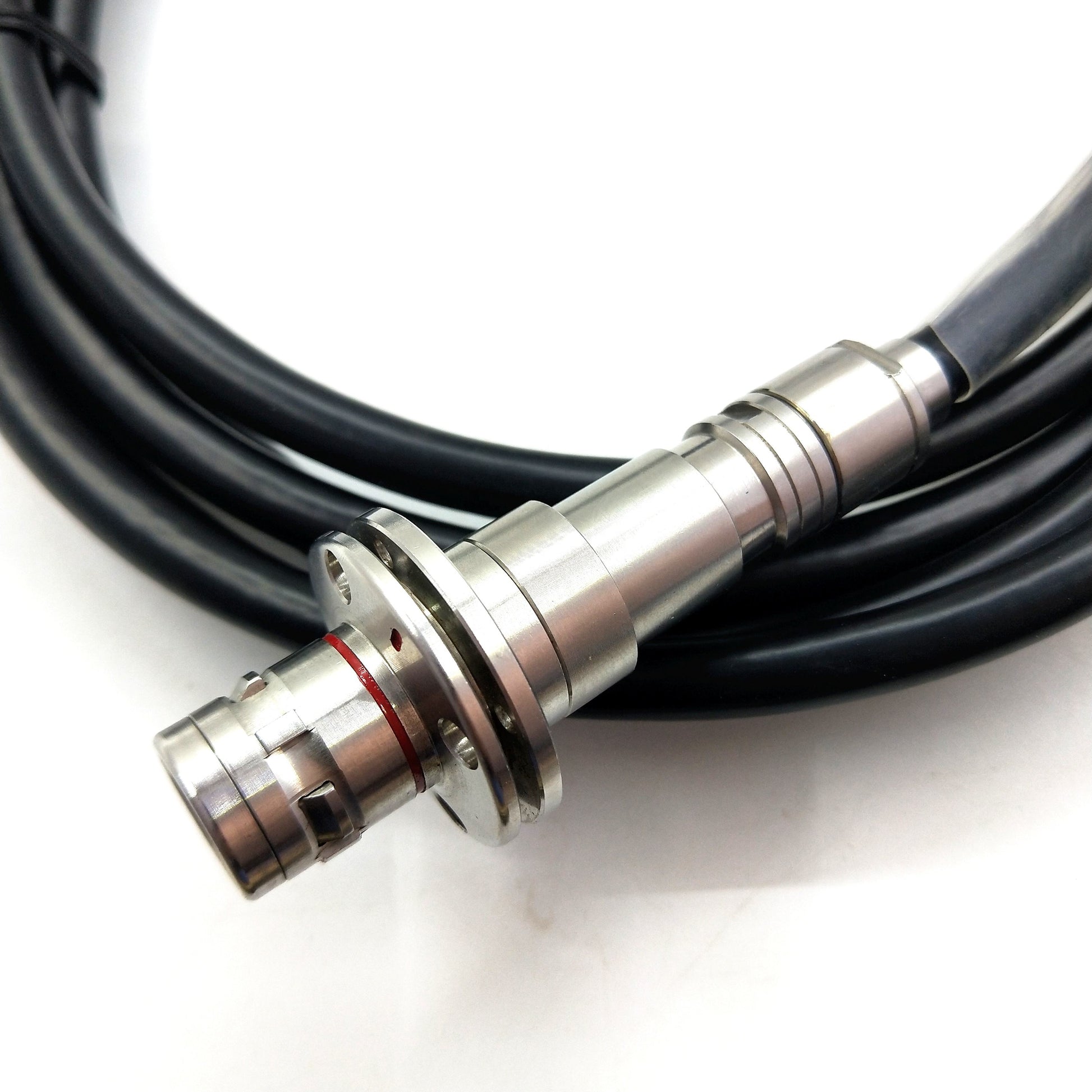

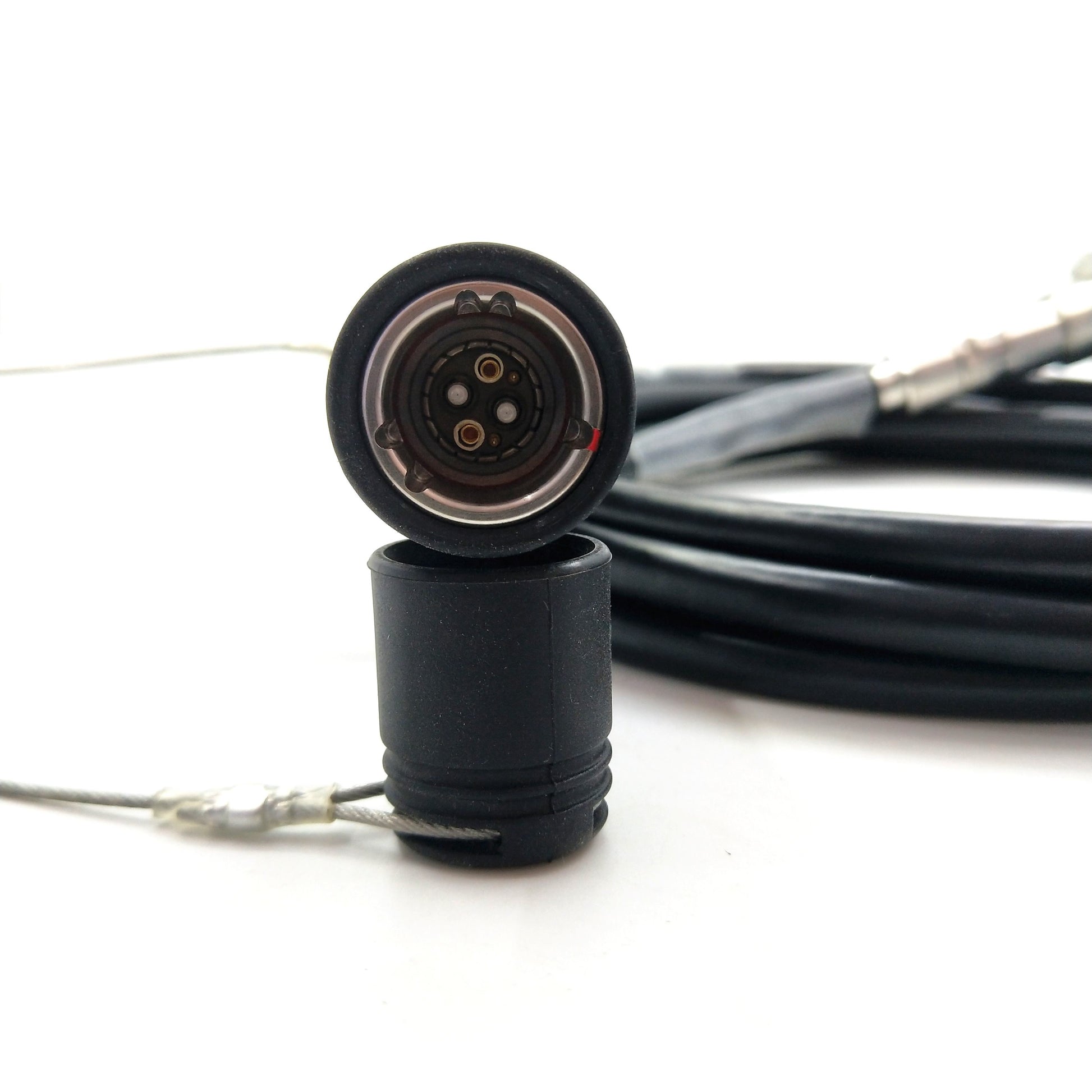

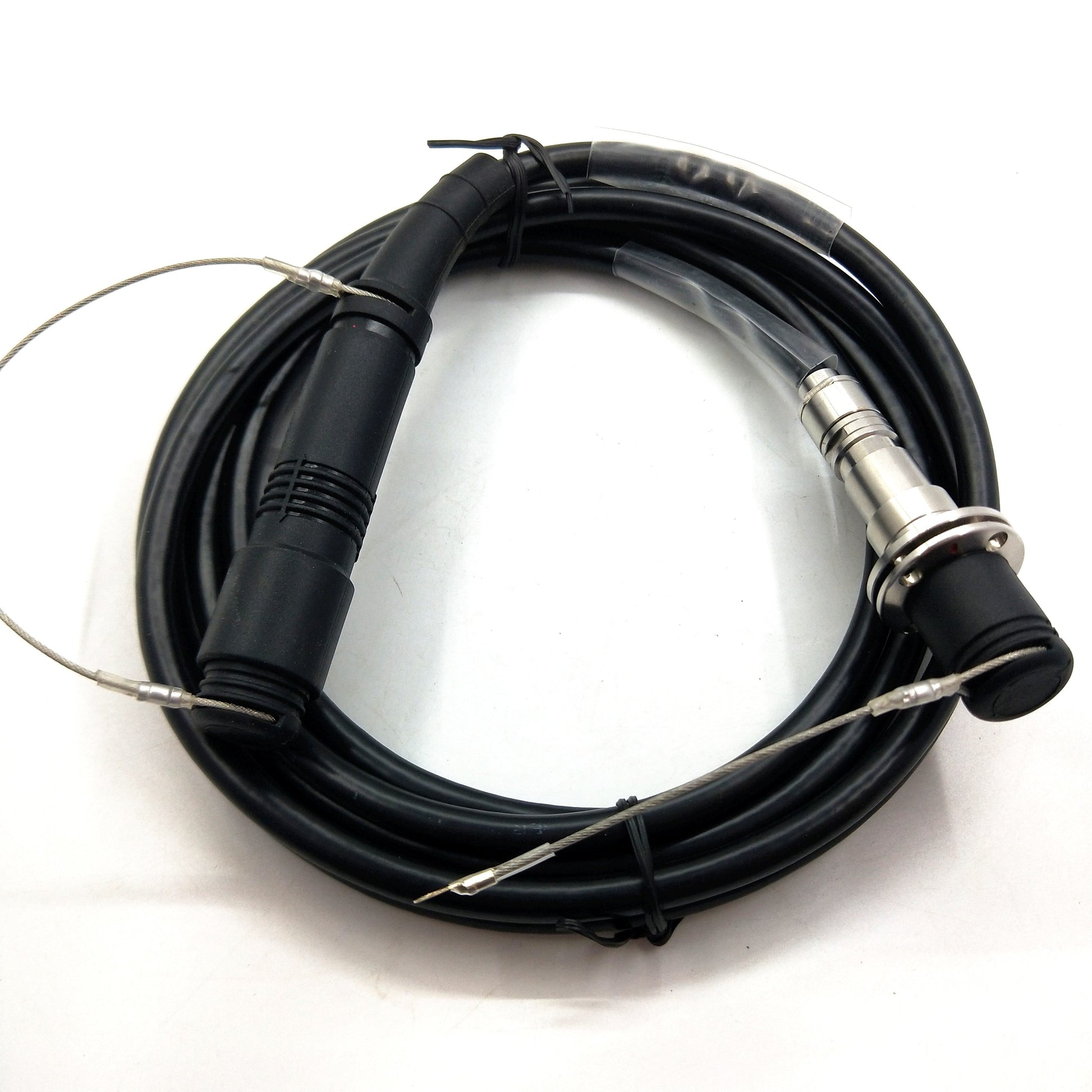

HDTV Broadcasting and Camera Cable Connectors FMW Plug PUW Socket

Key attributes

Type	Plug
Application	Audio & Video
Gender	Female

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Model Number	FMW-PUW
Material	Stainless Steel
Keywords	HDTV
Usage	Video Equipment
MOQ	2pcs
Market	Global
Warranty	1 Year
Packing	PE Bag + carton Box
Temperature Range	-40 ~+85

Packaging and delivery

Selling Units:	Single item
Single package size:	10X10X5 cm
Single gross weight:	1.000 kg

Product descriptions from the supplier

Features：

• Quick disconnect Push-Pull self-latching system
• Over 11 shells to meet various application needs
• Stainless steel shell for rugged and harsh environment
• Optional pre-terminated F2 contacts for simple and rapid field assembly
• UL certified connectors
• ARIB (BTA S-1005B), ANSI/SMPTE (304 and 311) and EBU (R100-1999) compatible

Applications：

• TV/HDTV Camera Systems
• Graphics Transmission Systems
• Outdoor or Indoor monitoring Systems
• LAN Systems
• Industrial Robotics

Connection Diagram

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
