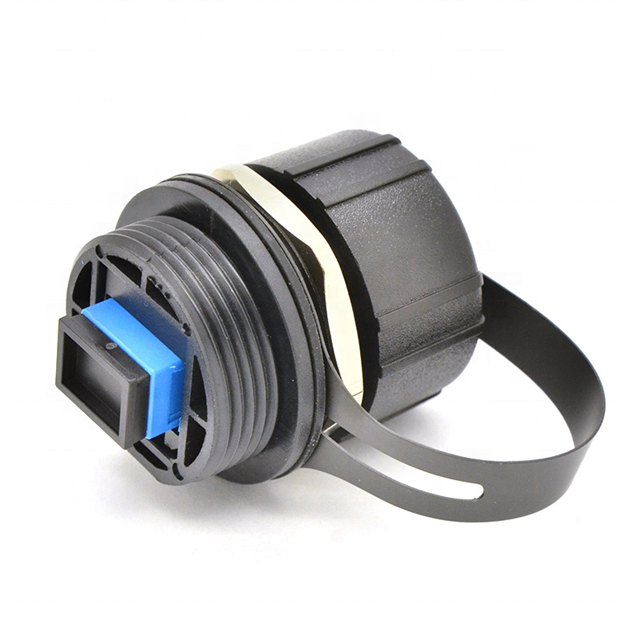

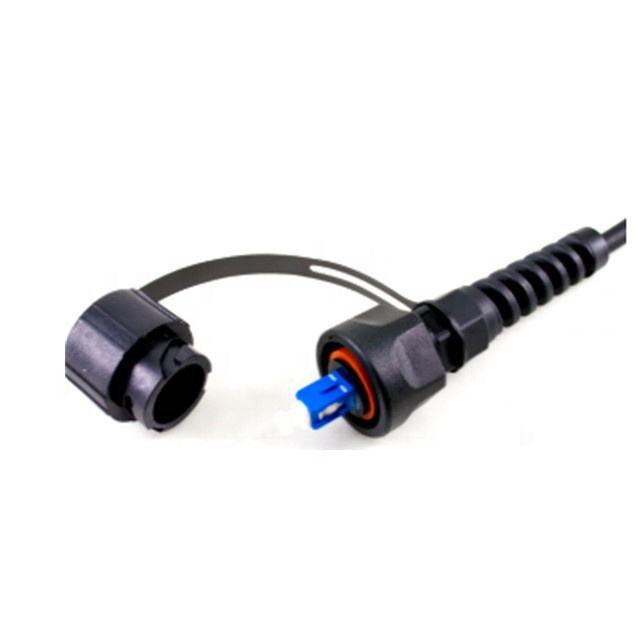

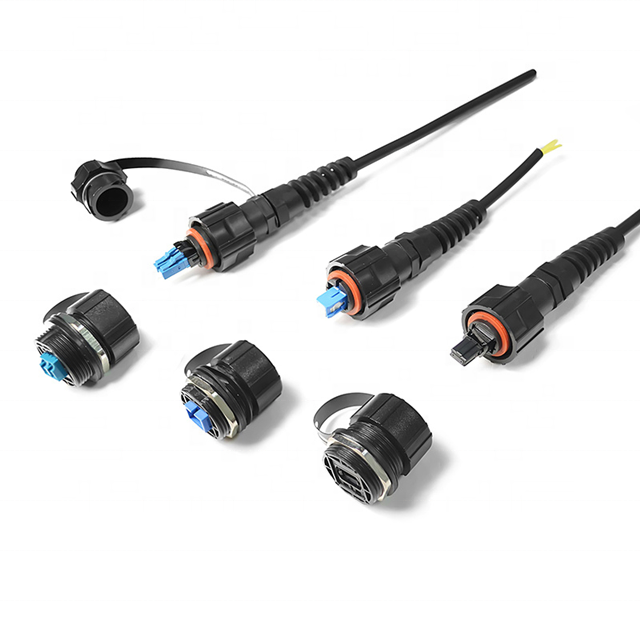

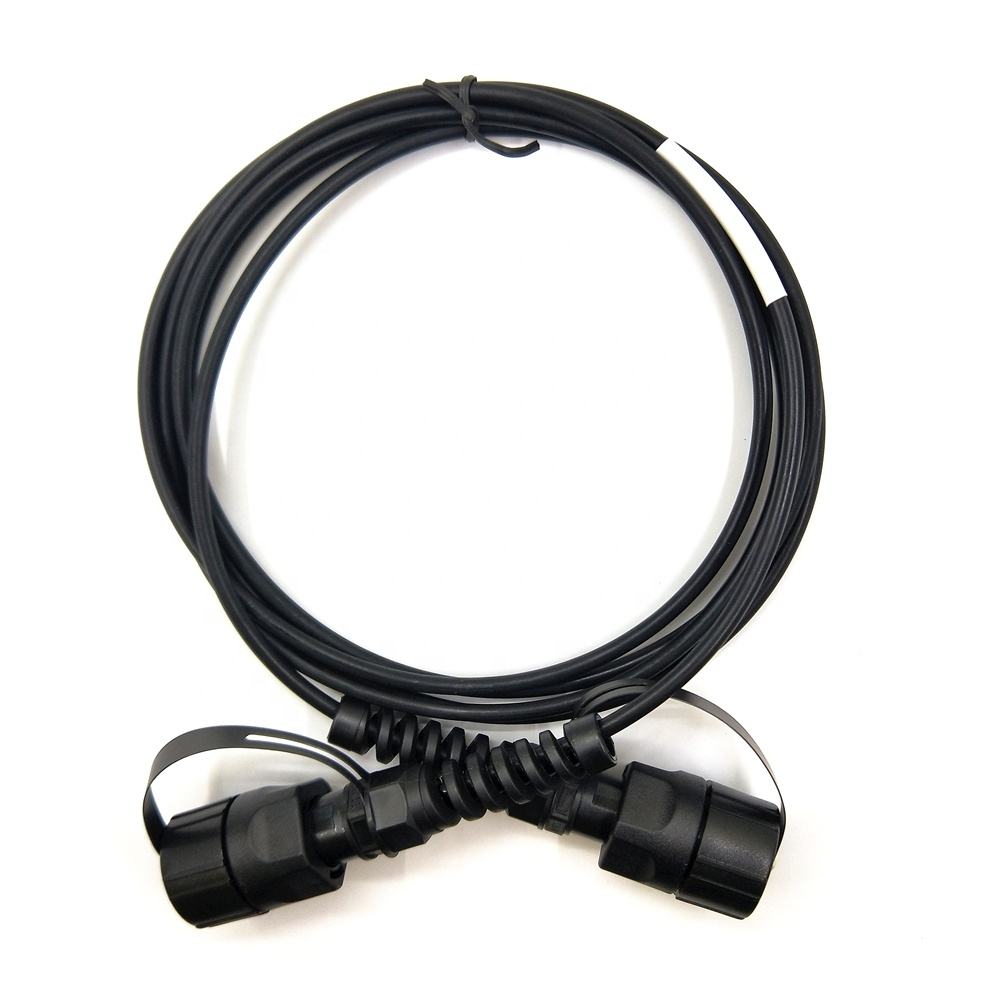

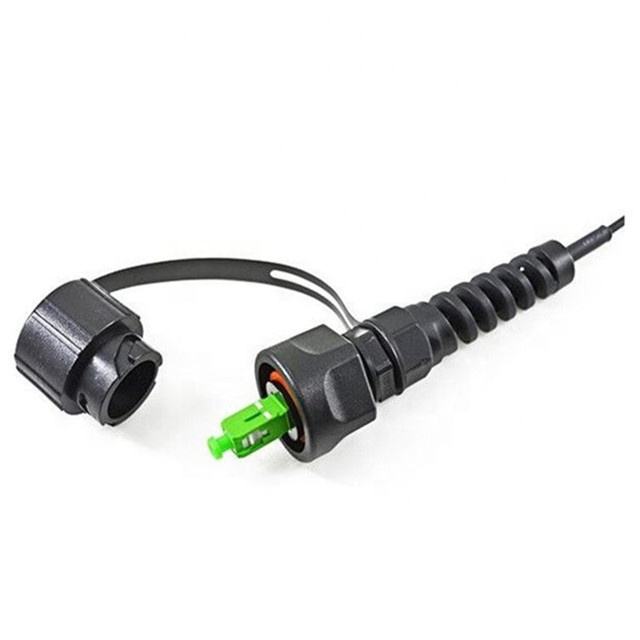

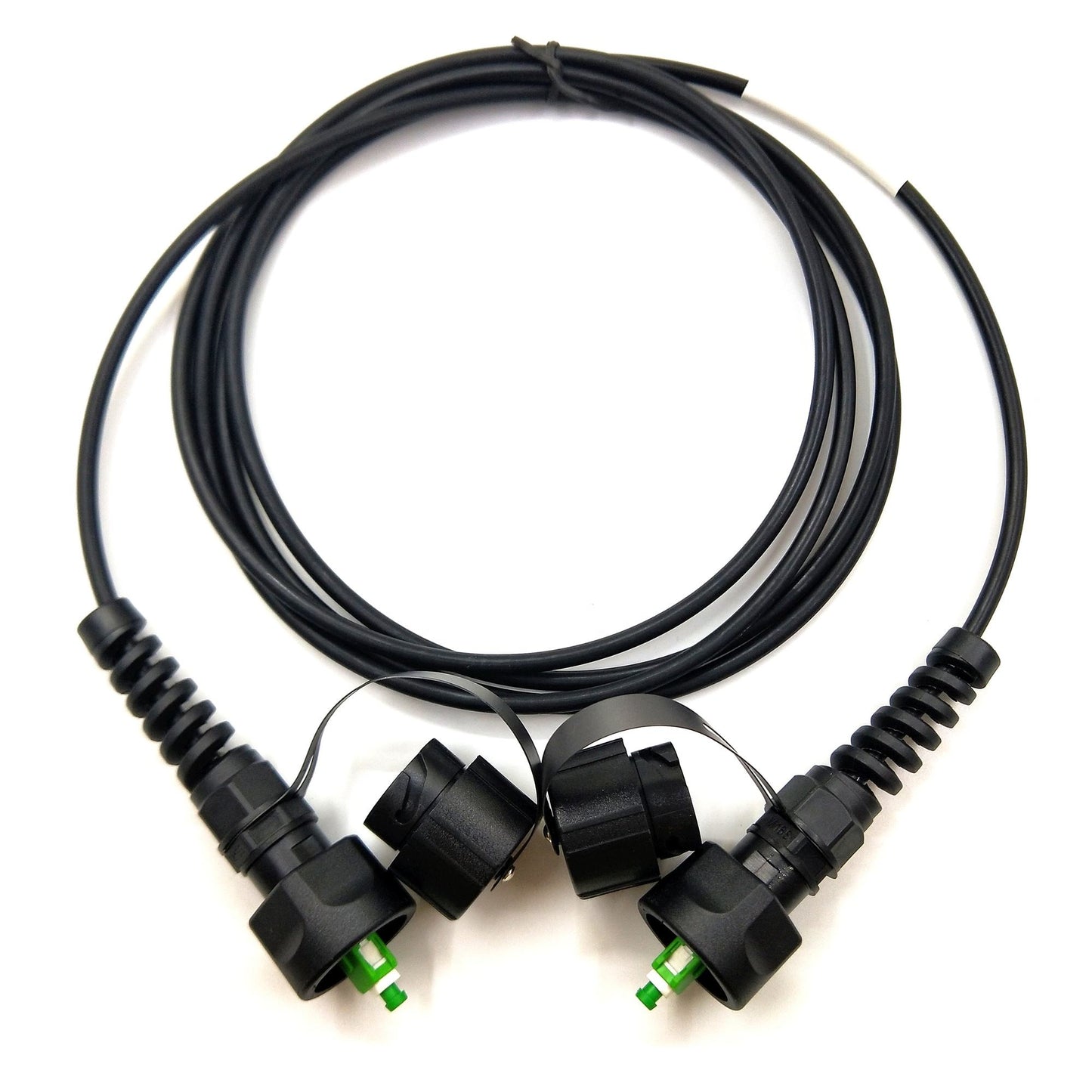

IP67 SC Outdoor Waterproof Multi-mode Tactical Fiber Cable Connector

Key attributes

Type	Adaptor
Application	Audio & Video
Gender	Other

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Model Number	IP67 SC
Contact Material	Copper
Housing Material	Stainless Steel
IP Level	IP67
Shape	Round
Keywords	IP67 SC
Color	Black
Material	plastic
MOQ	2pcs
Market	Global
Warranty	1 Year
Temperature Range	-40 ~+85
IP rating	IP67 Water Proof
Terms of trade	T/T

Packaging and delivery

Selling Units:

Single item

Product descriptions from the supplier

Product Details

Details:

ODVA harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Application:
Fiber-to-the-Antenna (FTTA)

Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE, etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

Automation and industrial cabling

ODVA provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.

Surveillance systems

Security camera manufacturers choose ODVA connectors for its compact size and robust design. ODVA assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Naval and ship building

The high corrosion resistance convinced both naval and civil ship builders to use ODVA assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

Broadcast

offers a range of mobile cabling systems and ODVA assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc. and for temporary connections in case of natural hazards.

Key Features

1. Robust fiber-optic connector for 12 channels with screwed mating mechanism

2. IP67 protection, salt-mist proof, and EMI protection

3. High shock, vibration, and mechanical resistance

4. Broad temperature range and wide range of indoor and outdoor cables

5. Easy, reliable and cost-effective installation

Optical performance

1. Insertion loss / IEC 61300-3-34

2. single mode typ. ≤ 0.2 dB 97% ≤ 0.45 dB

3. multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d

Return loss / IEC 61300-3-6 single mode ≥ 50 dB

• Outdoor harsh environment fiber optic communications using
• Outdoor communication device is connected

• communication devices

• Oil, mining communication connection
• The wireless Remote base station

• WiMAX and LTE Base Stations
• Remote Radio Heads (RRH) / Industrial outdoor applications

• Railway signal control using

• Intelligent substation station communication

Features：

• Thread the locking mechanism can ensure long-term reliable connection
• Guiding mechanism, you can use one hand blind plug, connection quickly and easily install

• Seal Design: waterproof, dustproof, anti-corrosion and other characteristics
• Compact, easy to operate, durable

• Wall seal design

• educe welding, can be plugged directly interconnected

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
