Medical Fiber Connectors QEB2G4D QEB06B 6cores Expanded Beam Fiber Connectors for Medical Equipment Field

Key attributes

Type	Connector
Gender	Other
Application	Power

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Model Number	QEB2G4D QEB06B
Material	Stainless Steel
MOQ	2pcs
Keywords	small fiber connector
Temperature Range	-40 ~+85
Package	PE Bag + Carton
Shipping by	Buyer's Choice
Warranty	1 Year
Payment	T/T

Packaging and delivery

Selling Units:	Single item
Single package size:	10X10X5 cm
Single gross weight:	1.000 kg

Product descriptions from the supplier

QEB Expanded beam Series Fiber optical connectors

The QEB expanded beam composite connector developed by our company adopts self-locking structure, which is efficient and convenient, and easy to operate
Optical fiber assembly part adopts collimating lens, compared with core to insert mode, collimating lens can effectively protect fiber end face.
Maintenance-free, pluggable life of more than 5000 times.

1. after the beam is expanded by the lens, the area is expanded nearly a hundred times, reducing the impact of dirt on product performance.
2. non-contact transmission of optical signal, reduce the wear of the end face due to vibration, insertion, etc., improve the service life of the product.
3. non-contact transmission of optical signals, lens end distance of 5mm can still maintain good optical signal transmission, improve the connection of the connector Reliability.
4. when the lens end face is dirty, just gently wipe the mirror can be restored to normal, simple cleaning.

QEB expanded beam PRODUCT PARAMETER

Parameter	Index Requirement
Insertion Loss	≤1.0dB@850nm
Mechanical life	5000times
Working temperature	-40℃~+80℃
Waterproof Level	IP67
Maintenance force of optical cable components	≥500N

QEB expanded beam series Products connecting ways

QEB 04 PLUG AND SOCKET

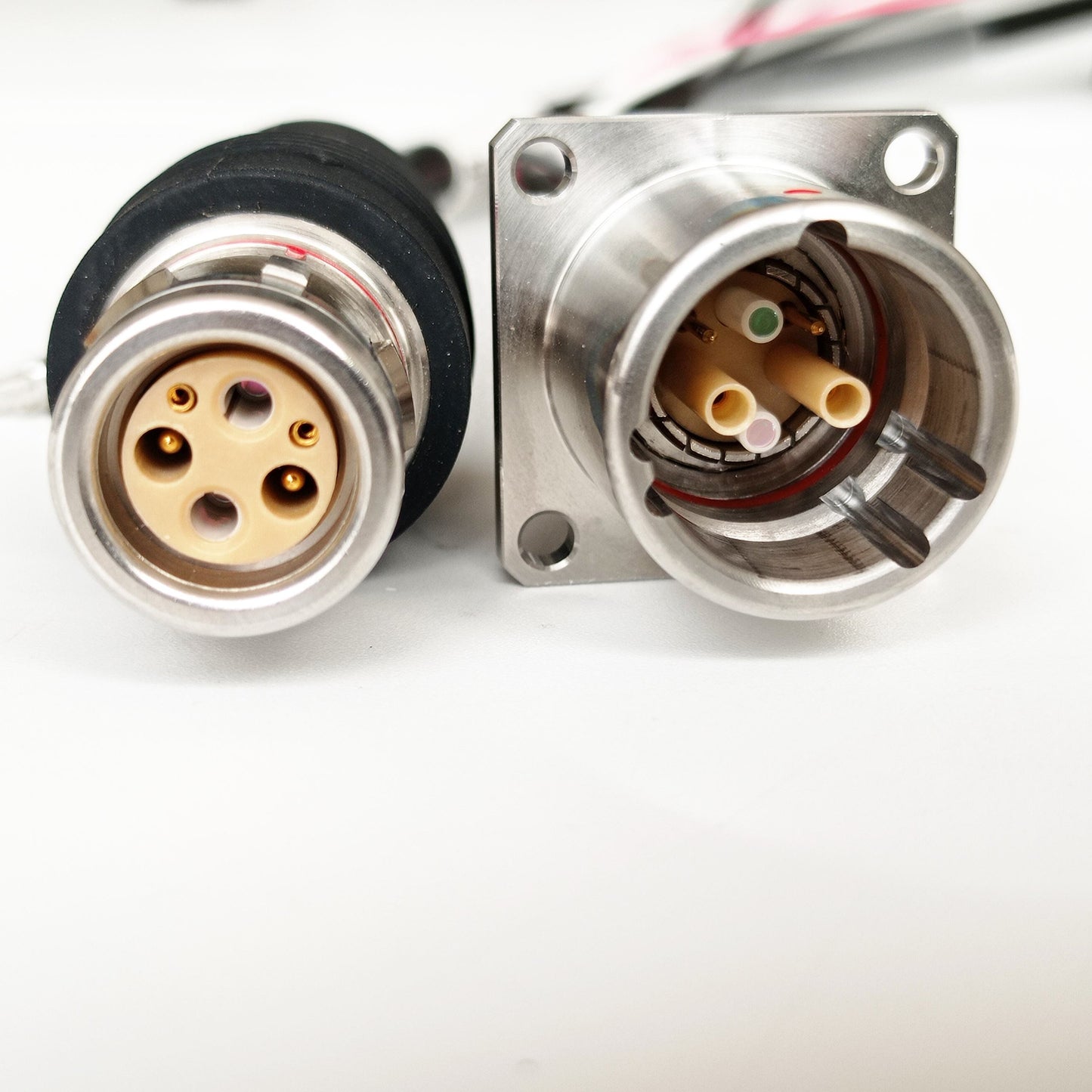

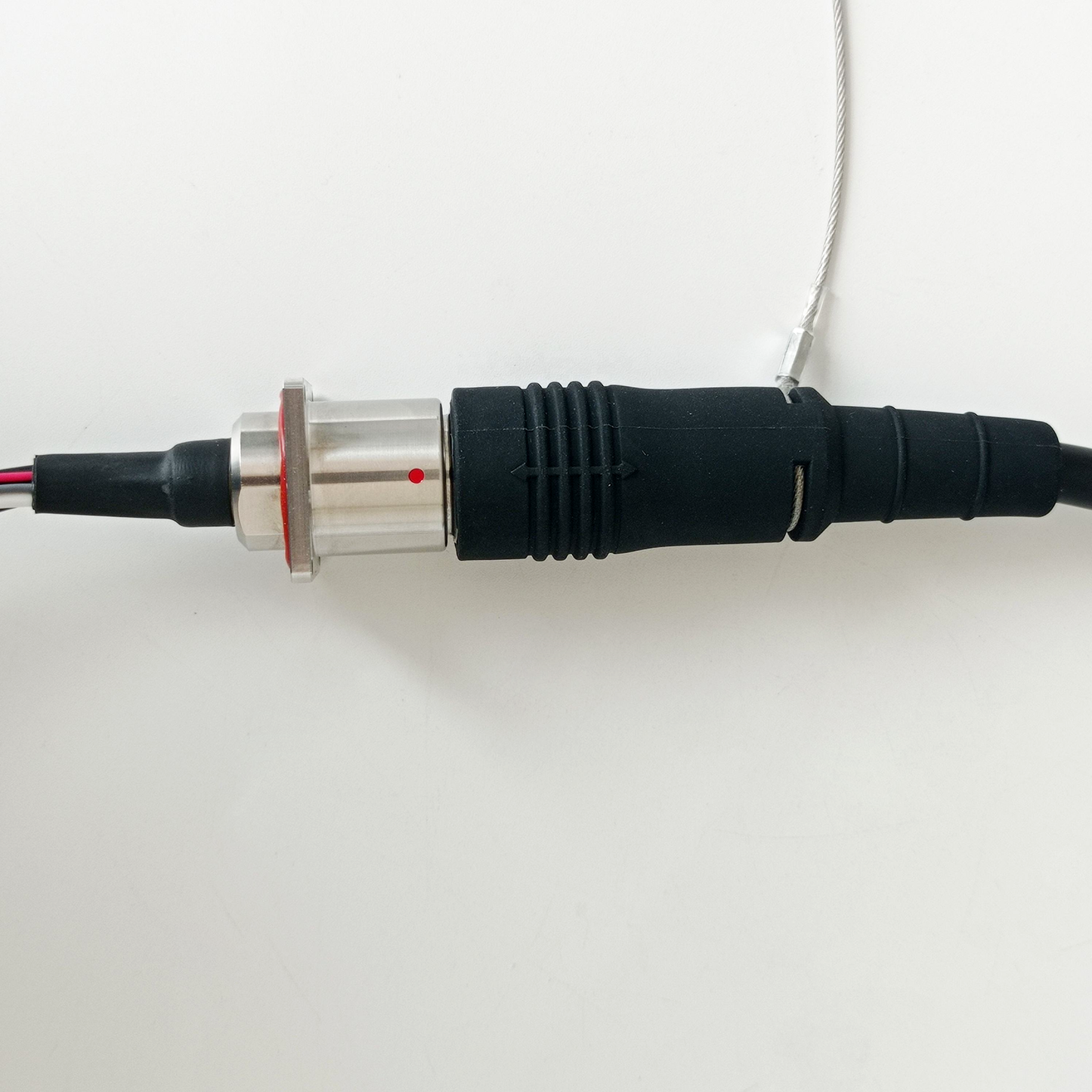

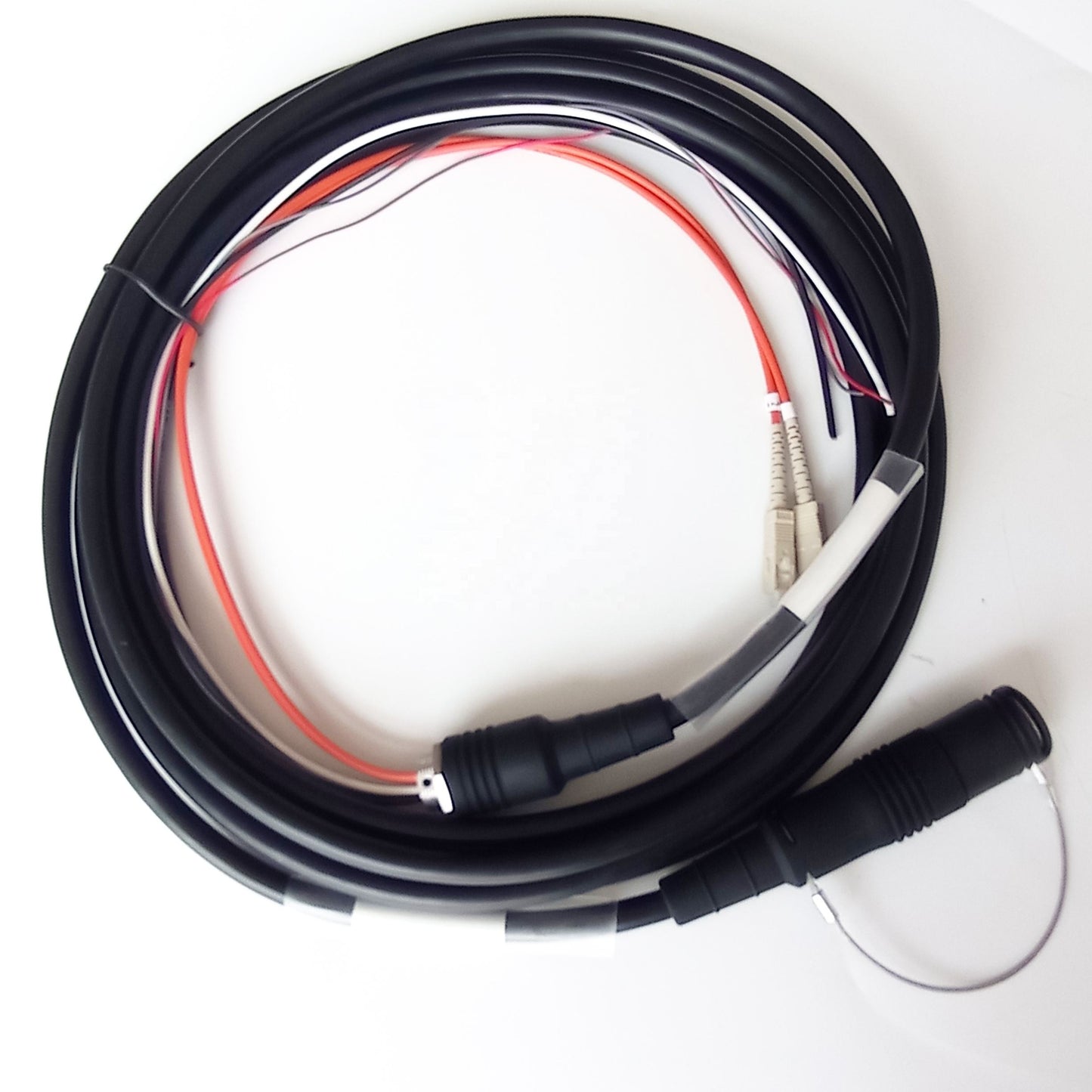

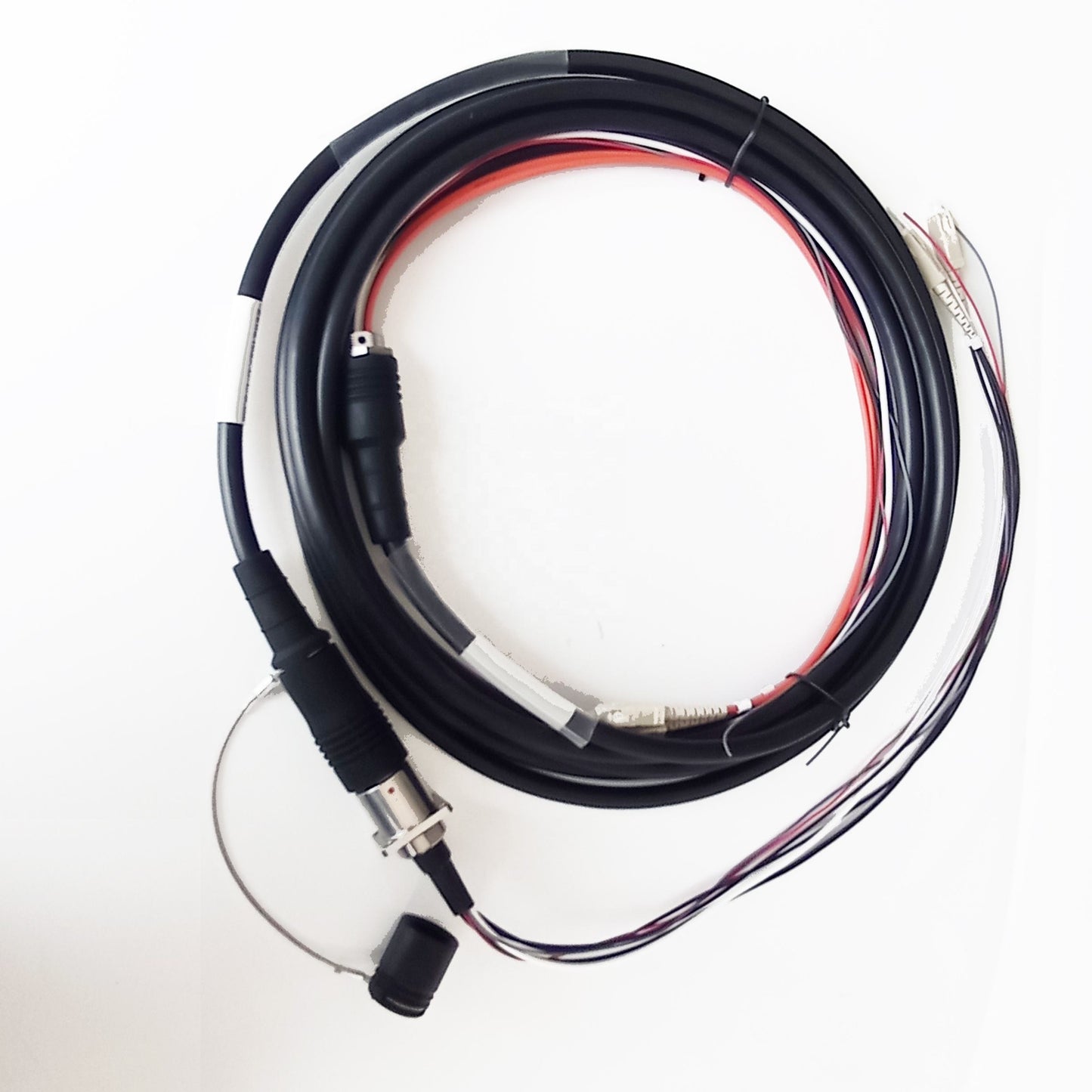

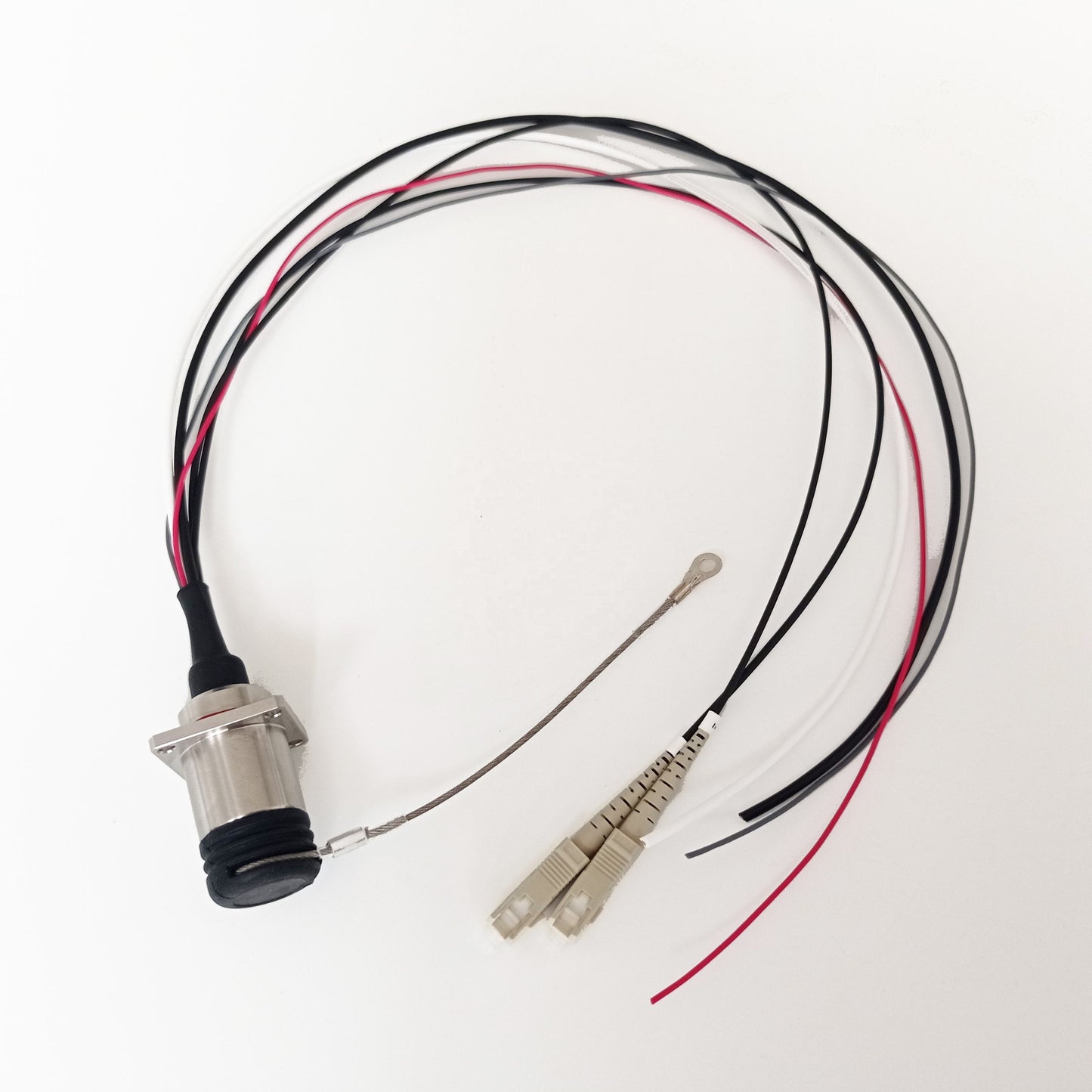

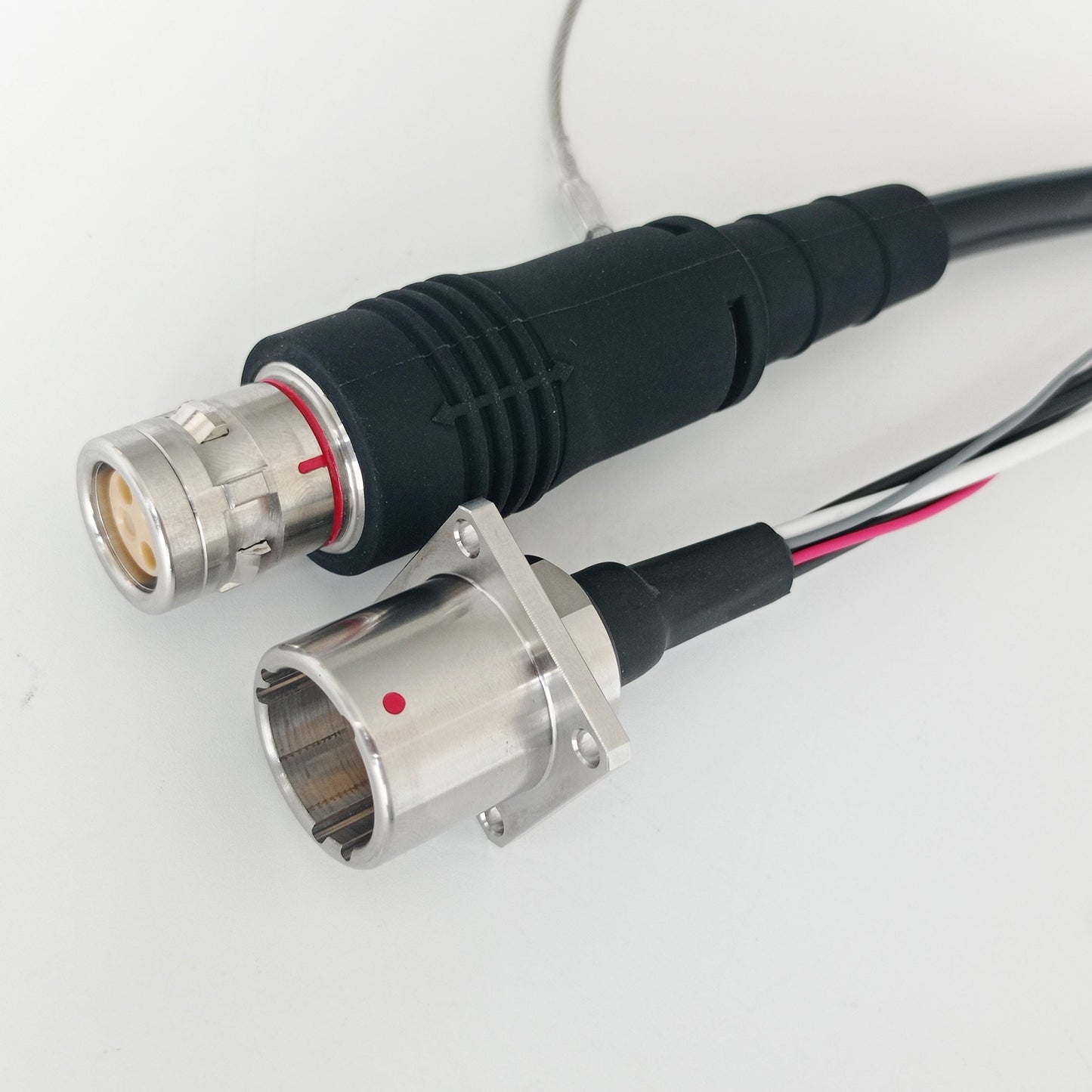

QEB 2G2D/QEB04B PLUG AND SOCKETQEB 2G4D /QEB06B PLUG AND SOCKETQEB Plug and Socket Connecting Products DetailsQEB Series Connectors Assamblies Show

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
