Self-latching Connector SMPTE Hybrid Fiber Cable Socket Assembly EDW FXW with LC/FC/SC/ST Connector

Key attributes

Type	Connector
Application	Audio & Video
Gender	Other

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Model Number	EDW-SC
Contact Material	Copper
Housing Material	Stainless Steel
IP Level	IP67
Shape	Round
Material	Stainless Steel
MOQ	2pcs
Usage	Video Equipment
Connector	3K 93C
Standard	SMPTE304, 311M/ARIB/EBU
Packing	Plastic Bag + Carton
Temperature Range	-40 ~+85
Mechanism	push-pull self-latching
Industry	HDTV & Media

Packaging and delivery

Selling Units:	Single item
Single package size:	10X10X5 cm
Single gross weight:	1.000 kg

Product descriptions from the supplier

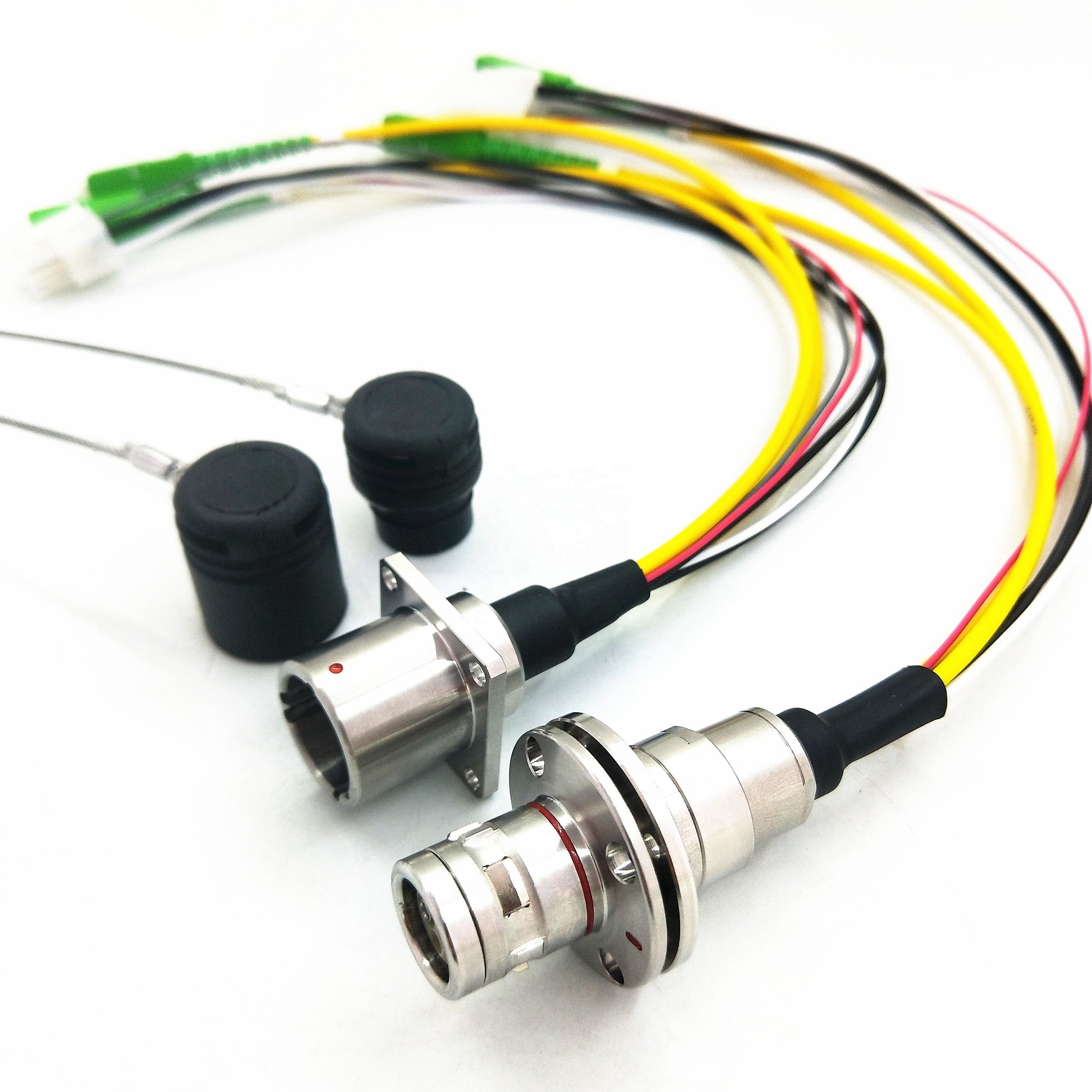

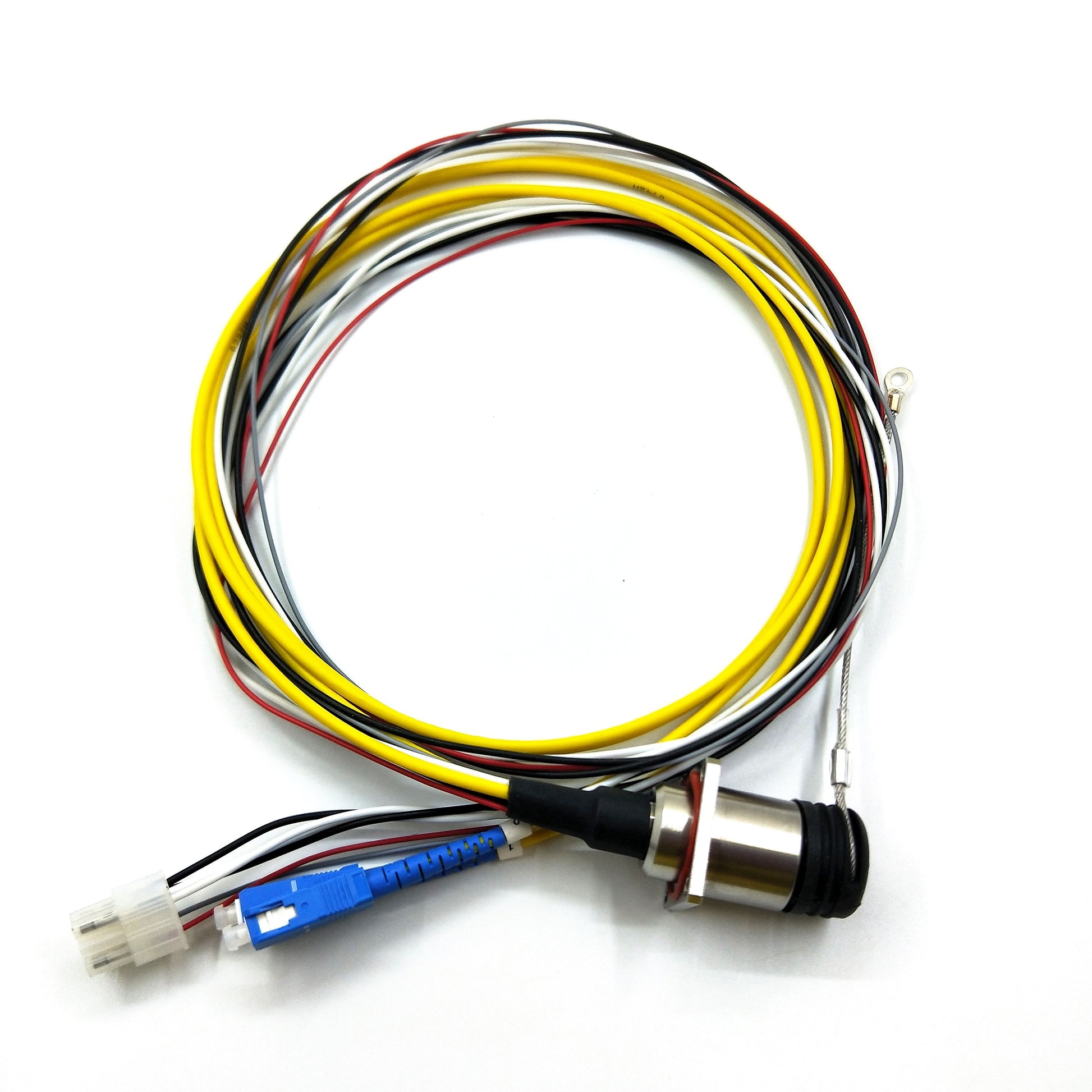

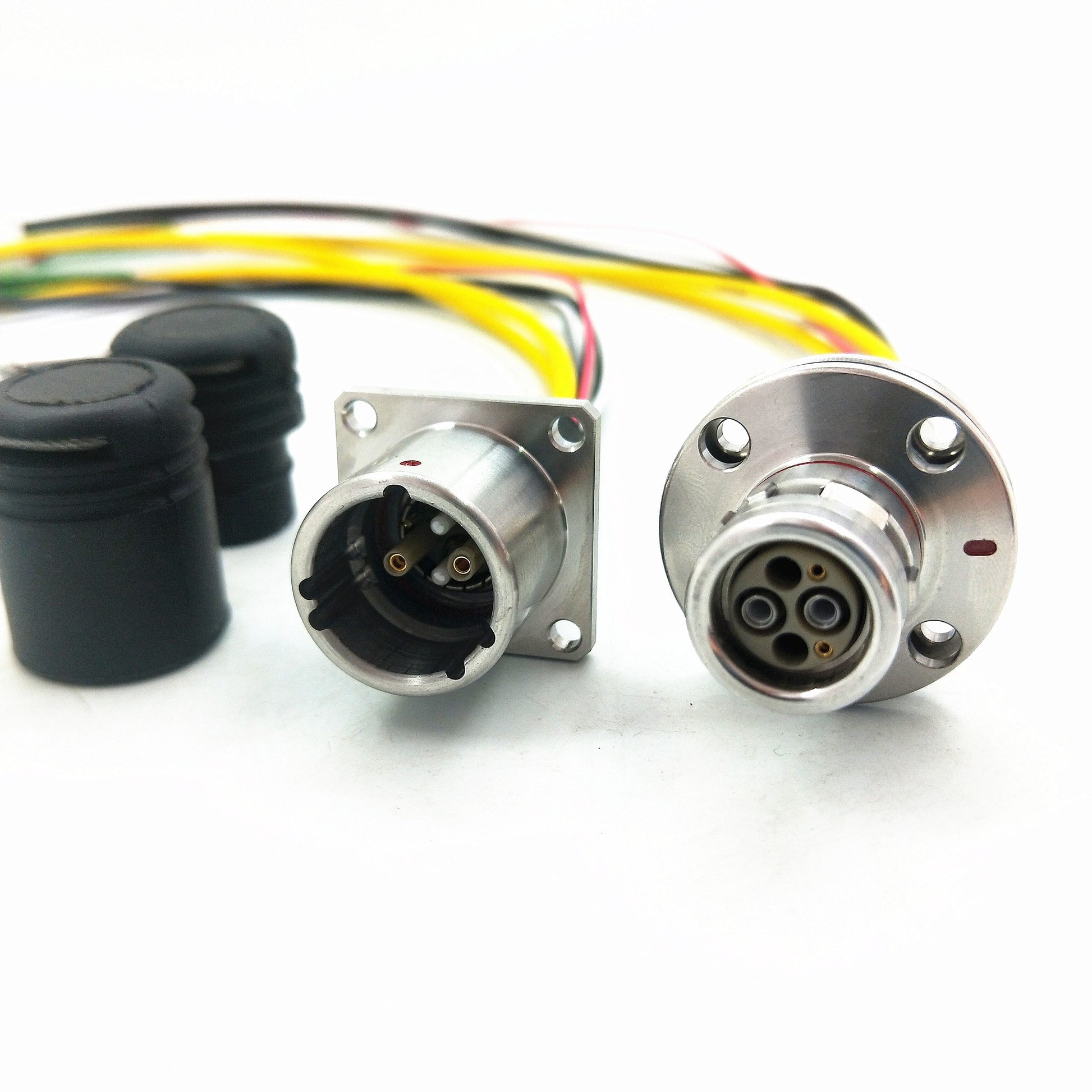

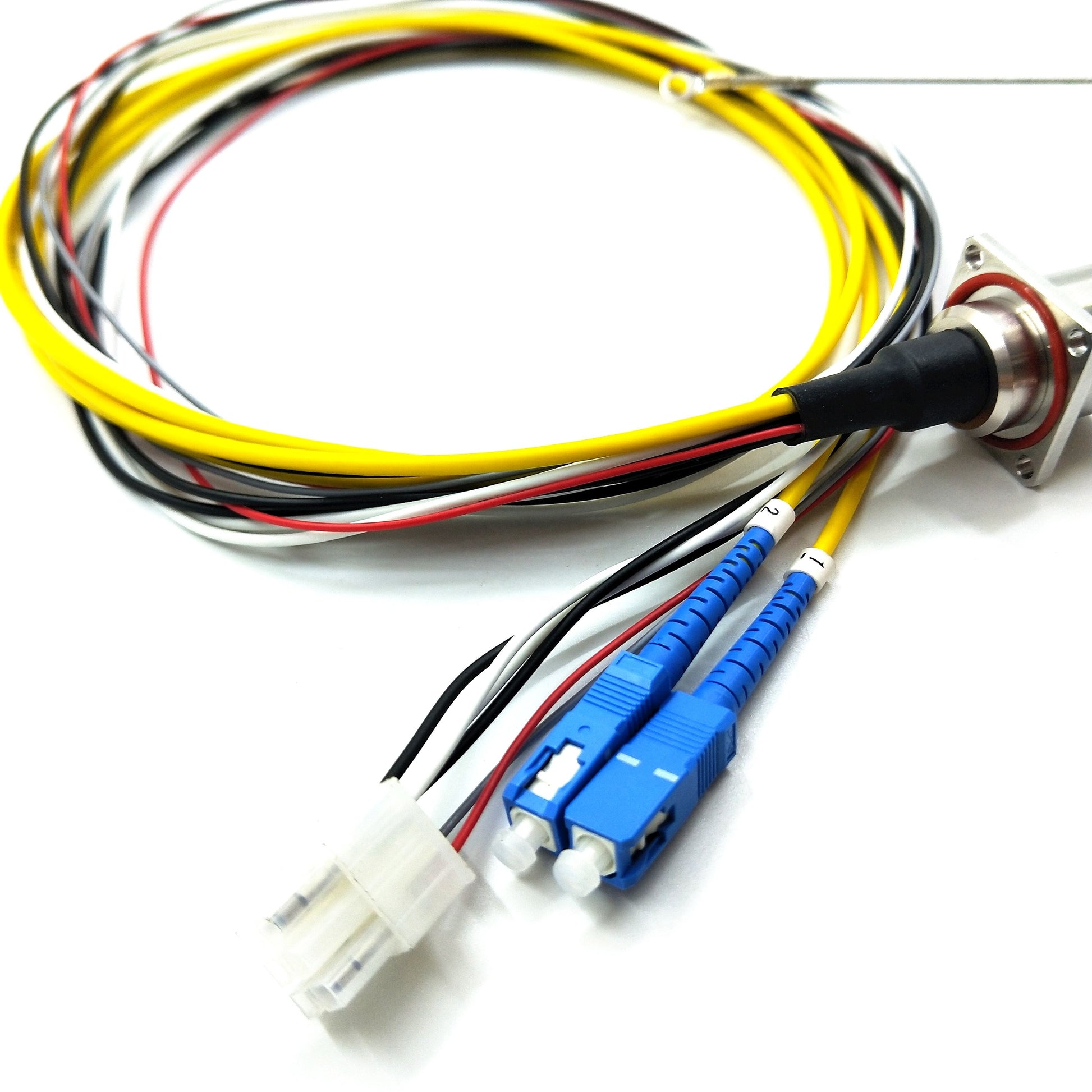

Details Images

Features：

• Quick-connect plug-and -pull self-locking system with insertion loss ≤0.1dB
• Two-way fiber, two-way power supply and two-pin signal core configuration
• Stainless steel casing is suitable for various 20,000 times of insertion and removal, especially in harsh environments
• It can withstand 1.5M water depth immersion after connection
• Fiber core cleaning is simple and convenient
• High and low temperature resistance, working temperature range -40℃ to 80℃
• Optional pre-terminated F2 fiber ferrule, quick and easy on-site installation.
• Comply with SMPTE, ARIB & EBU Standard

Applications：

• DTV/HDTV Camera Systems
• Graphics Transmission Systems
• Outdoor or Indoor monitoring Systems
• LAN Systems
• Industrial Robotics

Keywords:

Connection Diagram

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
