YZCEB Expanded Beam Fiber Cable Connector Outdoor Using Cable Assemblies

Key attributes

Type	Connector
Application	Automotive
Gender	Female

Other attributes

Place of Origin	Cheng Du, China
Brand Name	F-tone Networks
Keywords	Expanded Beam
Model Number	YZCEB04P
Housing Material	Stainless Steel
Shell material	chemical blackening of aluminum alloys
Shape	Round
Market	Global
MOQ	2pcs
Shipping by	Express Delivery
Usage	Cable Connecting
Temperature Range	-40~+85
Warranty	1 Year
Terms of trade	T/T
Packing	PE Bag + Carton

Packaging and delivery

Selling Units:	Single item
Single package size:	10X10X5 cm
Single gross weight:	1.000 kg

Product descriptions from the supplier

Product Introduction

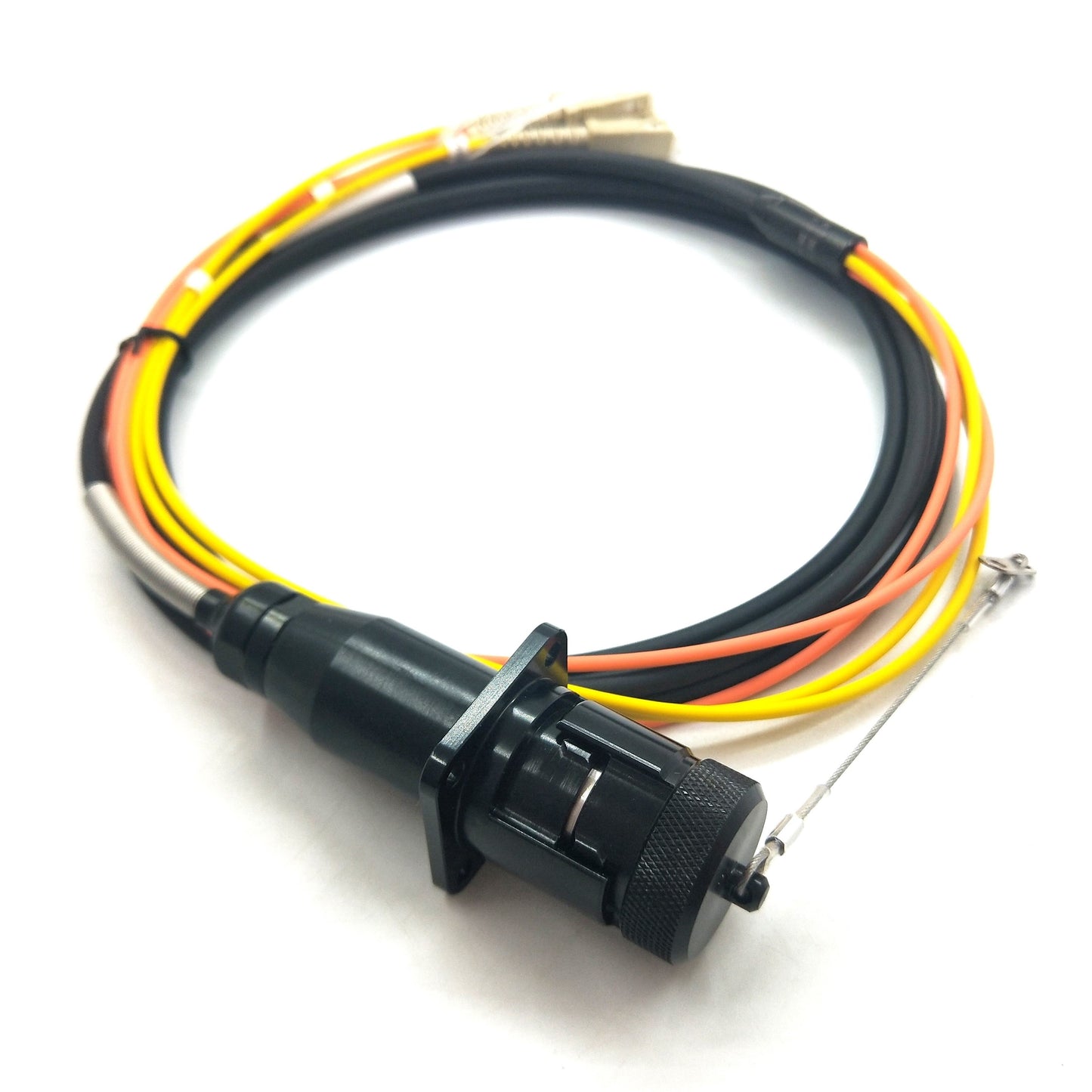

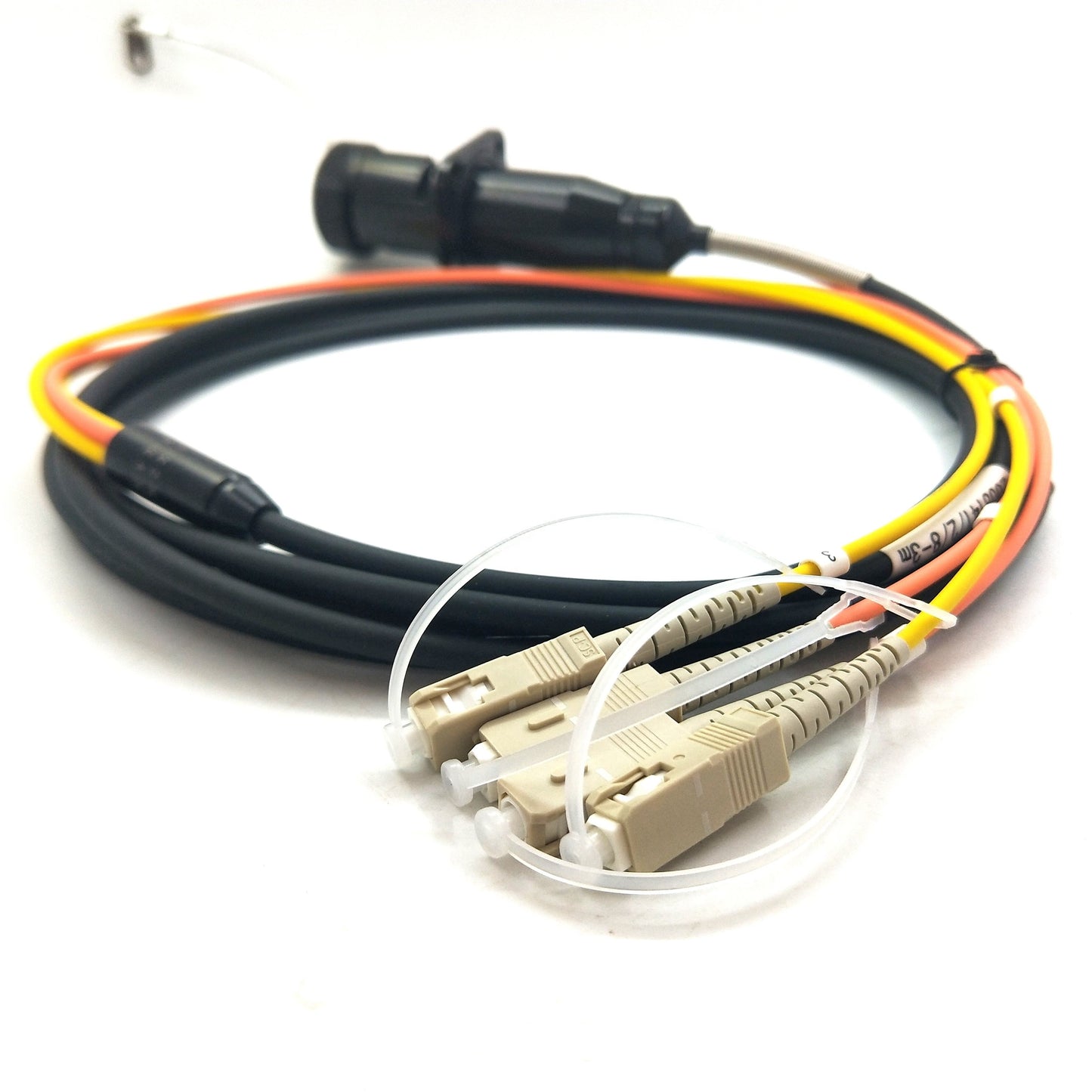

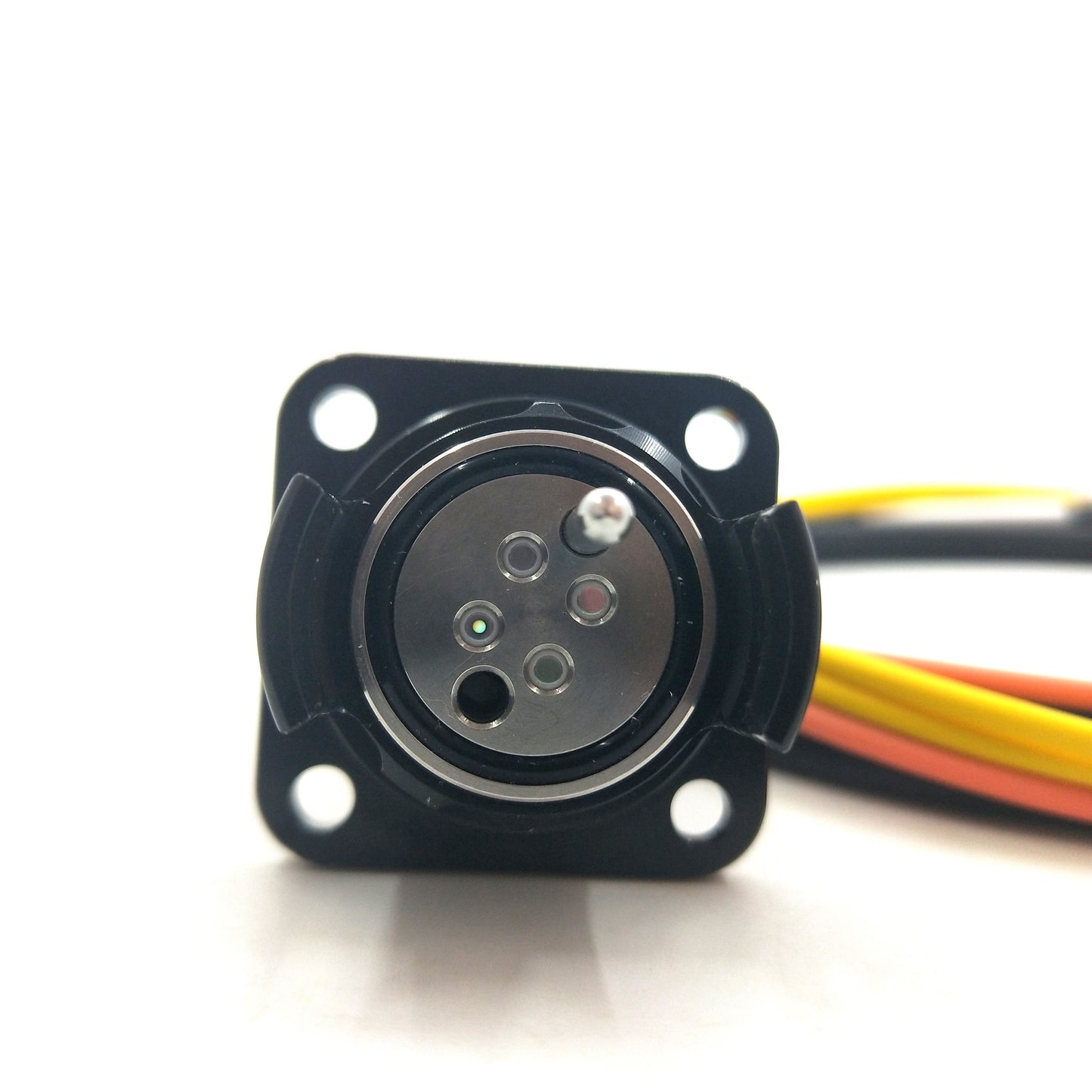

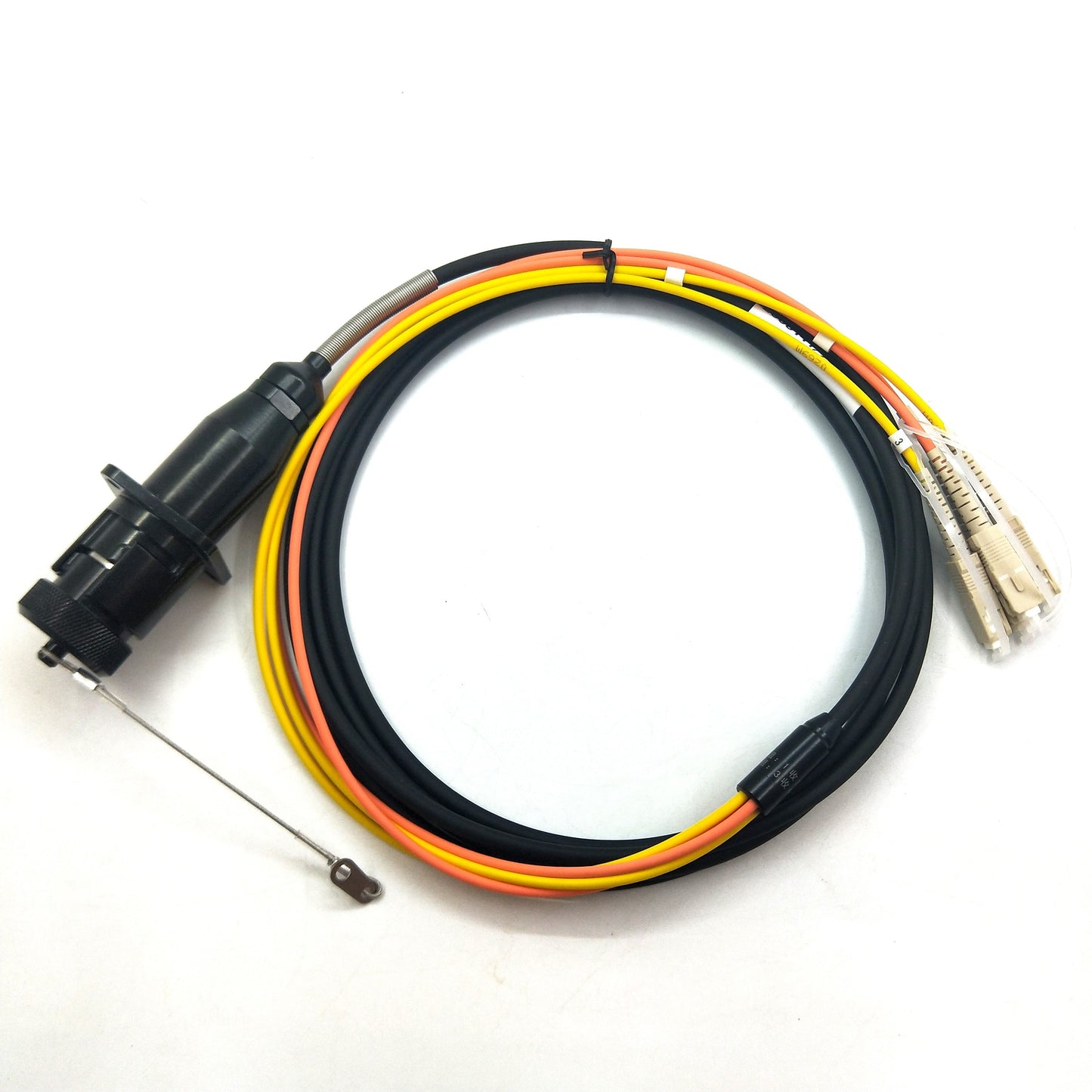

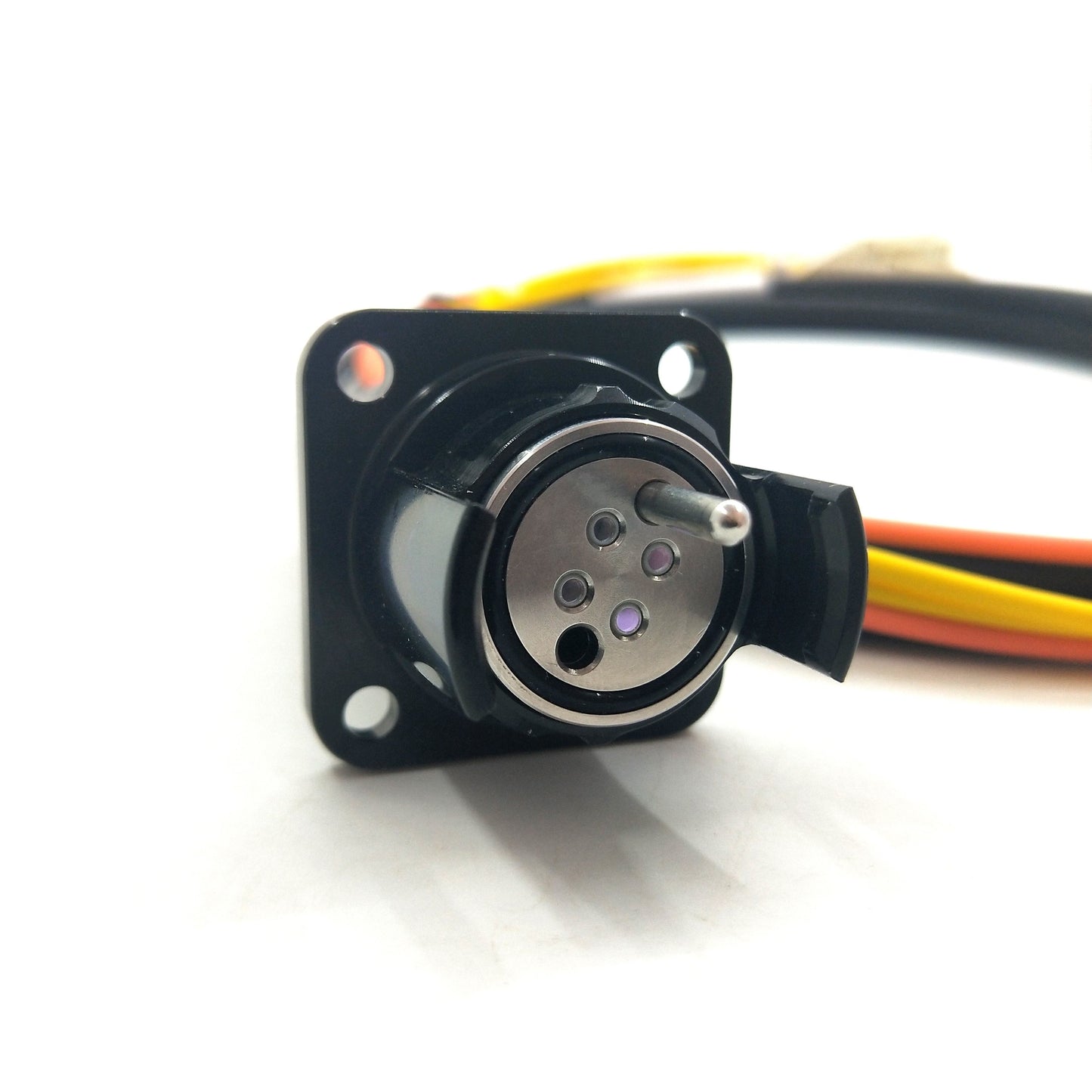

YZCEB Expanded Beam Cable Connector (Hermaphroditic)

YZCEB Expanded Beam Connector designed for harsh environment. After the fiber is expanded by the lens, the optical transmission area is expanded by nearly 100 times. Even if it is seriously dirty, it can be used simply by wipping it. No needs professional maintenance, truly maintenance-free, also greatly provides product transmission reliability. Neutral bayonet locking structure for fastly connection. With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dust-proof, resistance to harsh environments, etc., product specifications are: 2 cores and 4 cores.

Product Details

Features

• Wiring compact all-dielectric structure, the inner sleeve is φ0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
•  High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
• A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
• Large-area of aramid reinforced fiber optic cable to provide a high mechanical strength;
• Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;

• Environmental friendly, Comply with RoHS.

Applications

• Data transmission and industrial automation and control bus system
• Intelligent systems and industrial robot servo system
• Communication switching system
• Digital multimedia systems
• Medical sensing system
• Power systems
• Coal, oil, natural gas, etc.
• Geological exploration Communications
• Broadcast television,
• Emergency reopened optical fiber communication

Details Images

Product Parameters

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
