YZE Expanded Beam Series Fiber Connectors YZE02P YZE02S Fiber Optical Connector Assemblies
YZE Expanded Beam Series Fiber Connectors YZE02P YZE02S Fiber Optical Connector Assemblies
Regular price
$0.00
Regular price
Sale price
$0.00
YZE Expanded Beam Series Fiber Connectors YZE02P YZE02S Fiber Optical Connector Assemblies
Key attributes
| Type | Connector |
| Application | Power |
| Gender | Other |
Other attributes
| Place of Origin | Cheng Du, China |
| Brand Name | F-tone Networks |
| Model Number | YZE02P YZE02S |
| Keywords | small fiber connector |
| Material | Aluminium oxide black |
| Market | Global |
| MOQ | 2pcs |
| Shipping by | Express Delivery |
| Temperature Range | -40~+80 |
| Warranty | 1 Year |
| Packing | PE Bag + Carton |
| Payment | T/T |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 10X10X5 cm |
| Single gross weight: | 1.000 kg |
Product descriptions from the supplier
YZE expanded beam Series Fiber optical connectors
Neutral bayonet connection structure, fast connection, easy to use The guide column is used to realize precise docking, and the optical fiber contact is beam-expanded (collimating lens). The beam-expanded type has outstanding dust-proof performance.
It has the characteristics of low insertion loss, tensile resistance, moisture resistance, salt spray resistance and mildew resistance Field cleaning to ensure low loss repeated connections.
YZE currently has 2 cores
The products are suitable for field data transmission command system, shipboard communication system, aerospace communication system and other equipment.
YZE expanded beam PRODUCT PARAMETER
| Parameter | Index Requirement |
| Insertion Loss |
Single mode≤1.0dB
|
| Working temperature |
-40℃~+85℃
|
| Vibration |
10Hz～55Hz,0.75mm;55Hz～500Hz,98m/s²
|
| Mechanical life |
1000times
|
| Maintenance force of optical cable components |
≥500N
|
YZE expanded beam series Products connecting ways
YZE Plug
YZE Socket
YZE PLUG AND PLUG Connecting

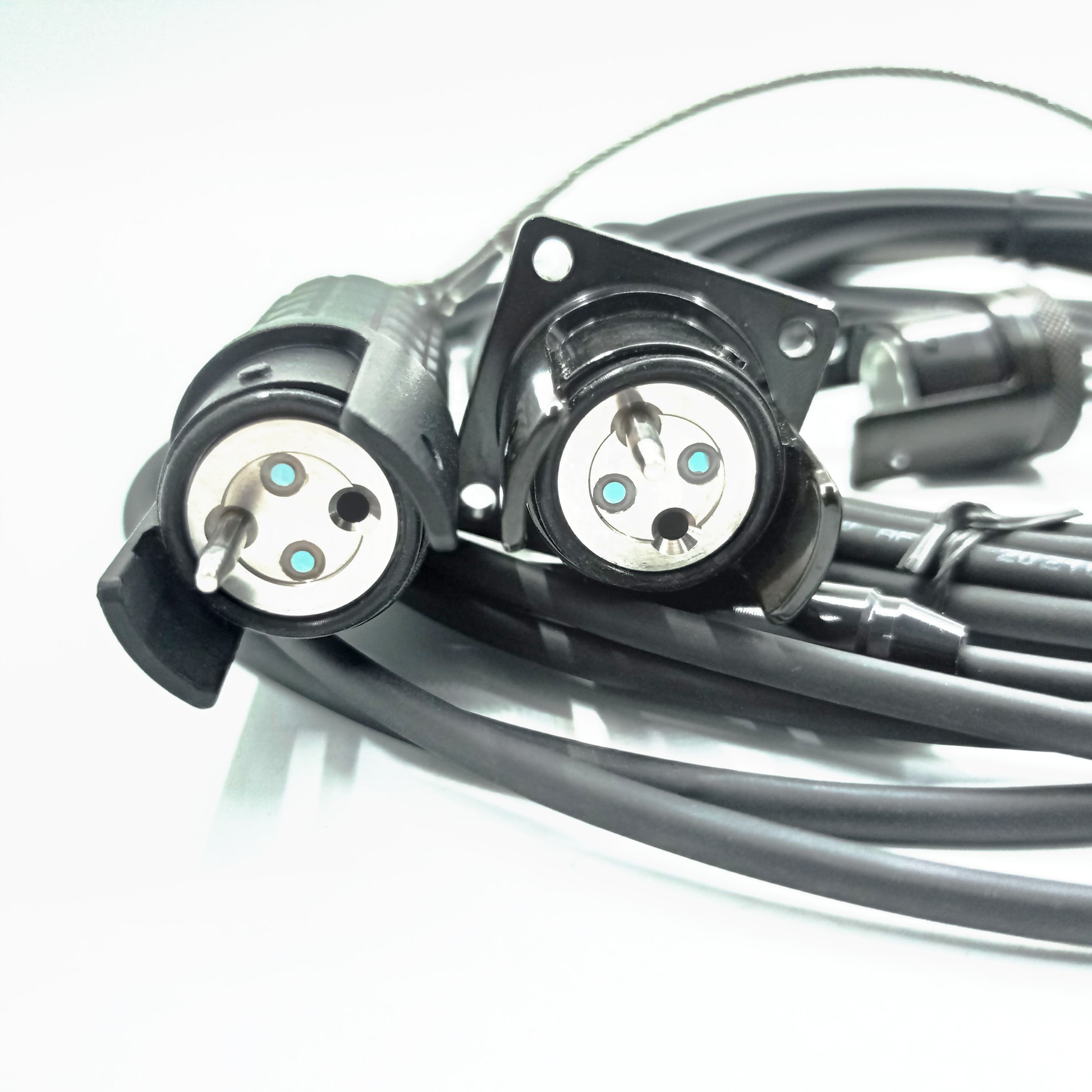

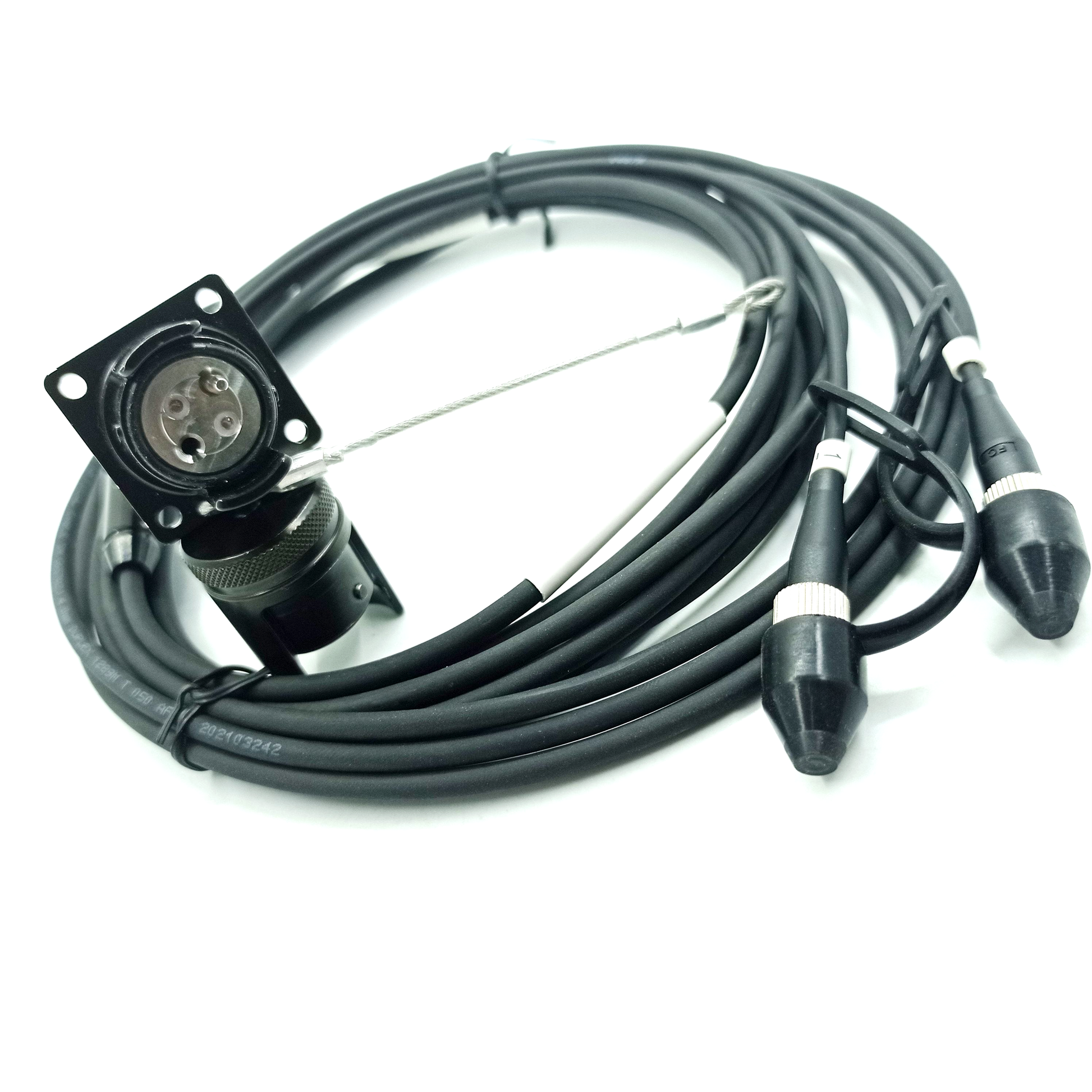

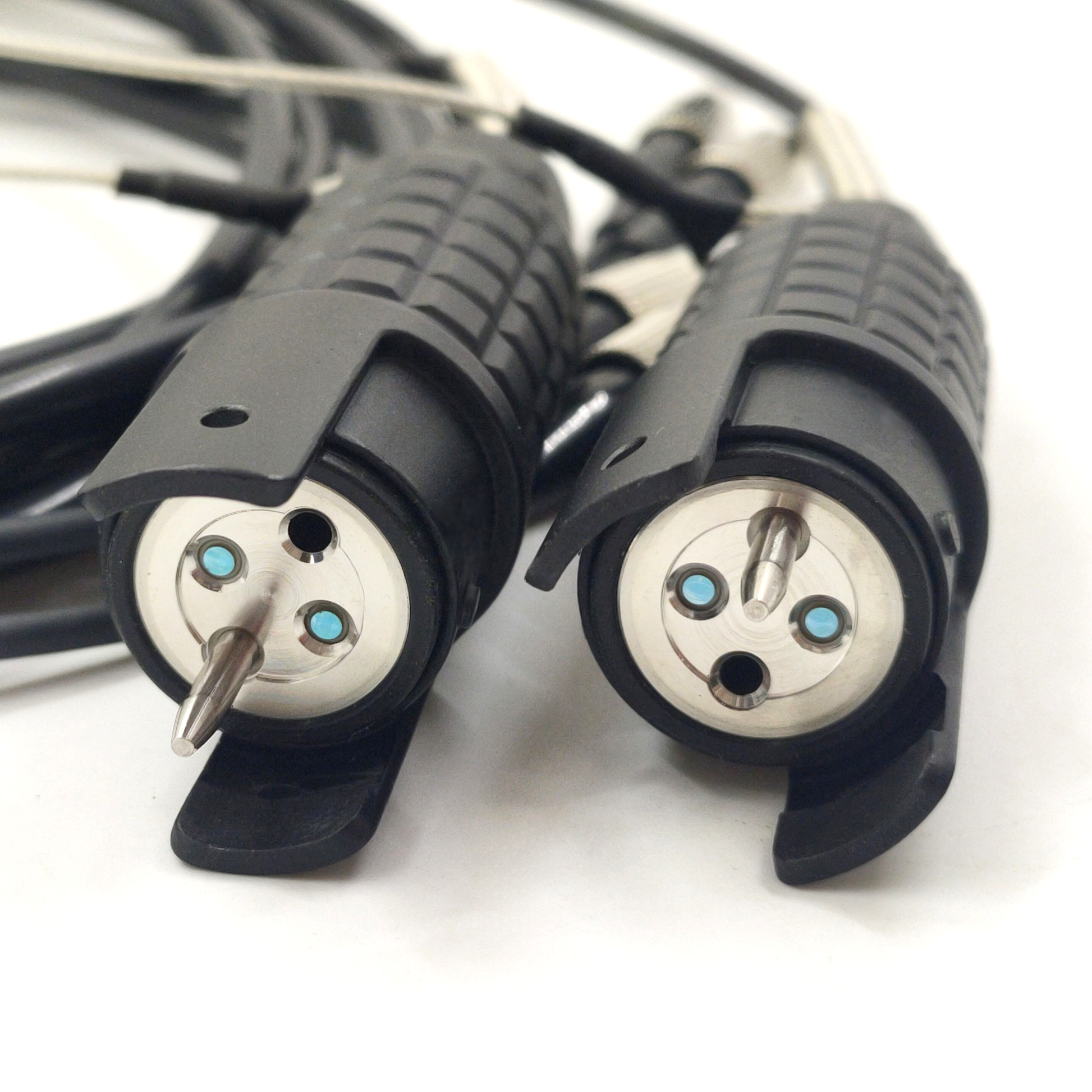

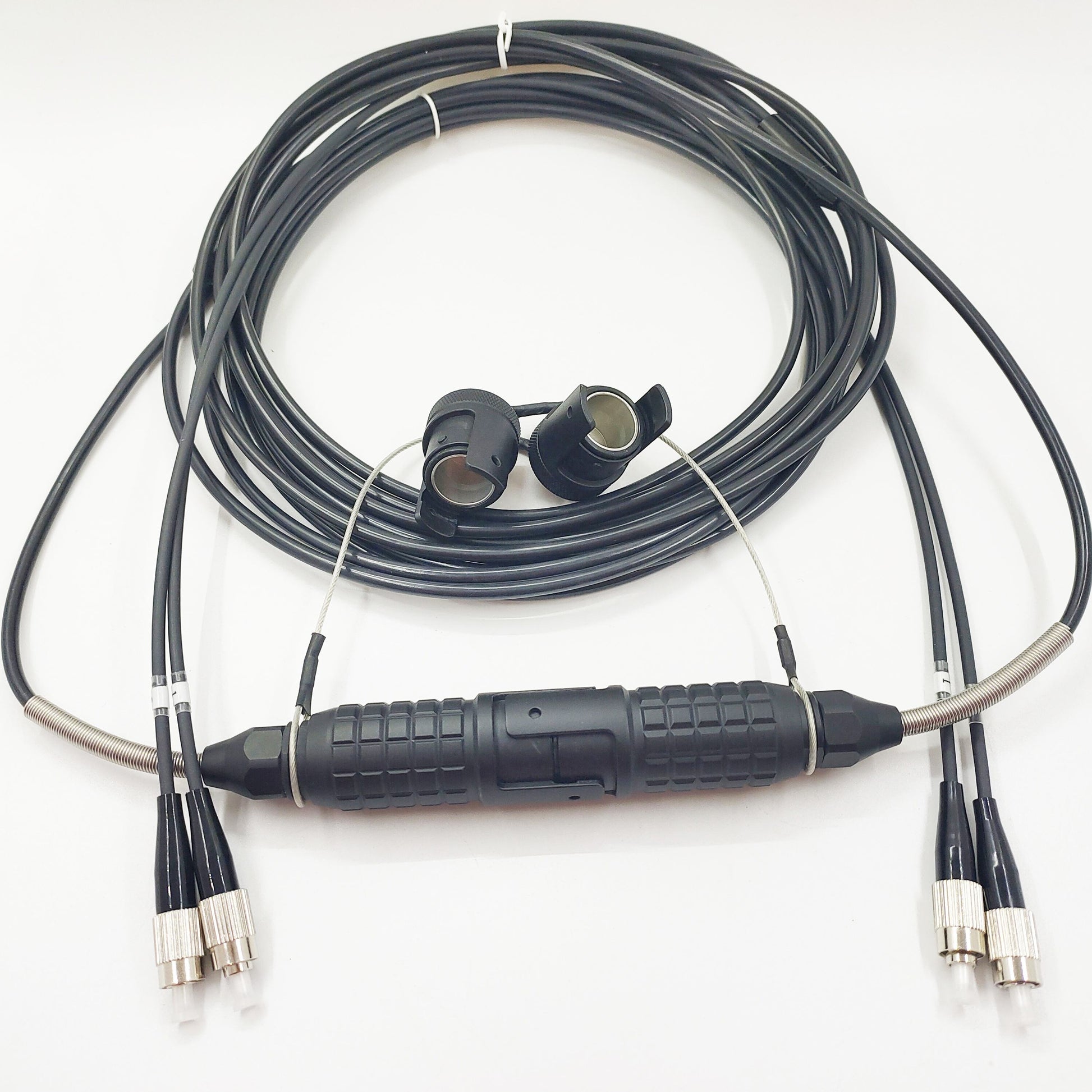

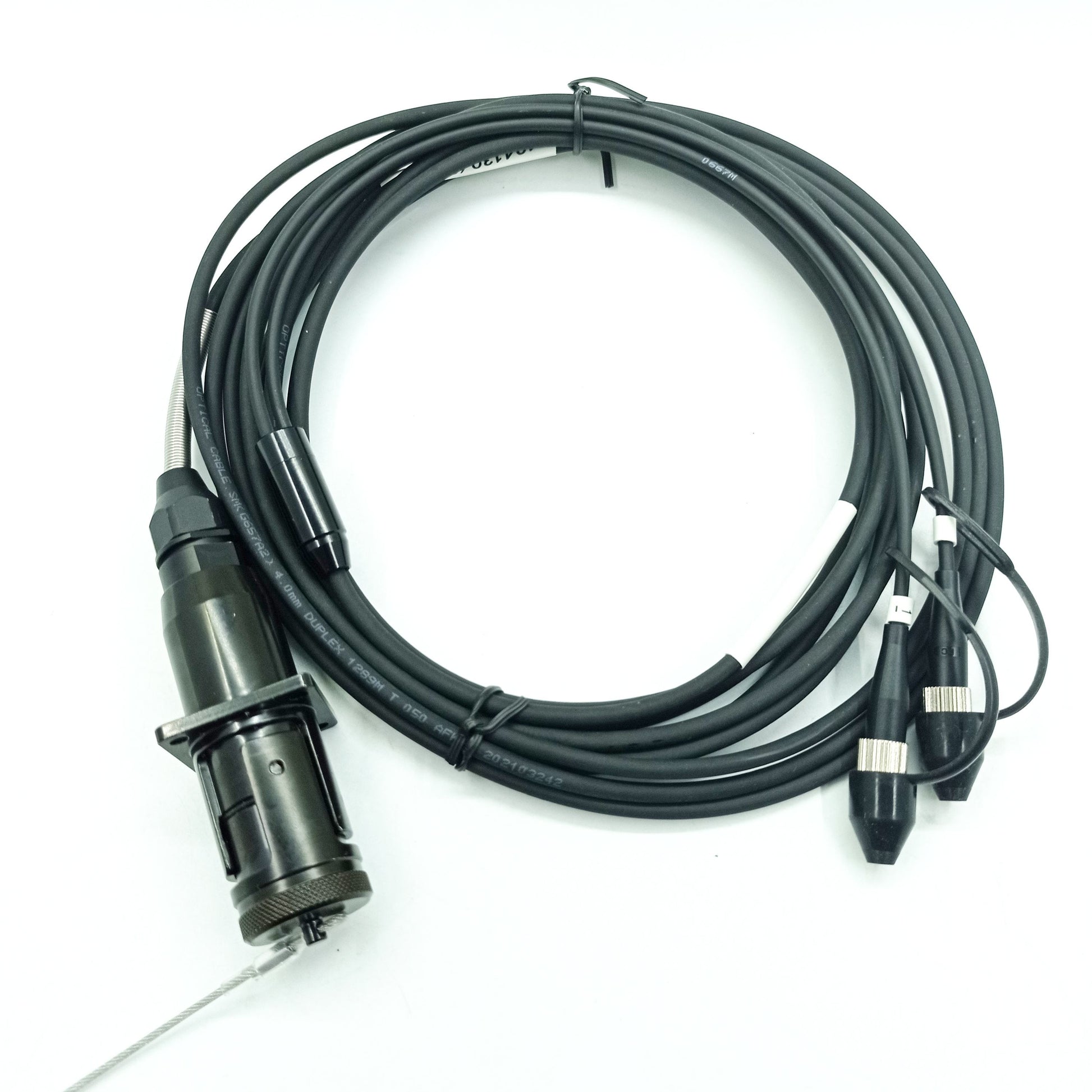

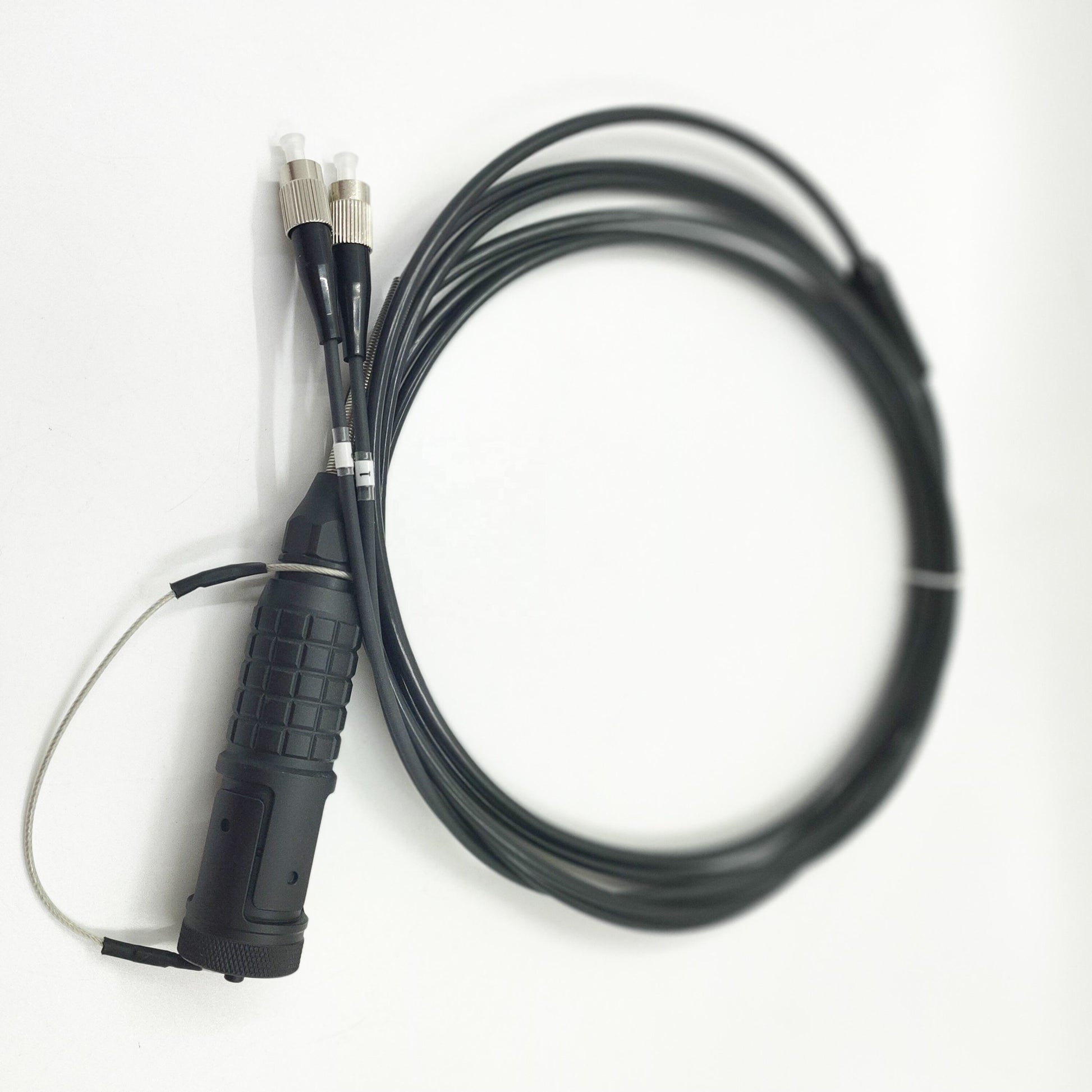

YZE Series Connectors Assamblies Show
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
99999 in stock
