10Gb/s Duplex LC, MMF, 850nm VCSEL-LD, PIN Receiver, SR 300m Transceiver

Name: 10Gb/s Duplex LC, MMF, 850nm VCSEL-LD, PIN Receiver, SR 300m Transceiver
Brand: 我的商店
Availability: InStock

Features
● Support multi-protocol from 8.5Gb/s to 11.3Gb/s
● 850nm VCSEL laser transmitter
● Duplex LC connector
● Up to300m links on MMFOM3
● Single +3.3V Power Supply
● Power consumption<1W
● Compliant with SFF-8431 SFF-8432 and IEE802.3ae
● Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/0°C to 70°C Version available
● RoHS compliant(lead-free)

Applications

● 10GBASE-SR/SW Ethernet
● 10G Fiber channel
● SDH/SONET Application

Description
F-tone NetworksFTUS-851X-02DIxx transceivers are customized transceivers designed for use in 10-Gigabit multi-rate links. They are compliant with SFF-8431, SFF-8432 and 10GBASE LRM; support 4x, 8x and 10x Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. F-tone NetworksFTUS-851X-02DIxx transceivers are RoHS compliant per Directive 2011/65/EU. The high performance850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links on MMF.

Recommended Circuit

Recommended Host Board Power Supply Circuit

Recommended High-speed Interface Circuit

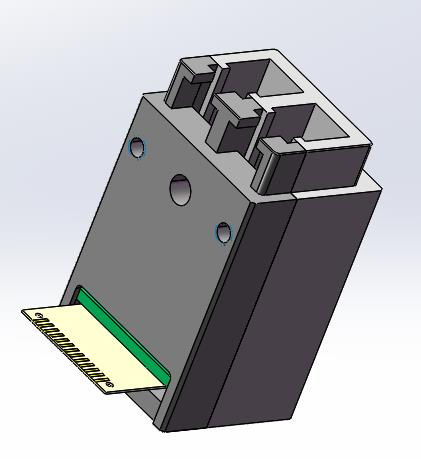

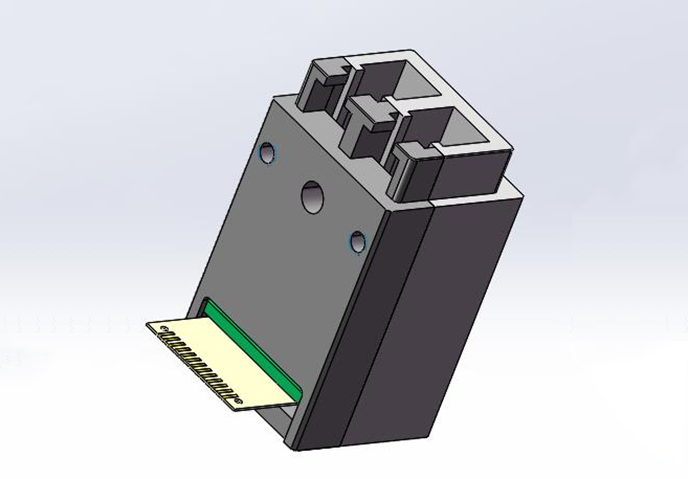

Mechanical Dimensions

PCB Layout
