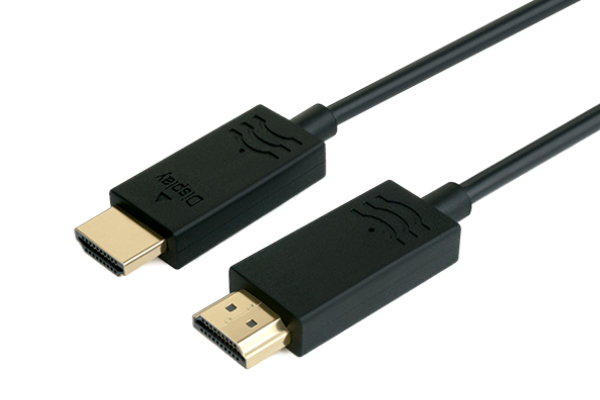

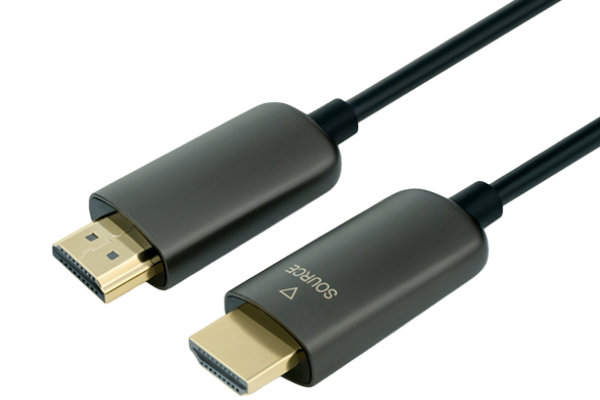

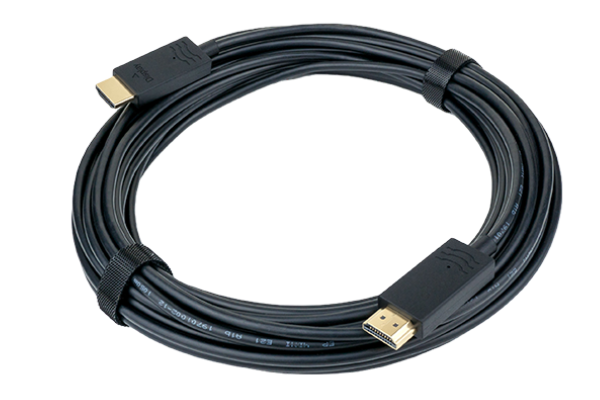

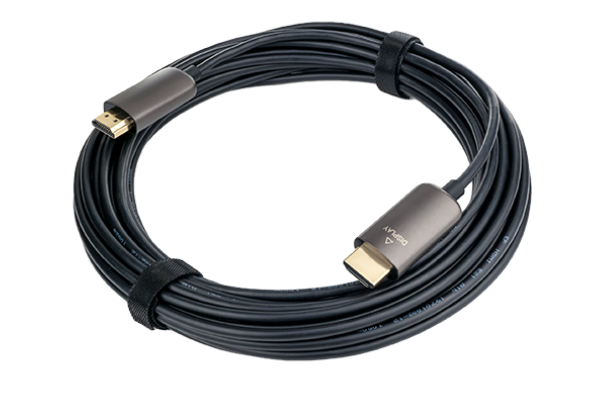

4K HDMI Active Optical Cable (Support ARC)

Name: 4K HDMI Active Optical Cable (Support ARC)
Brand: 我的商店
Availability: InStock

Product Details
In professional engineering wiring, cable needs to be long, light and soft enough to make it more convenient for wiring through pipes, reduce cable damage and ensure the normal transmission of data.
F-tone Networks' FT-62-H2C08 product is an 4K HDMI optical cable with 18Gbps and low power consumption. Adopting TransFuture technology owned by F-tone Networks, its transmission distance can reach 150m. It supports ARC function. In addition, its interior is filled with injection molding, which is dustproof and moistureproof. Various customized requirements regarding appearance are supported.

Features
● High Bandwidth
● Support ARC
● 4K60Hz
● No External Power Needed

Applications
● Living Room Entertainment
● Home Theaters
● Large Exhibition Halls
● Performance Halls

Specifications

Product Model	FT-62-H2C08
Cable Length	up to 150m
Connector	HDMI Type-A Connector-HDMI Type-A Connector
Bandwidth	4K HDMl Standard, 18Gbps Bandwidth, support 4K@60HZ, ARC(30m)
Power Supply	No External Power Needed
Power Consumption	250mw
Housing Material	Black TPE/Zinc Alloy
Mechanical/Condition	Cable Diameter, 4.15mm Bend Radius (Dynamic/Static), 20mm/10mm Tensile Strength (Long term/Short term), 100N/200N Crush Resistance (Long term/Short term), 200N/400N Operating/Storage Temperature, 0~50°C / -20~70°C Operating/Storage Humidity, 0~85% / 0~85%

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about us Contact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing
