8K HDMI AOC (70m)

Name: 8K HDMI AOC (70m)
Brand: 我的商店
Availability: InStock

Product Details

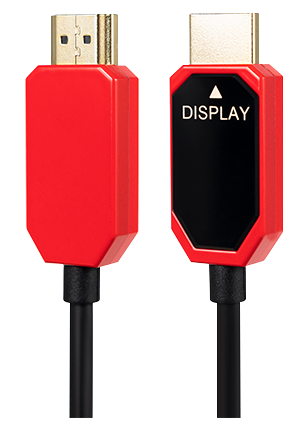

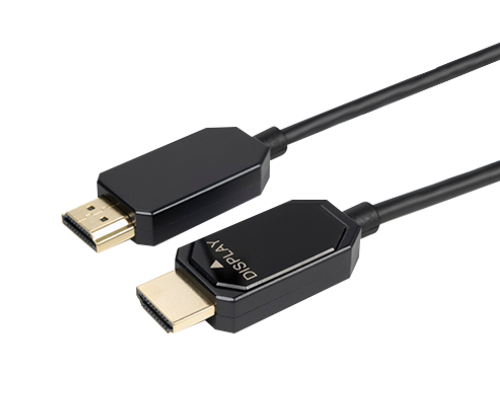

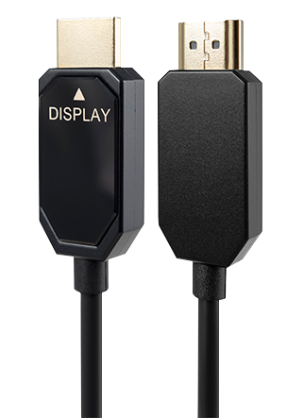

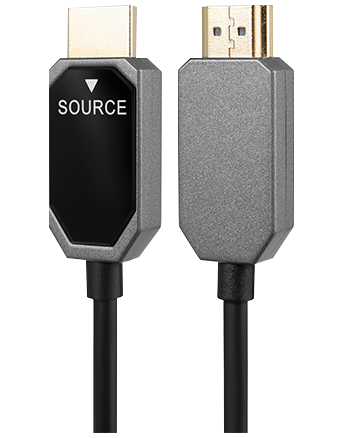

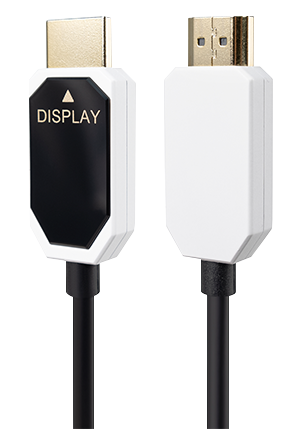

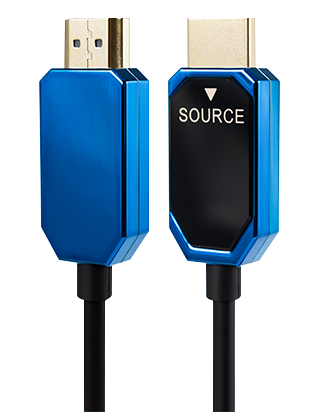

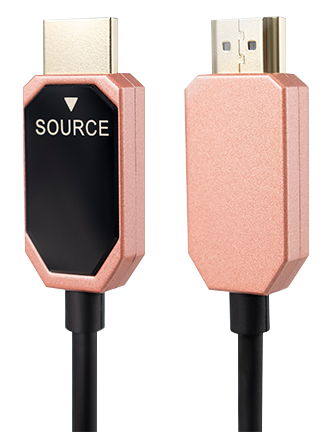

FT-62-H1Sm is the F-tone Networks 8K HDMI product which adopts the SiliconLine 2.1 IC and YOFC special bending-resistant optical fiber. It supports long distance 8K signal transmission and has high reliability. FT-62-H1Sm currently supports 6 appearance color options (Elegant black, Composed of grey, Pearl white, Princess red, Chinese red, Peacock blue), Supports micro-customization such as cable, shell color, Logo and package. Support customer made service.

Features
● HDMI: 48Gbps, 8K 60Hz
● Low Power
● Max70m, OD 4.4mm
● Good flex resistance properties
● Zinc Alloy + Acrylic plate, support 6 colors

Applications
● Living Room Entertainment
● Home Theaters
● Large Exhibition Halls
● Performance Halls

Specifications

Product Model	FT-62-H1Sm-01
Cable Length	up to 70m
Interface	HDMl type A plug - HDMl type A plug
Bandwidth	HDMl, 48Gbps, support 8K UHD display
Power	No External Power Needed
Power Consumption	250mW
Mechanical/Condition	Cable Diameter, 4.4mm Bend Radius (Dynamic/Static), 40mm/20mm Tensile Strength (Long term/Short term), 100N/200N Crush Resistance (Long term/Short term), 200N/400N Operating/Storage Temperature, 0~50°C / -20~70°C

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
