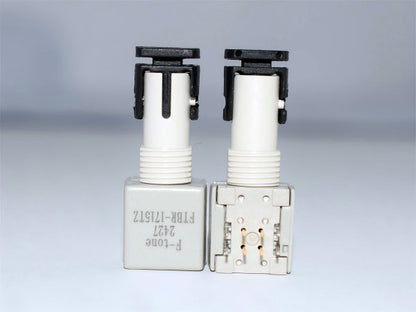

The FTBR-1715TZ series fiber optic transmitters, when used with 850nm multimode fibers, provide high-performance and cost-effective fiber optic communication links for industrial, power generation, medical, transportation, gaming applications and other fields. The FTBR-1715TZ fiber optic transmitters adopt 850nm VCSELs, integrating optical devices and driver ICs to achieve low-power-consumption devices, which are suitable for industrial applications with link distances up to several kilometers.
The FTBR-1715TZ series supports industry-standard ST fiber optic interfaces, with optional threading. The FTBR-1715TZ series is compatible with multimode fibers of various core diameters, including 50/125μm, 62.5/125μm, 100/140μm and 200μm.
The FTBR-1715TZ series, as transmitters, are packaged with high-power chips of VCSELs with a peak wavelength of 850nm.
Features
● Data transmission rate: DC-50MBd
● Single 3.3V power supply
● Integrated 850nm VCSEL, driver IC and transmitter with LVTTL input logic
● RoHS compliant
● Compatible with optical fibers of various core diameters
● ST connector with optional threading
● Meets industrial-grade temperature range: -40℃ to 85℃
● Low power consumption and high power output
Applications
● Factory automation
● Industrial networks and fieldbuses
● Audio-visual applications / gaming applications
● Local area network (LAN)
Transmitter specifications
Typical application diagram
Figure 1 Schematic Diagram of Typical Application Circuit of FTBR-1715TZ
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
About F-tone Networks
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
