AVAGO AFBR-2418MZ Compatible Domestic Alternative Optical Module

Name: AVAGO AFBR-2418MZ Compatible Domestic Alternative Optical Module
Brand: 我的商店
Availability: InStock

product presentation
The FTBR-2418xx series fiber optic transceivers are designed for use with the FTBR-1414xx (transmitters) and 850nm multimode optical fibers. They provide high-performance and cost-effective fiber optic communication links for fields such as industrial, power generation, medical, transportation, and gaming applications. When the FTBR-1414xx is driven by a 60mA current, it achieves a minimum transmission distance of 2000 meters.

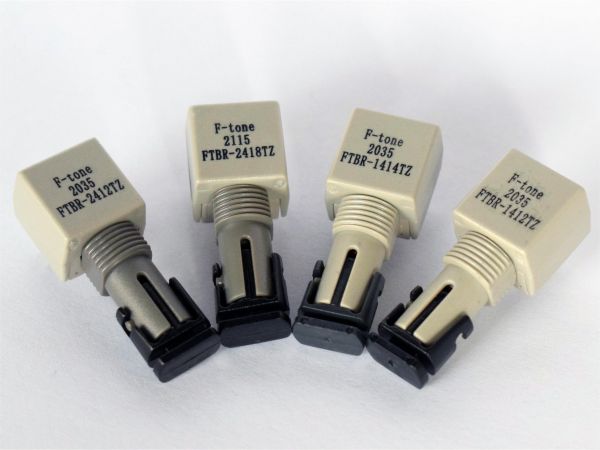

The FTBR-2418xx series is fully compatible with AVAGO's AFBR-2418 series products, supports industry-standard ST fiber optic connectors, and offers an optional threaded configuration. This series is compatible with multimode optical fibers of various core diameters, including 50/125μm, 62.5/125μm, 100/140μm, and 200μm.

The FTBR-2418xx consists of a high-gain transimpedance amplifier (TIA) integrated with a photodiode, featuring CMOS/TTL logic outputs and a built-in Received Signal Strength Indicator (RSSI) function for power monitoring. To enhance the stability of the receiver’s output pulse width, the receiver chip is designed with an automatic pulse width calibration circuit, ensuring pulse width distortion is within ±5ns.

Product characteristics
● Data transfer rate: DC-50 MBd
● Minimum transmission distance: 2000 meters
● The output waveform and pulse width is stable
● Provides RSSI monitoring
● Meets industrial-grade temperature range: -40℃ to 85℃
● Compliance with the RoHS criteria
● Power supply voltage supports 3.3V and 5V
● ST connectors with optional threaded and metal configurations

Product application
● Factory automation
● Lan
● Audio and video applications / game applications
● Industrial network and fieldbus

Outline dimension drawing of ST Connector (FTBR-2418MZ)

Outline dimension drawing of threaded ST connector (FTBR-2418MZ)

List of product models

Product model	Description
TBR-2418MZ	Receiving Device with Metal ST Connector
FTBR-2418TZ	Receiving Device with Threaded ST Connector

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
