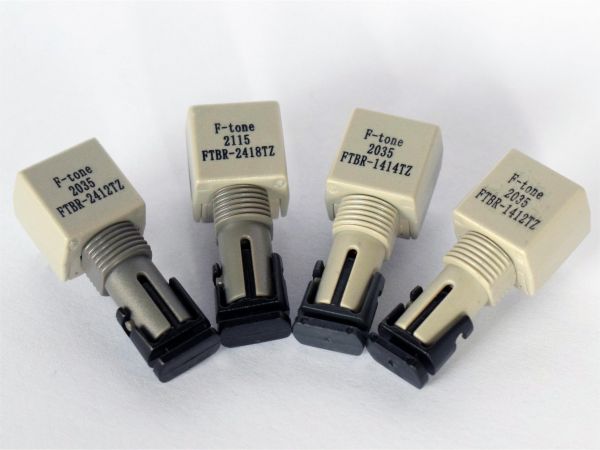

The FTBR-2419TZ series fiber optic transceivers, when used with FTBR-1414XX and 850nm multimode fibers, provide high-performance and cost-effective fiber optic communication links for industrial, power generation, medical, transportation, gaming applications and other fields. Driven by a 60mA current, the FTBR-1414XX achieves a minimum transmission distance of 3000 meters.
The FTBR-2419TZ series supports industry-standard ST fiber optic interfaces, with optional threading. The 2419 is compatible with multimode fibers of various core diameters, including 50/125μm, 62.5/125μm, 100/140μm and 200μm.
The FTBR-2419TZ series consists of a high-gain transimpedance amplifier integrated with a photodiode, featuring CMOS/TTL logic output and providing power monitoring function (RSSI). To enhance the stability of the receiver's output pulse width, the receiver chip is designed with an automatic pulse width calibration circuit, ensuring that the pulse width distortion is within ±5ns.
Features
● Data transmission rate: 100KBd-50MBd
● Minimum transmission distance: 3000 meters
● Stable output waveform pulse width
● Provides RSSI monitoring
● RoHS compliant
● Power supply support: +3.3V or +5V
● ST connector with optional threading
● Meets industrial-grade temperature range: -40℃ to 85℃
Applications
● Factory automation
● Industrial networks and fieldbuses
● Audio-visual applications / gaming applications
● Local area network (LAN)
Receiver specifications
Receiver pin definition
Typical application diagram
ST interface with thread outline dimension drawing (FTBR-2419TZ) Unit: mm
Order information
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
