AVAGO AFBR-5803ATQZ Compatible Domestic Alternative Optical Module

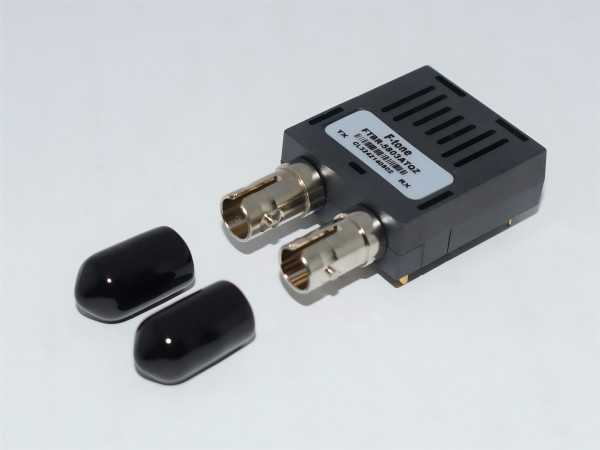

Name: AVAGO AFBR-5803ATQZ Compatible Domestic Alternative Optical Module
Brand: 我的商店
Availability: InStock

Product Features
● Uncooled laser diode with MQW structure
● Reach 2 km Transmission Distance
● Duplex Single Mode Transceiver 1x9 Footprint
● SC, FC or ST Optical Interface are Optional
● Single +3.3V Power Supply
● PECL/LVPECL Differential Inputs and Outputs
● PECL/LVPECL Signal Detection Output alternative
● Fast Ethernet and ITU G.957 Compliant
● Compliant RoHS and lead free
● Complies with Telcordia GR-468-CORE
● Operating case temperature:
Standard : 0 to +70℃
Extend : -20 to +85℃
Industrial : -40 to +85℃

Product Applications
● ATM
● SONET/SDH
● Fast Ethernet
● Switches
● Routers
● Hubs

Performance Specifications

Pin Definitions

Recommended Circuit 1Recommended Circuit 2

Note: The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals. The power supply filtering is required for good EMI performance. Use short tracks from the inductors L1/L2 to the module Rx VCC/Tx VCC. A GND plane under the module is required for good EMI and sensitivity performance

Package Diagram

Order Information

FTBR-5803Z	Compatible with AVAGO AFBR-5803Z, Replaceable with AVAGO AFBR-5803Z
FTBR-5803TZ	Compatible with AVAGO AFBR-5803TZ, Replaceable with AVAGO AFBR-5803TZ
FTBR-5803AZ	Compatible with AVAGO AFBR-5803AZ, Replaceable with AVAGO AFBR-5803AZ
FTBR-5803ATZ	Compatible with AVAGO AFBR-5803ATZ, Replaceable with AVAGO AFBR-5803ATZ
FTBR-5803AQZ	Compatible with AVAGO AFBR-5803AQZ, Replaceable with AVAGO AFBR-5803AQZ
FTBR-5803ATQZ	Compatible with AVAGO AFBR-5803ATQZ, Replaceable with AVAGO AFBR-5803ATQZ
