AVAGO HFBR-2316TZ Compatible 155MBd High-Performance Optical Receiver Module

Name: AVAGO HFBR-2316TZ Compatible 155MBd High-Performance Optical Receiver Module
Brand: 我的商店
Availability: InStock

Overview

The FTBR-2316TZ fiber optic receiver, when used with 62.5/125μm multimode fiber, provides high-performance and cost-effective fiber optic communication links for industrial, power generation, medical, transportation, gaming applications and other fields. Equipped with a 1312 transmitting device, it has a minimum transmission distance of 5 kilometers.

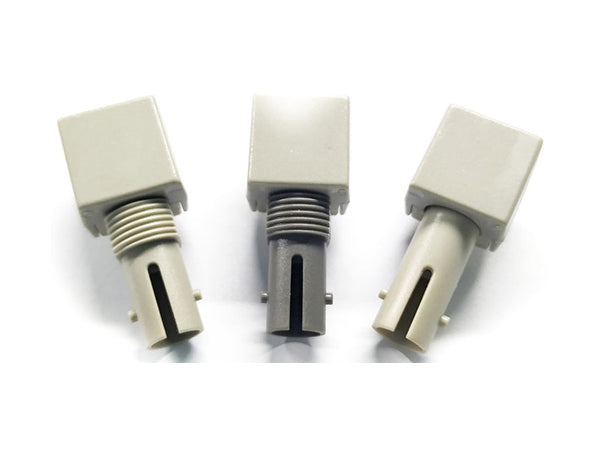

The FTBR-2316TZ supports the industry-standard ST fiber optic interface, with an optional threaded version. It is compatible with multimode fibers of various core diameters, including 50/125μm and 62.5/125μm.

The FTBR-2316TZ receiver incorporates an InGaAs PIN photodiode and a low-noise transimpedance preamplifier, operating at a wavelength of 1300 nm.

Features
● Data transmission rate: 155 MBd
● Minimum transmission distance: 5 km
● Compliant with RoHS standards
● Compatible with optical fibers of various core diameters
● ST connector with optional threading
● Meets industrial-grade temperature range: -40℃ to 85℃

Applications
● High-speed local area network (LAN)
● Local area network (LAN)
● Telecommunication switch system

Receiver pin definition

Receiver specifications

ST interface outline dimension drawing (FTBR-2316Z) Unit: mm

ST interface with thread outline dimension drawing (FTBR-2316TZ) Unit: mm

Order information

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
