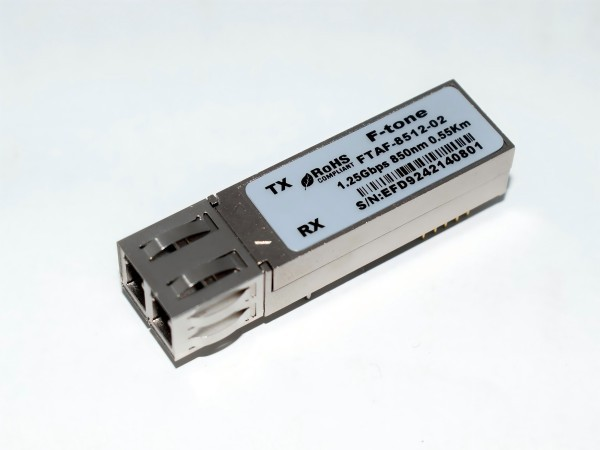

AVAGO HFBR-5911ALZ Compatible Domestic Alternative Optical Module

Name: AVAGO HFBR-5911ALZ Compatible Domestic Alternative Optical Module
Brand: 我的商店
Availability: InStock

Product Description
F-tone Networks’s FTBR-59L1ALZ_FTBR-5911ALZseries of transceiver modules are the perfect solution for high -speed communication networks. These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, Digital Video and other Fibre Channel applications.

Product Features
● VCSEL Laser Diode Transmitter
● Distance up to 300m at MM Fiber
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Input , Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● Fiber Channel
● Digital Video system
● Other optic link

Module Outline Drawing
HFBR 59L1ALZ 2 LC receptacle

Order Information

Type	Fiber Type	Wavelength(nm)	Fiber Length(Km)	Replacement Category
FTBR-59L1ALZ	MM	850(VCSEL)	0.3	Compatible with HFBR-59L1ALZ, replaces HFBR-59L1ALZ
FTBR-5911ALZ	MM	850(VCSEL)	0.3	Compatible with HFBR-5911ALZ, replaces HFBR-5911ALZ

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
