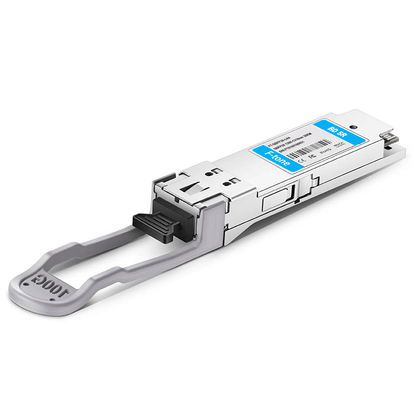

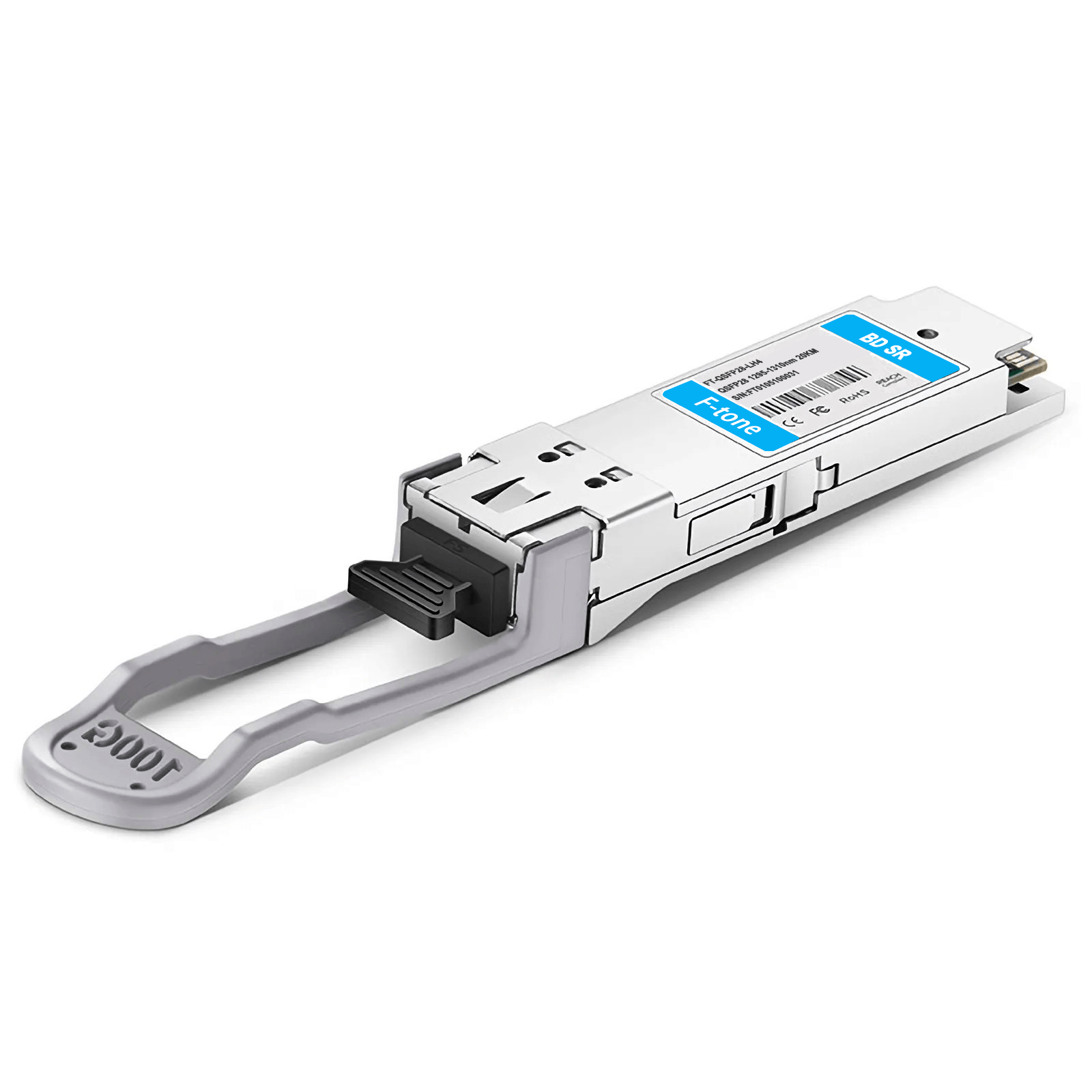

Cisco Compatible 100GBASE-LH4 QSFP28 1310nm 20km LC Duplex SMF DDM Optical Transceiver Module

Cisco Compatible 100GBASE-LH4 QSFP28 1310nm 20km LC Duplex SMF DDM Optical Transceiver Module

Cisco Compatible 100GBASE-LH4 QSFP28 1310nm 20km LC Duplex SMF DDM Optical Transceiver Module

The Cisco compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 20km over single-mode fiber(SMF). F-tone Networks manufactured 100GBASE-LH4 QSFP28 transceiver module is compliant with IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, campus networks, etc.



Model Name FT-QSFP28-LH4 Vendor Name F-tone Networks
Form Factor QSFP28 Data Rate 100Gbps
Wavelength 1295~1310nm Distance 20km (20km with FEC; 10km without FEC)
Connector LC Duplex Cable Type OS2 SMF
Transmitter Type  4 x LAN WDM DML TOSA Receiver Type  PIN
TX Power -4.3~4.5dBm Receiver Sensitivity <-10.6dBm
Power Consumption  <4W Temperature -40 to 85°C (-40 to 185°F)
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA, SFF-8661, SFF-8636
 Warranty 5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about usContact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
