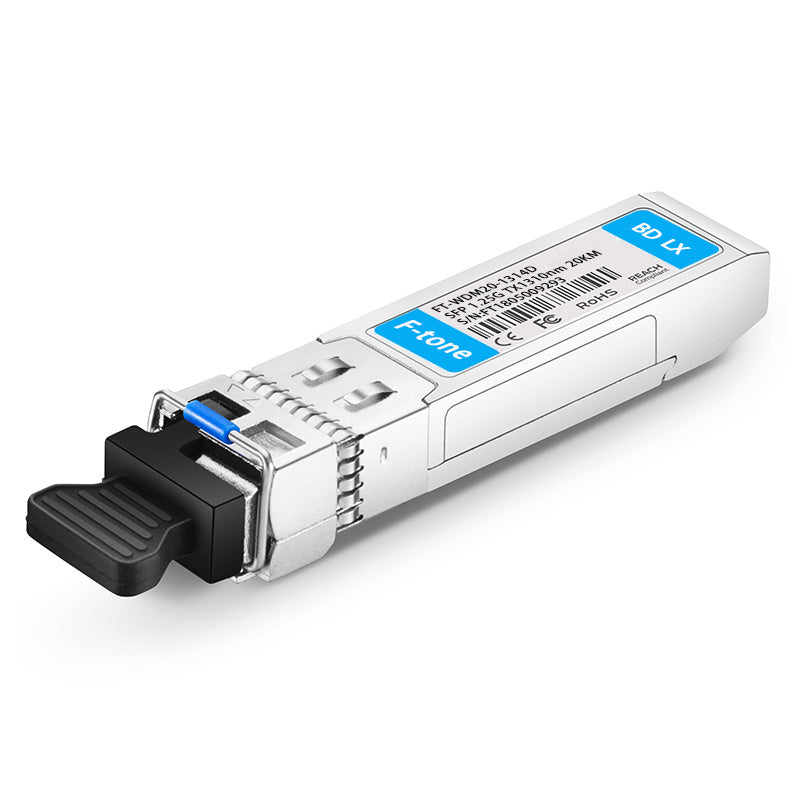

Cisco Linksys MGBBX1 Compatible 1000BASE-BX-U BiDi SFP 1310nm-TX/1490nm-RX 20km Transceiver Module

The Cisco Linksys MGBBX1 compatible SFP optical transceiver module is equipped with an LC simplex connector, reaching a link up to 20km. This 1G BiDi SFP transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. F-tone manufactured 1G SFP optical transceiver is compliant with MSA, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 1G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all Cisco devices.

20km 1G BiDi SFP Model Contrast Table

Part Number	FT-WDM-0220AD	FT-WDM-0220BD	FT-WDM20-1413D	FT-WDM-0220ASD	FT-WDM-0220BSD
Form Factor	SFP	SFP	SFP	SFP	SFP
Data Rate	1.25 Gbps	1.25 Gbps	1.25 Gbps	1.25 Gbps	1.25 Gbps
Wavelength	TX1310nm	TX1550nm	TX1490nm	TX1310nm	TX1550nm
Connector	LC Simplex	LC Simplex	LC Simplex	SC Simplex	SC Simplex
Cable Type	LC Simplex OS2 SMF	LC Simplex OS2 SMF	LC Simplex OS2 SMF	SC Simplex OS2 SMF	SC Simplex OS2 SMF
Max Distance	20km	20km	20km	20km	20km
Temperature Range	0~+70℃	0~+70℃	0~+70℃	0~+70℃	0~+70℃



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
