Cisco SFP-10/25G-CSR-S Compatible 10/25GBASE-SR SFP28 850nm 400M optical transceiver Module

Cisco SFP-10/25G-CSR-S Compatible 10/25GBASE-SR SFP28 850nm 400M optical transceiver Module

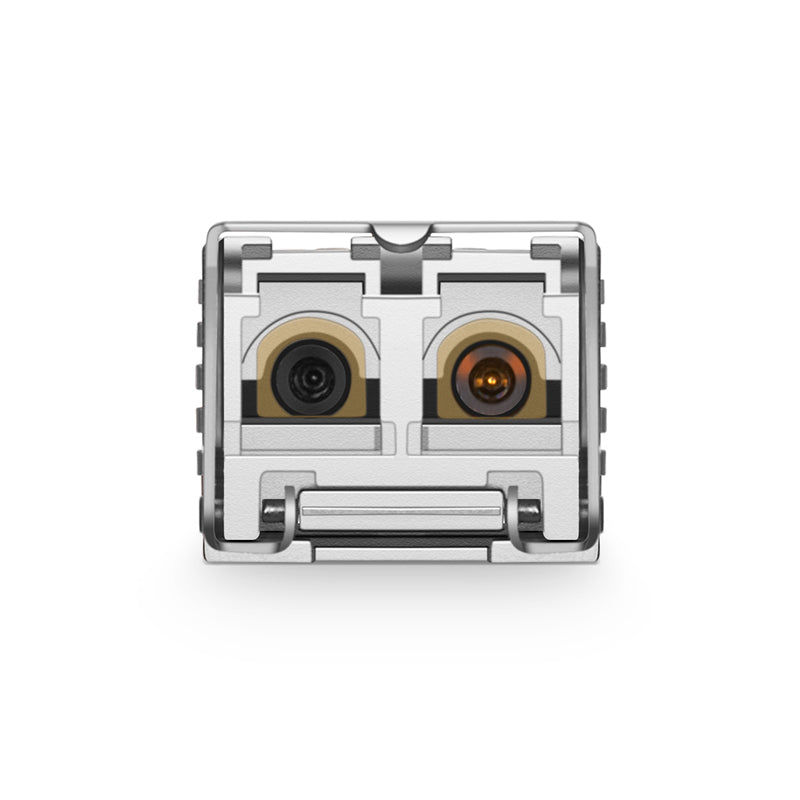

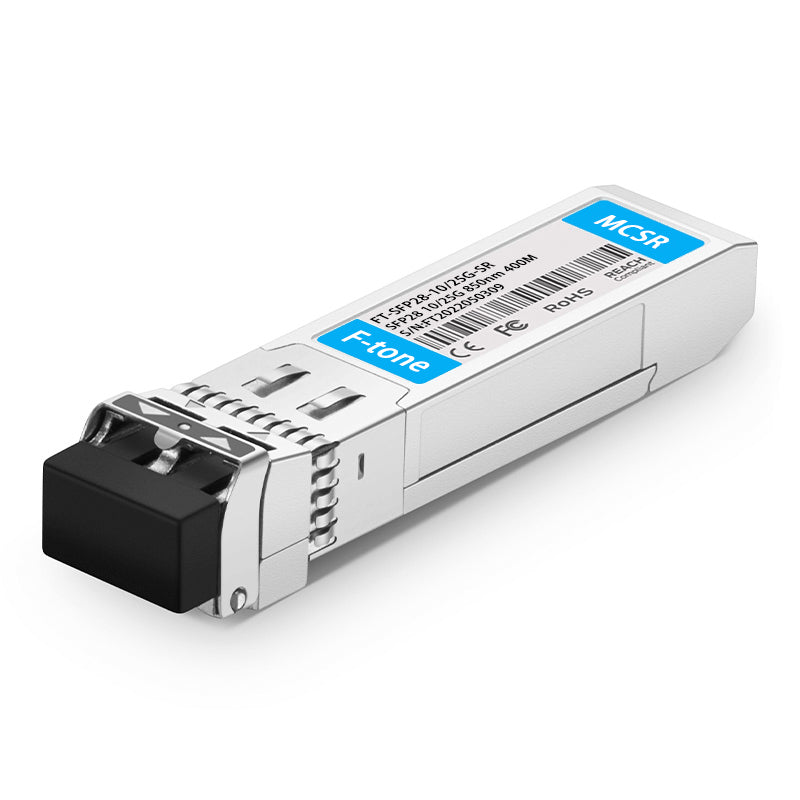

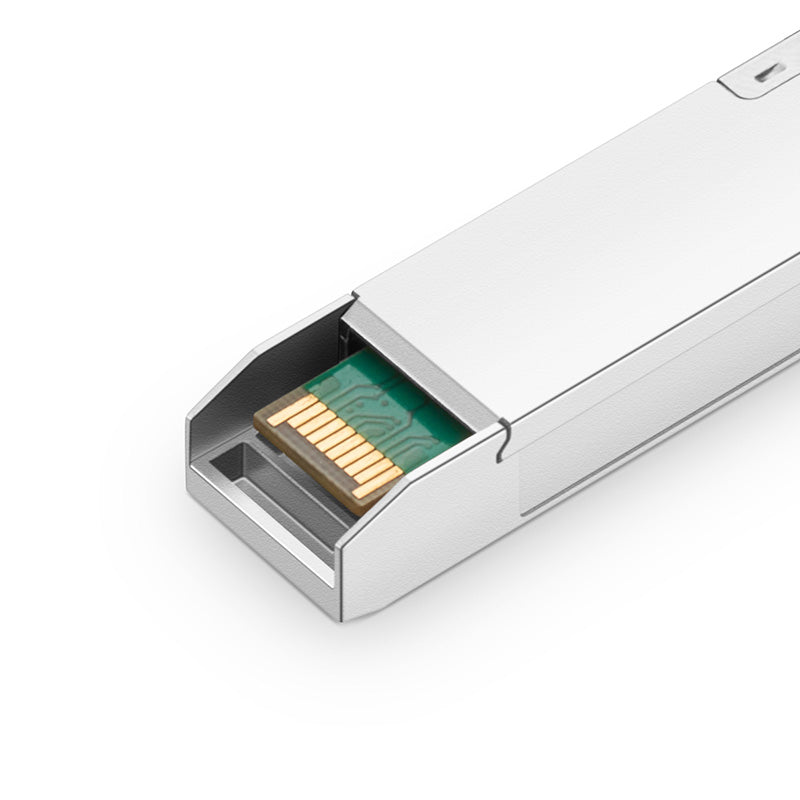

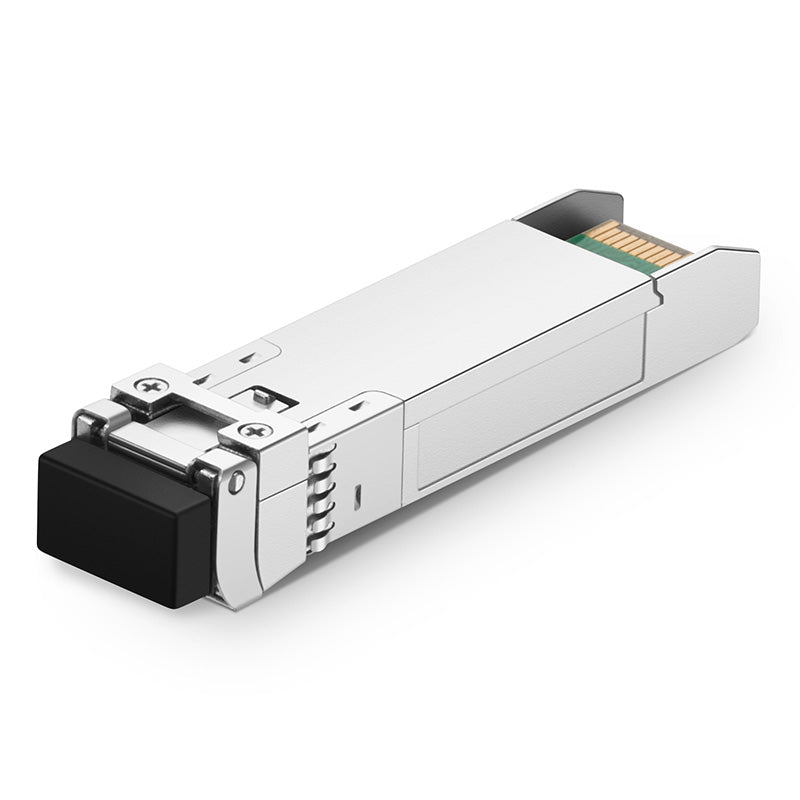

Cisco SFP-10/25G-CSR-S Compatible Dual-Rate 10/25GBASE-SR SFP28 Optical Transceiver Module (MMF, 850nm, 400m, LC, DDM)

The Cisco SFP-10/25G-CSR-S compatible dual-rate 10G/25G SFP28 transceiver module is equipped with LC duplex connectors, reaching a link up to 300m over laser-optimized OM3 multimode fiber (400m over OM4 MMF). This 10G/25G optical transceiver comes with an SFP28 connector, enabling 10 Gbps and 25 Gbps bandwidth. DOM/DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring.

F-tone manufactured 25GBASE-SR SFP28 module is compliant with SFP28 MSA, IEEE 802.3ba SFP28 specifications. Besides, the small form-factor pluggable 28 (SFP28) SR optic has been tested on host devices to ensure full compatibility with Cisco equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 25G SFP module is an ideal substitute to the Cisco SFP-10/25G-CSR-S SFP28 25G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 25G connectivity.

Dual-rate SR 10G/25G SFP28 transceiver caters to 10/25 Gigabit Ethernet (10/25GbE) optical fiber connections, ideal for short-distance applications in the data center, campus network, enterprise core layer, and distribution layer, etc.

Model Name SFP-10/25G-CSR-S Vendor Name F-tone
Form Factor SFP28 Data Rate 10/25 Gbps
Wavelength 850nm Distance 100m@OM4"}">

400m@OM4>
300m@OM3>
Connector LC Duplex Cable Type OM3/OM4 MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power

-7.3 to +2.4dBm (10G)
-6 to +2.4dBm (25G)

 Receiver Sensitivity

<-9.9dBm (10G)
<-8.7dBm (25G)
Power Consumption <1.2W Modulation Format NRZ
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3ba, SFP28 MSA Warranty 5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about usContact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
