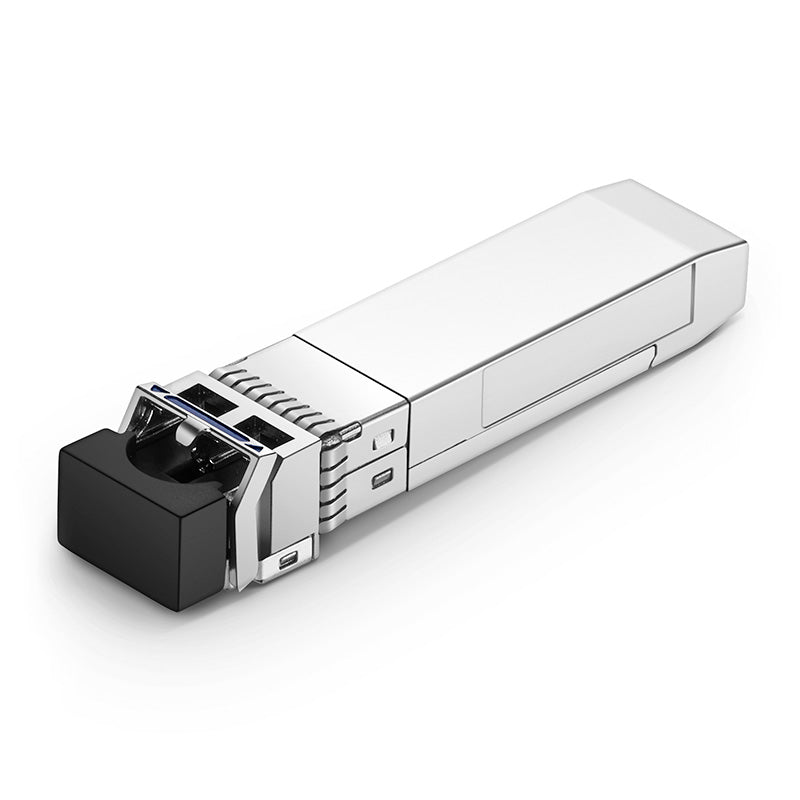

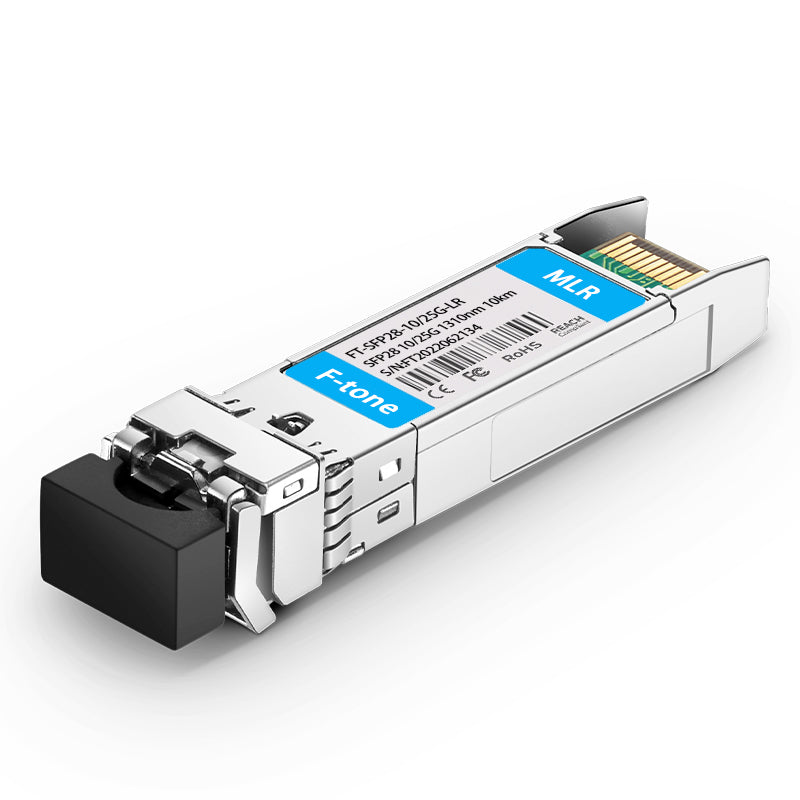

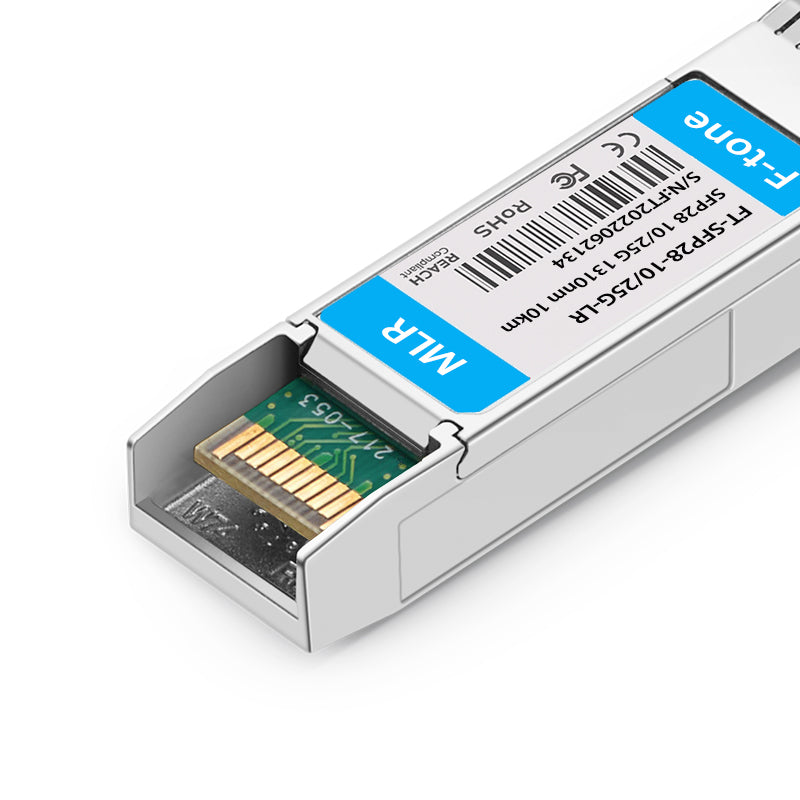

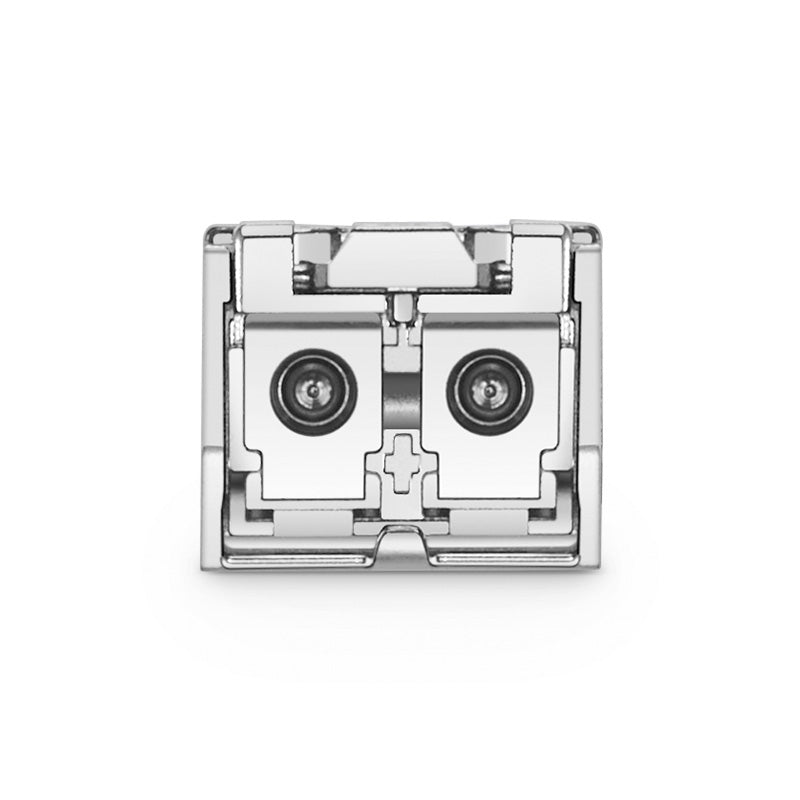

Cisco SFP-10/25G-LR-S Compatible 10/25GBASE-LR SFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Cisco SFP-10/25G-LR-S Compatible 10/25GBASE-LR SFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Cisco SFP-10/25G-LR-S Compatible 10/25GBASE-LR SFP28 Optical Transceiver Module for Data Center (SMF, 1310nm, 10km, DOM)

The Cisco SFP-10/25G-LR-S compatible SFP28 transceiver allows for data transmission at 10/25GBASE-LR speed over single mode fiber (SMF) for up to 10km, utilizing a 1310nm wavelength and an LC duplex connector. This transceiver offers connectivity options for 25G Ethernet, 10G Ethernet, and data centers. Furthermore, it complies with the SFP28 MSA, SFF-8472, SFF-8402, SFF-8432 standards, as well as relevant sections of the SFF-8431 standard.

Model Name

SFP-10/25G-LR-S

Vendor Name

F-tone

Form Factor

SFP28

Max Data Rate

25.78Gbps

Wavelength

1310nm

Max Cable Distance

10km

Connector

Duplex LC

Media

SMF

Transimitter Type

DFB

Receiver Type

PIN

TX Power

-7~2.5dBm

Receiver Sensitivity

＜13.5dBm

Powerbudget

5.5dB

Receiver Overload

2.5dBm

Power Consumption

≤1.5W

Extinction Ratio

>3dB

Commercial Temperature Range

0 to 70°C

Protocols

SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about usContact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
