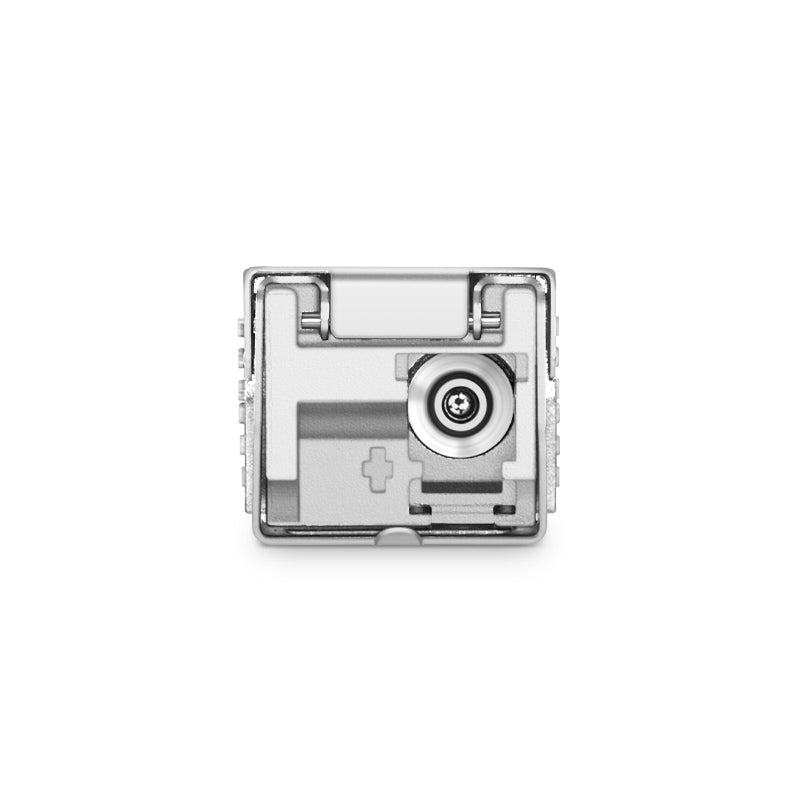

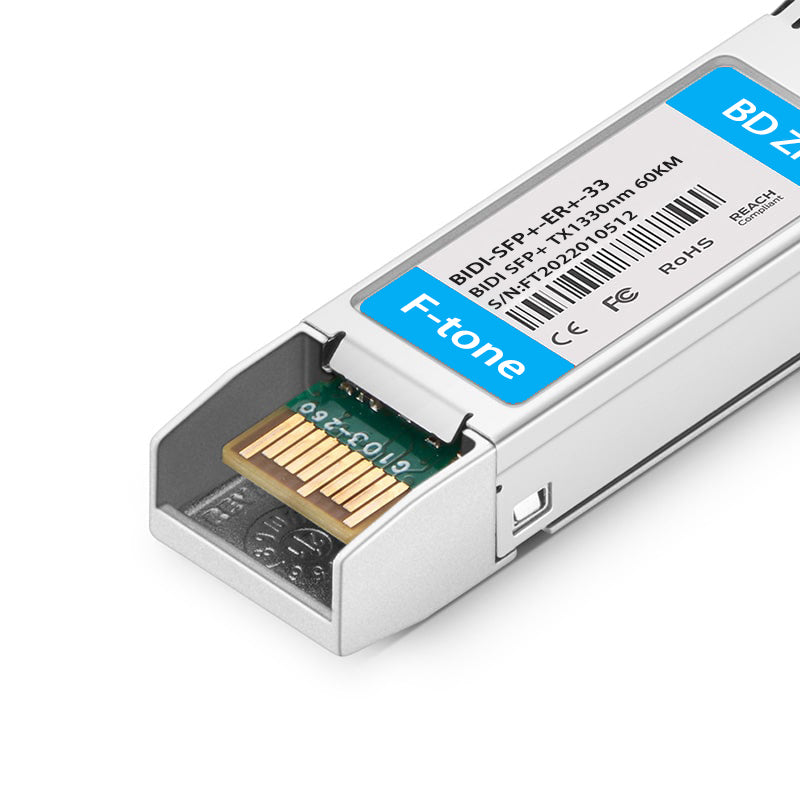

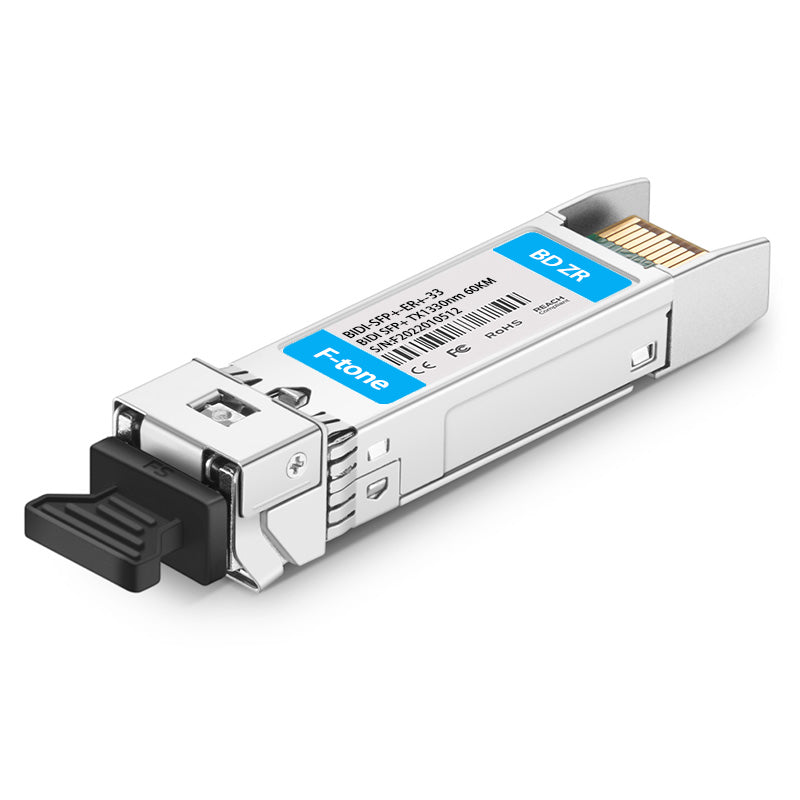

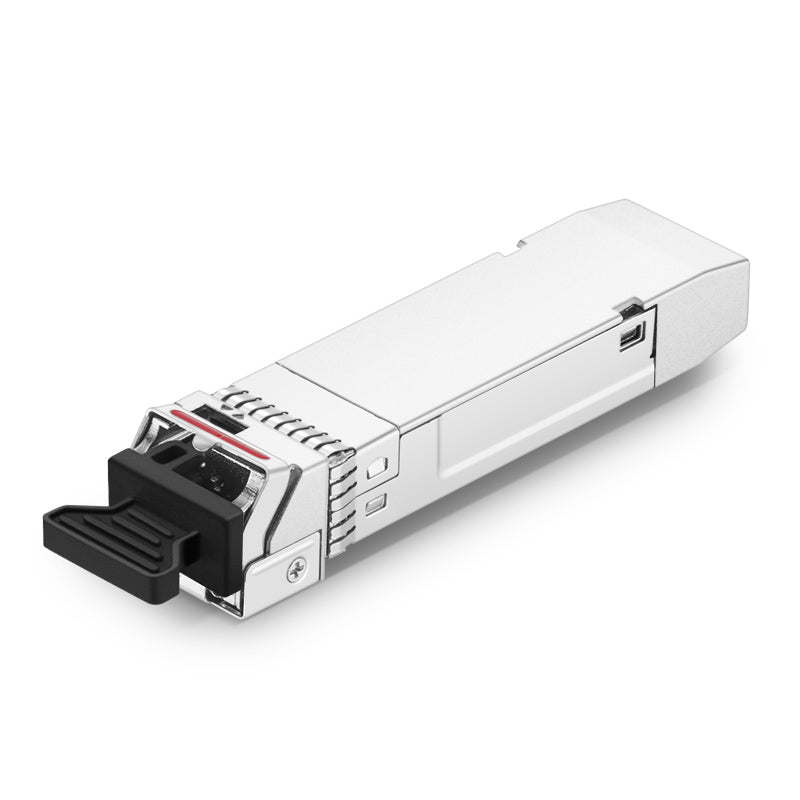

Cisco SFP-10G-BX60D Compatible 10GBASE-BX60-D BiDi SFP+ 1330nm-TX/1270nm-RX 60km DDM LC SMF Transceiver

Cisco SFP-10G-BX60D Compatible 10GBASE-BX60-D BiDi SFP+ 1330nm-TX/1270nm-RX 60km DDM LC SMF Transceiver

Cisco SFP-10G-BX60D Compatible 10GBASE-BX60-D BiDi SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX,60km, LC, DDM)

The Cisco SFP-10G-BX60D compatible SFP+ optical transceiver is equipped with an LC simplex connector, reaching a link up to 60km over G.652. This 10G BiDi SFP+ transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. F-tone manufactured 10GBASE-BX BiDi SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all Cisco devices.

Model Name:

SFP-10G-BX60D

Vendor Name:

F-tone

Form Factor:

SFP+

Data Rate:

10Gbps

Wavelength:

1330nm-TX/1270nm-RX

Distance:

60km

Connector:

LC Simplex

Cable Type:

OS2 SMF

Transmitter Type:

DFB

Receiver Type:

PIN

TX Power:

1~5dBm

Receiver Sensitivity:

<-20dBm

Power Consumption:

<1W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1E-12

Protocols:

Fast Ethernet, Gigabit Fibre Channel, MSA Compliant, SFF-8472

Warranty:

5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about usContact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
