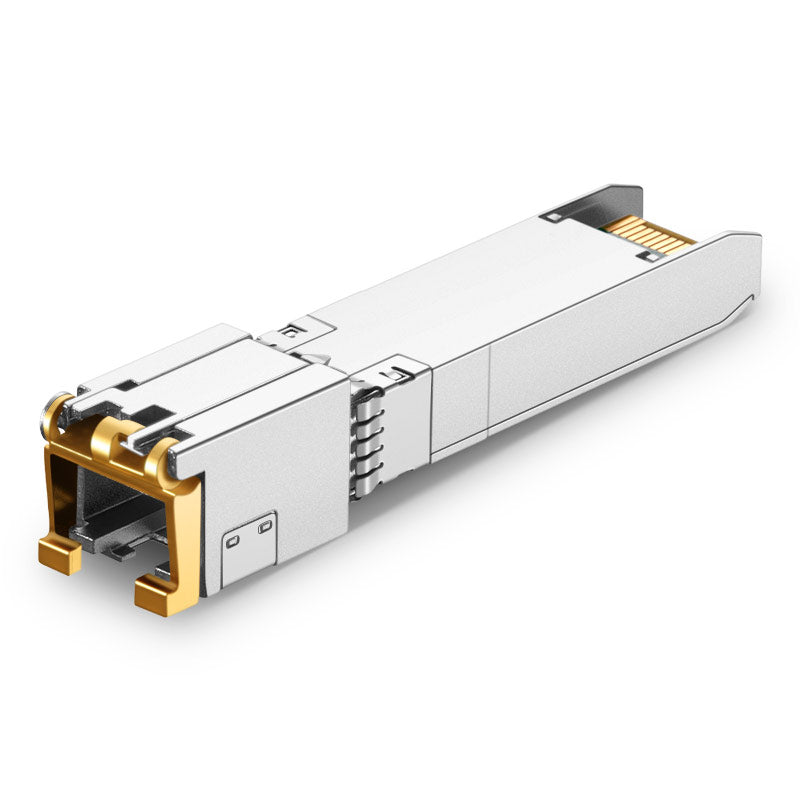

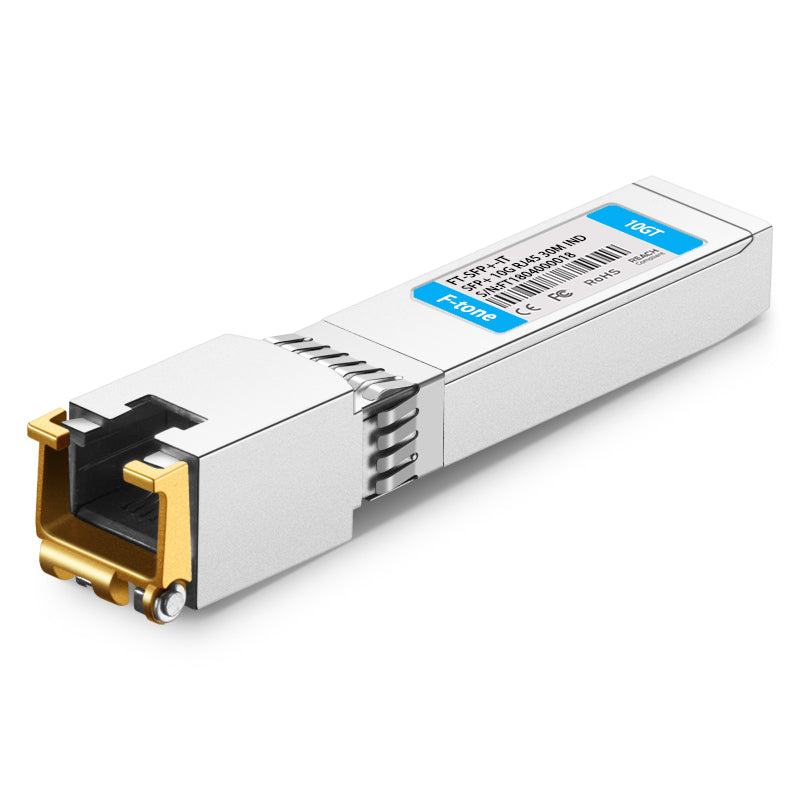

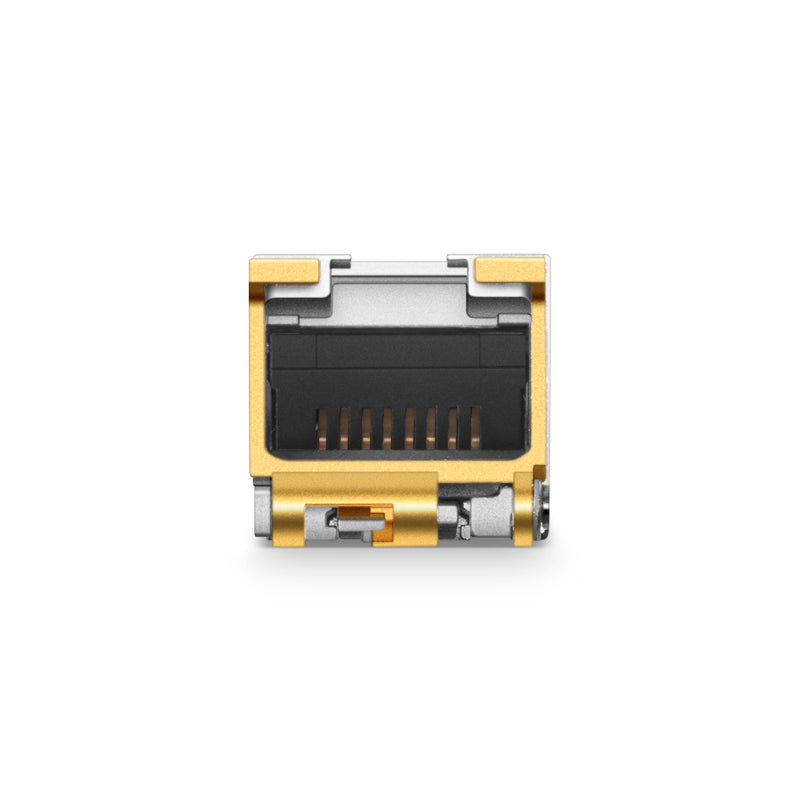

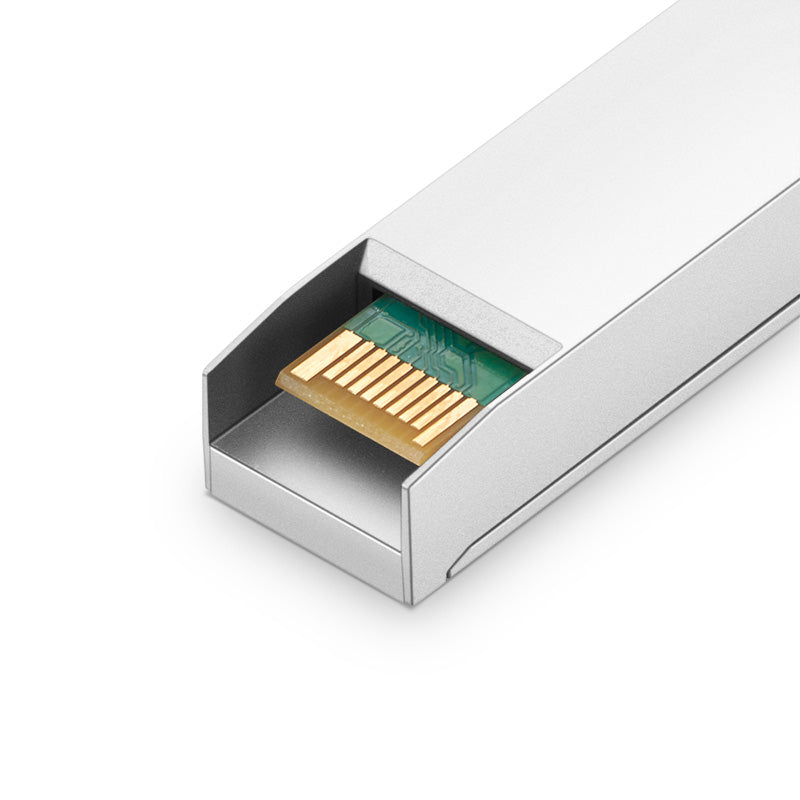

Cisco SFP-10G-T-S-I Compatible 10GBASE-T SFP+ Copper Transceiver Module (30m, RJ45, Industrial)

The Cisco SFP-10G-T-S-I is a copper module equipped with RJ45 connectors that is compatible with Cat6a/Cat7 Ethernet copper cables and transmits 30m at 10GBASE-T data rates. In addition, the 10 Gbps SFP RJ45 module is backward compatible with 1GBASE-T, and intermediate rate 2.5GBASE-T, 5GBASE-T, providing multi-gigabit Ethernet deployment. F-tone manufactured 10GBASE-T SFP+ module is compliant with IEEE 802.3an, IEEE 802.3az, and SFP+ MSA. The 10G RJ45 module uses the electrical signal to transmit data, allowing an upgrade to 10G by reusing existing copper cabling. This 10G SFP+ RJ45 copper transceiver caters to 10 Gigabit Ethernet (10GbE) copper connections, delivering a cost-effective NBASE-T copper solution. It has been tested on host devices to ensure full compatibility with 10G-T ports on Cisco equipment, such as 10GBASE-T switches, enterprise routers, and server network interface cards (NICs). The industrial transceiver has an operating temperature range of -40°C to 85°C, allowing it to operate in harsh industrial environments.

10G Fiber SFP+ Model Contrast Table

Part Number	FT-SFP+-T FT-SFP+-IT	FT-SFP+-T-80	FT-SFP+-SR	FT-SFP+-IR
Wavelength	—	—	850nm	1310nm
Max Distance	30m@Cat6a/7	80m@Cat6a/7	300m	2km
Cable Type	Copper	Copper	OM3/OM4 MMF	OS2 SMF
Connector	RJ45	RJ45	LC Duplex	LC Duplex
Tx Power(dBm)	—	—	-6.5~-0.5	-8.2 ~ -0.5
Rx Sensitivity (dBm)	—	—	-11.1	-12.6
Power Consumption	<2.5W	<2.5W	<0.8W	<0.8W
Source	—	—	VCSEL + PIN	FP + PIN
Operating Temperature	0 to 70°C -40 to 85°C (IND)	0 to 70°C	0 to 70°C	0 to 70°C



Part Number	FT-SFP+-LR	FT-SFP+-ER	FT-SFP+-ZR	FT-SFP+-ZR+
Wavelength	1310nm	1550nm	1550nm	1550nm
Max Distance	10km	40km	80km	100km
Cable Type	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Tx Power(dBm)	-6.5~-0.5	-2~4	0 ~ 5	1 ~ 5
Rx Sensitivity(dBm)	-12.6	-15.8	-24	-25
Power Consumption	<0.8W	<1.5W	<1.5W	<1.5W
Source	DFB + PIN	EML + PIN	EML + APD	EML + APD
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
