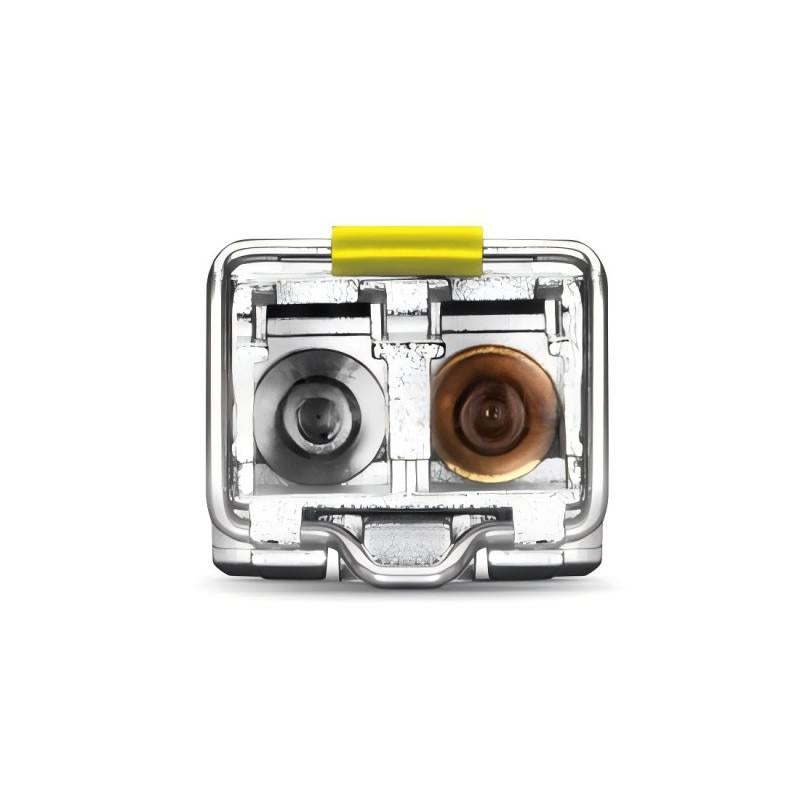

Cisco SFP-GE-Z Compatible 1000BASE-ZX SFP Extended Temperature Transceiver Module (SMF, 1550nm, 80KM, LC)
Cisco SFP-GE-Z compatible 1000BASE ZX SFP transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting 1.25Gbps data rate and 80KM transmission distance over single-mode fiber (SMF). F-tone 1000BASE ZX transceiver is compatible with the IEEE 802.3z 1000BASE-ZX standard.
This compatible 1000BASE-ZX SFP fiber optic transceiver module consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All F-tone manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.
|
Part Number |
FT-SFP-0380D(EXD) |
Vendor Name |
F-tone |
|
Form Factor |
SFP |
Data Rate |
1.25Gbps |
|
Wavelength |
1550nm |
Distance |
80km |
|
Connector |
LC Duplex |
Cable Type |
OS2 SMF |
|
Transmitter Type |
DFB |
Receiver Type |
PIN |
|
TX Power |
0 ~ 5dBm |
Receiver Sensitivity |
<-24dBm |
|
Power Consumption |
< 1W |
Modulation Format |
NRZ |
|
DDM |
Support |
Bit Error Ratio (BER) |
1E-12 |
|
Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
Warranty |
3 Years |
1G Fiber SFP Model Contrast Table
|
Part Number |
FT-SFP-0301D |
FT-SFP-0302D |
FT-SFP-0310D |
FT-SFP-0320D |
FT-SFP-0340D |
|
Image |
|
|
|
|
|
|
Max. Data Rate |
1.25Gbps |
1.25Gbps |
1.25Gbps |
1.25Gbps |
1.25Gbps |
|
Wavelength |
850nm |
1310nm |
1310nm |
1310nm |
1310nm |
|
Max Distance |
550m |
2km |
10km |
20km |
40km |
|
Connector |
LC Duplex |
LC Duplex |
LC Duplex |
LC Duplex |
LC Duplex |
|
Media |
MMF |
SMF/MMF |
SMF |
SMF |
SMF |
|
Operating Temperature |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
|
Part Number |
FT-SFP-0340D |
FT-SFP-0380D |
FT-SFP-03100D |
FT-SFP-03120D |
FT-SFP-03150D |
|
Image |
|
|
|
|
|
|
Max. Data Rate |
1.25Gbps |
1.25Gbps |
1.25Gbps |
1.25Gbps |
1.25Gbps |
|
Wavelength |
1550nm |
1550nm |
1550nm |
1550nm |
1550nm |
|
Max Distance |
40km |
80km |
100km |
120km |
150km |
|
Connector |
LC Duplex |
LC Duplex |
LC Duplex |
LC Duplex |
LC Duplex |
|
Media |
SMF |
SMF |
SMF |
SMF |
SMF |
|
Operating Temperature |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
0~70°C / -45~+85℃ |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
About F-tone Networks
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
