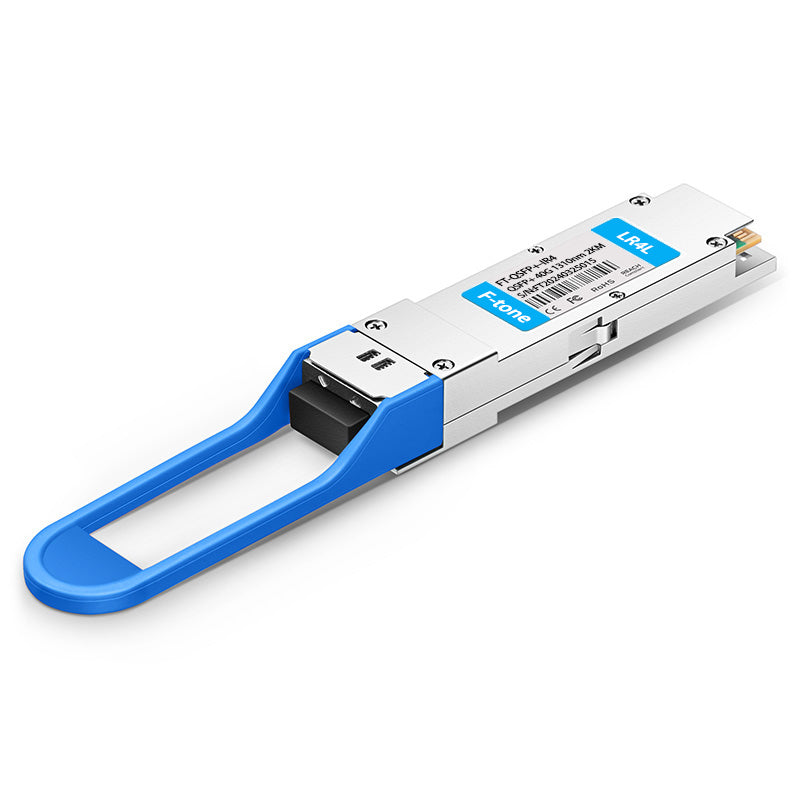

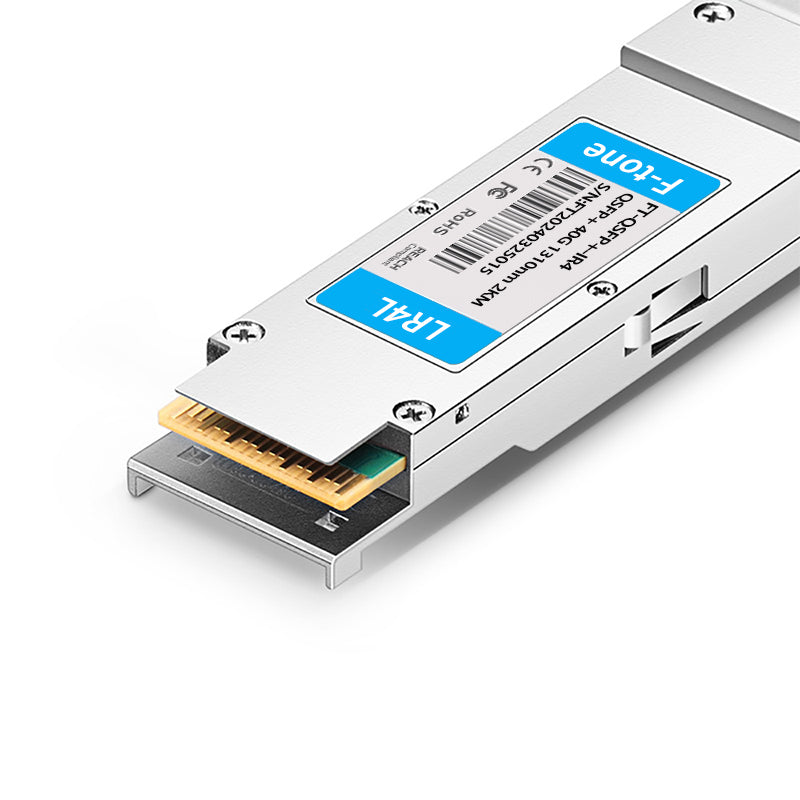

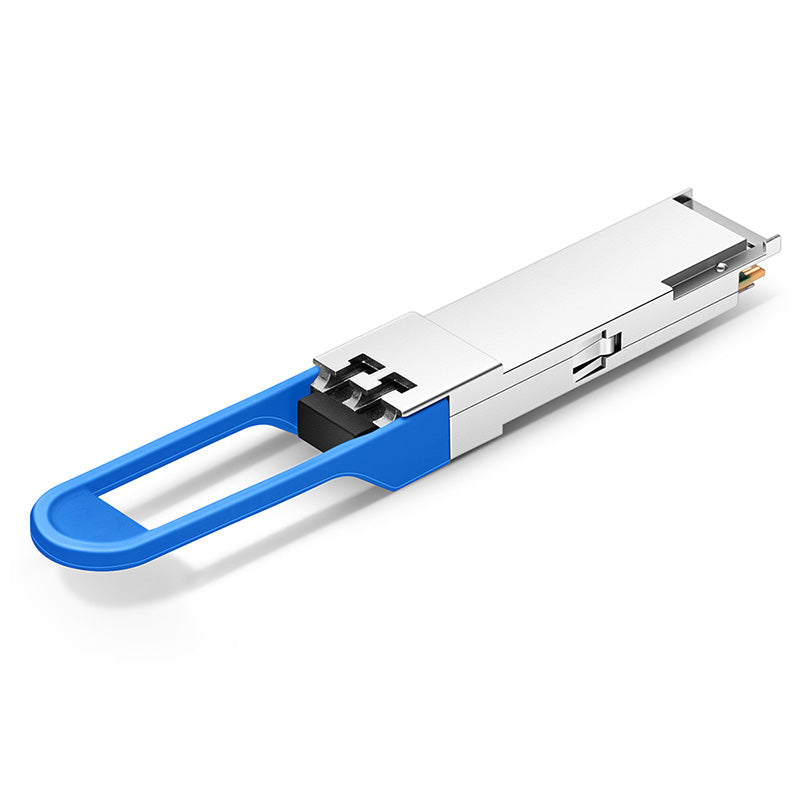

Cisco WSP-Q40GLR4L Compatible 40GBASE-LR4L QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Cisco WSP-Q40GLR4L Compatible 40GBASE-LR4L QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Cisco WSP-Q40GLR4L Compatible 40GBASE-LR4L QSFP+ Optical Transceiver Module (SMF, 1310nm, 2km, LC, DDM)

The Cisco WSP-Q40GLR4L compatible 40G QSFP+ LR4L transceiver module is equipped with LC duplex connectors, reaching a link up to 2km over OS2 single-mode fiber (SMF). F-tone manufactured Cisco WSP-Q40GLR4L compatible QSFP+ module is compliant with QSFP+ MSA standard. Besides, this module has been tested on host devices to ensure full compatibility with Cisco switches. The third-party 40G QSFP module is an ideal substitute for the OEM QSFP 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G Ethernet connectivity.

Model Name FT-QSFP-IR4 Vendor Name F-tone
Form Factor QSFP+ Data Rate 40 Gbps
Wavelength 1310nm Distance 2km@OS2

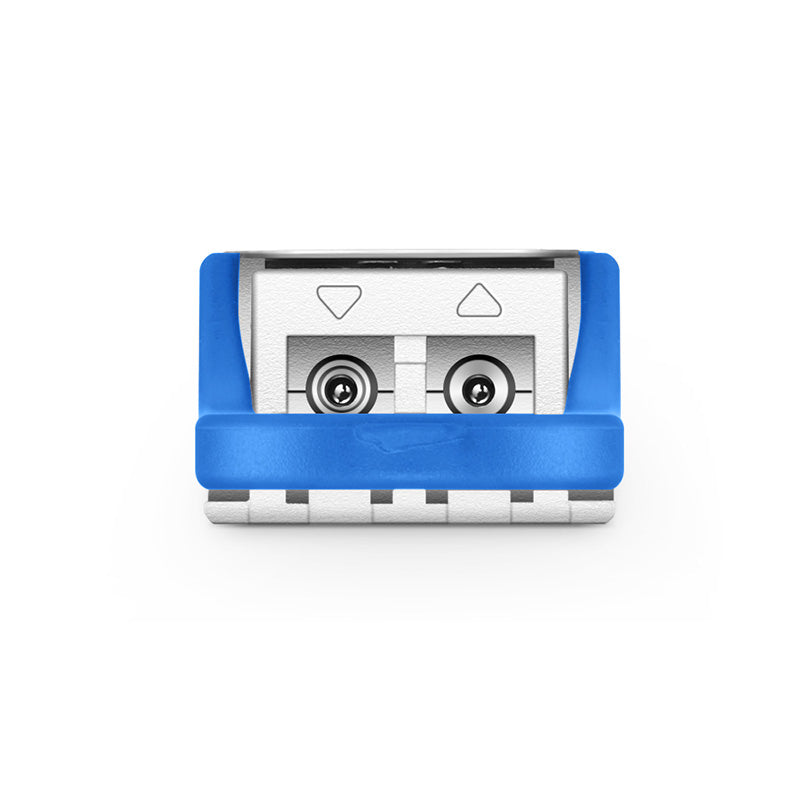

Connector LC Duplex Cable Type OS2 SMF
Transmitter Type DFB CWDM Receiver Type PIN
TX Power -7~2.3dBm Receiver Sensitivity <-11.5dBm
Power Consumption <3.5W Temperature 0 to 70°C (32 to 158°F)
DDM Support Bit Error Ratio (BER) 1E-12
Protocols 40G Ethernet, Fibre Channel, SATA/SAS3, MSA Compliant, SFF-8436 Warranty 5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about usContact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
