F-tone D38999 MT Series GYM12 Fiber Optic 9# 1MT 12Cores/24Cores/48cores Plug Connectors Cable Assembly

F-tone D38999 MT Series GYM12 Fiber Optic 9# 1MT 12Cores/24Cores/48cores Plug Connectors Cable Assembly

F-tone D38999 MT Series GYM12 Fiber Optic 9# 1MT 12Cores/24Cores/48cores Plug Connectors Cable Assembly

Key attributes
Industry-specific attributes

Type Connector
Application Automotive
Gender Female

Other attributes

Place of Origin ChengDu, China
Brand Name F-tone Networks
Model Number D38999MT/GYM12KT1AN
Keywords D38999 MT
Standard D38999
Cable type amoured cable
Operating Temperature range -40~+85
Packing Plastic Bag + Carton
MOQ 2pcs
Shipping by Courier
Warranty 1 Year
Shell Material Stainless Steel Shell
IP rating IP67 Water Proof

Packaging and delivery

Selling Units: Single item
Single package size: 15X15X15 cm
Single gross weight: 1.000kg

Product descriptions from the supplier

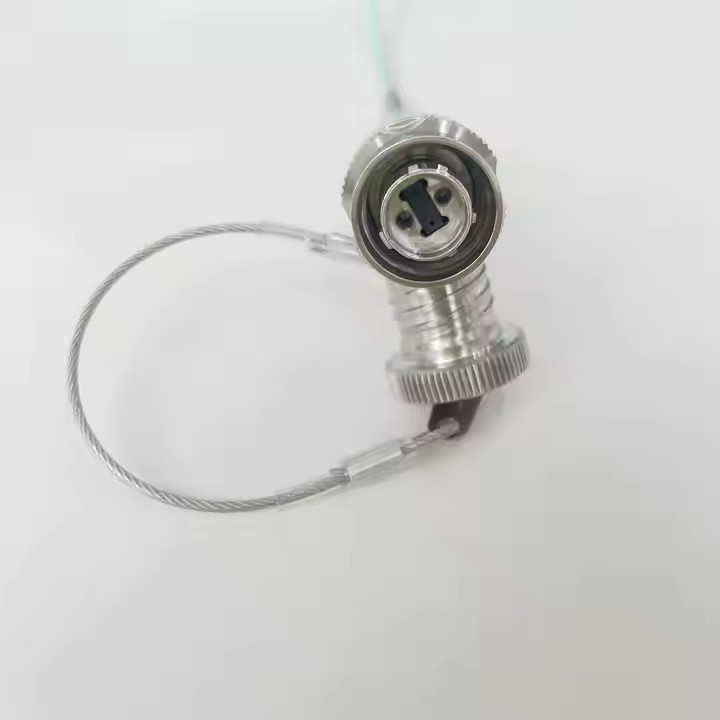

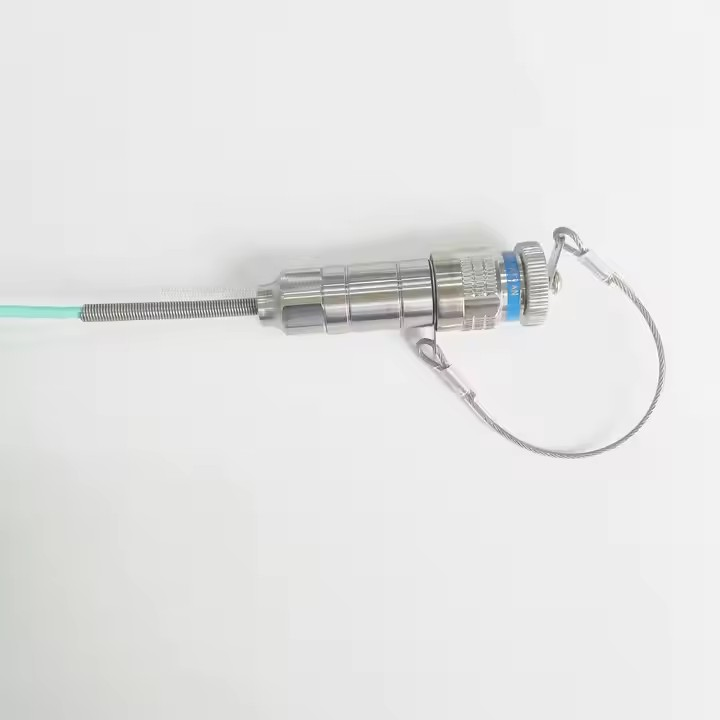

D38999 MT / GYM Series Fiber optical connectors
Conforms to GJB599A(MIL-DTL-38999) Ⅲ series interface,D38999MT/GYM
Connectors have ALL THE CHARACTICS of D38999,But use with MT ferrules , make it suitable for big quantities cores fiber optical communications ,from 1MT to 4MT can be as choices for installing inside ,from 2cores -192cores can make . The outer shell can choose different materials and coatings to adapt to different environmental requirements
Five - key positioning, blind insertion and anti - error insertion function
Three - threaded fast connection with anti - loose structure
Ceramic pin and sleeve are used to realize precise butt joint
There are many tail variations to choose from

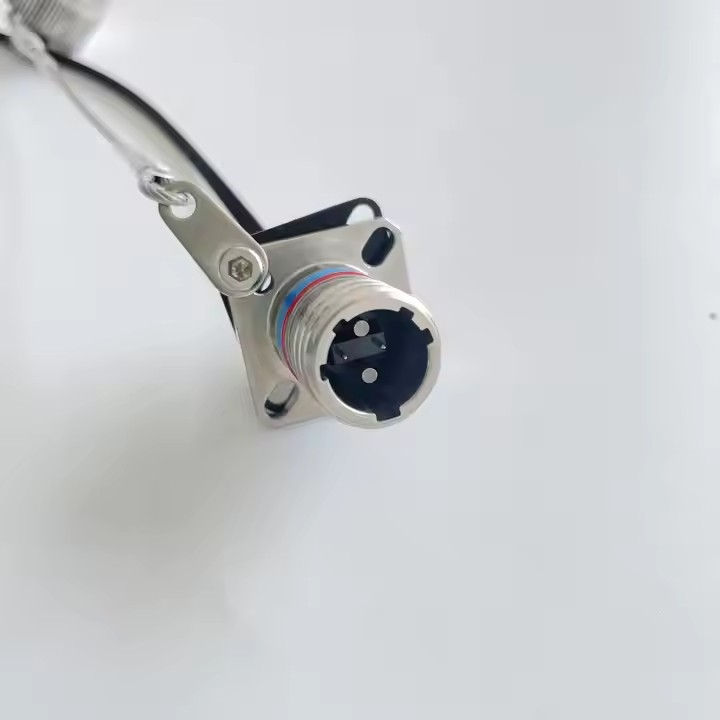

Adapter socket (optional gas seal) form, get rid of cable bondage
The products are used in aviation, electronics, cabinets, medical ,Mine, ships and other systems
