D38999 Tactical Waterproof connector

Name: D38999 Tactical Waterproof connector
Brand: 我的商店
Availability: InStock

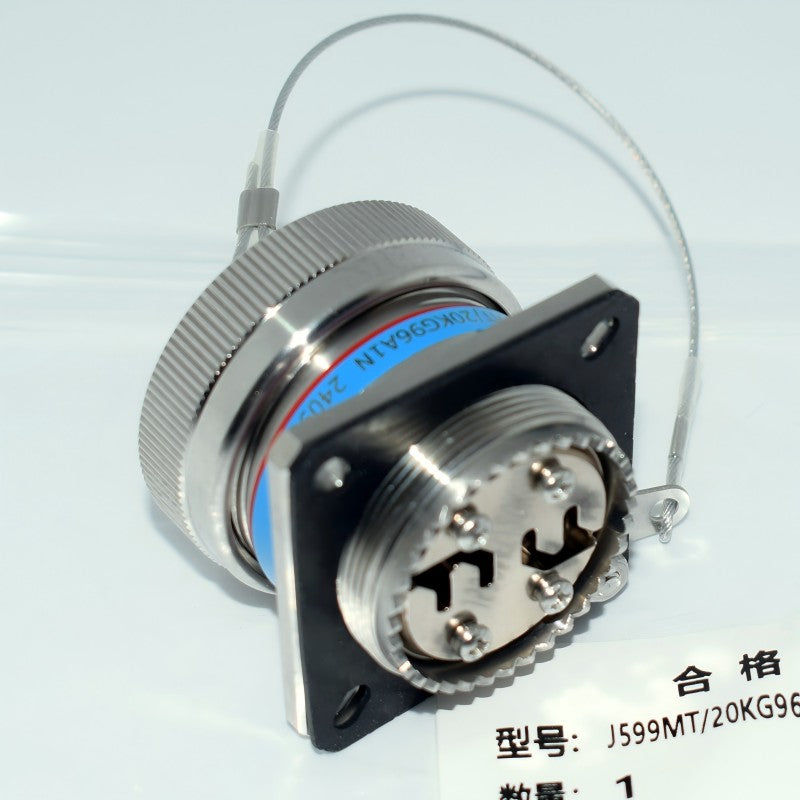

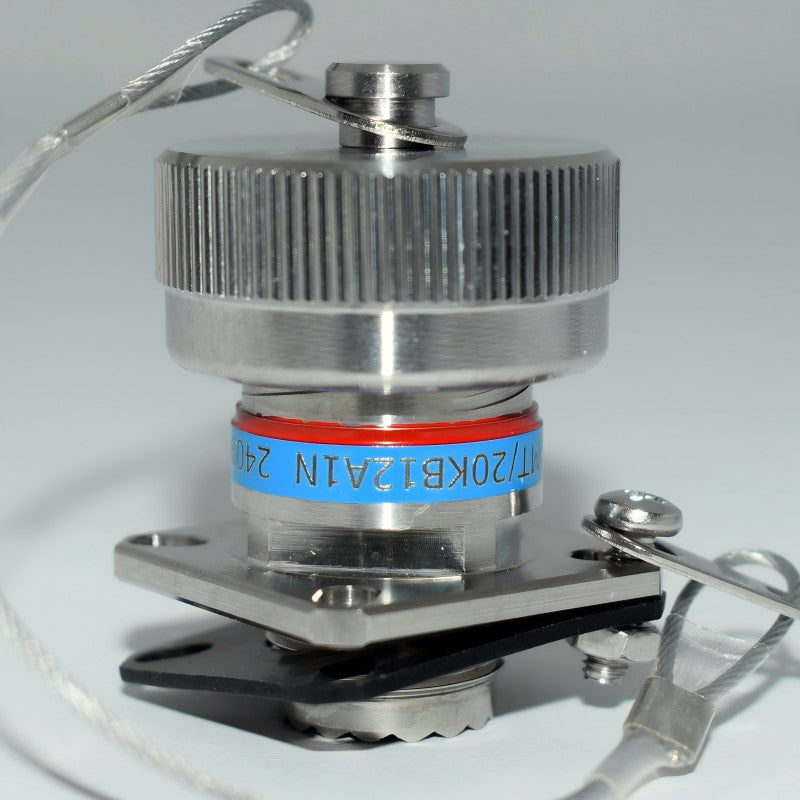

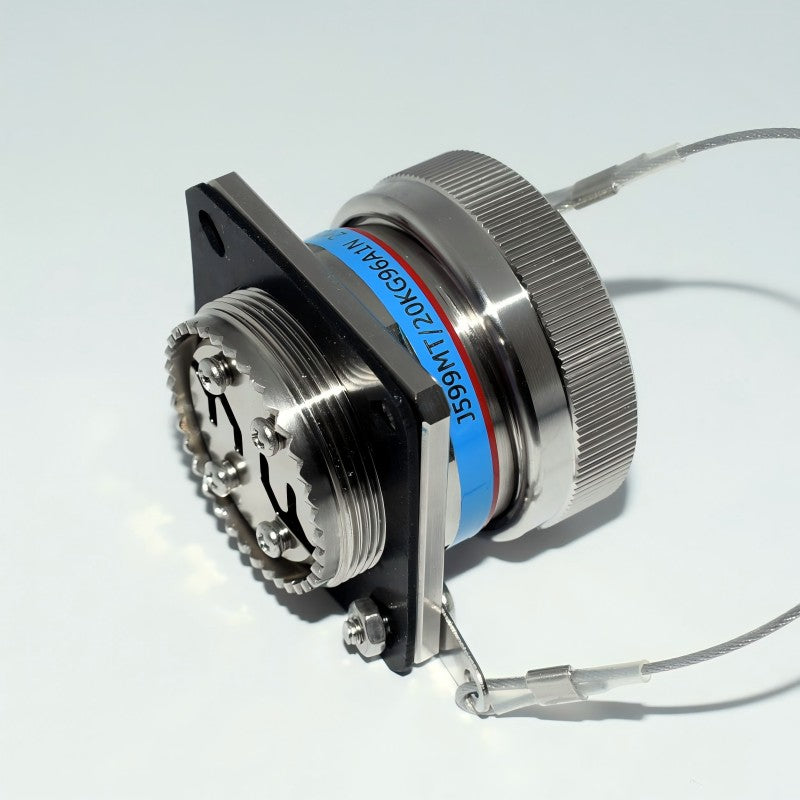

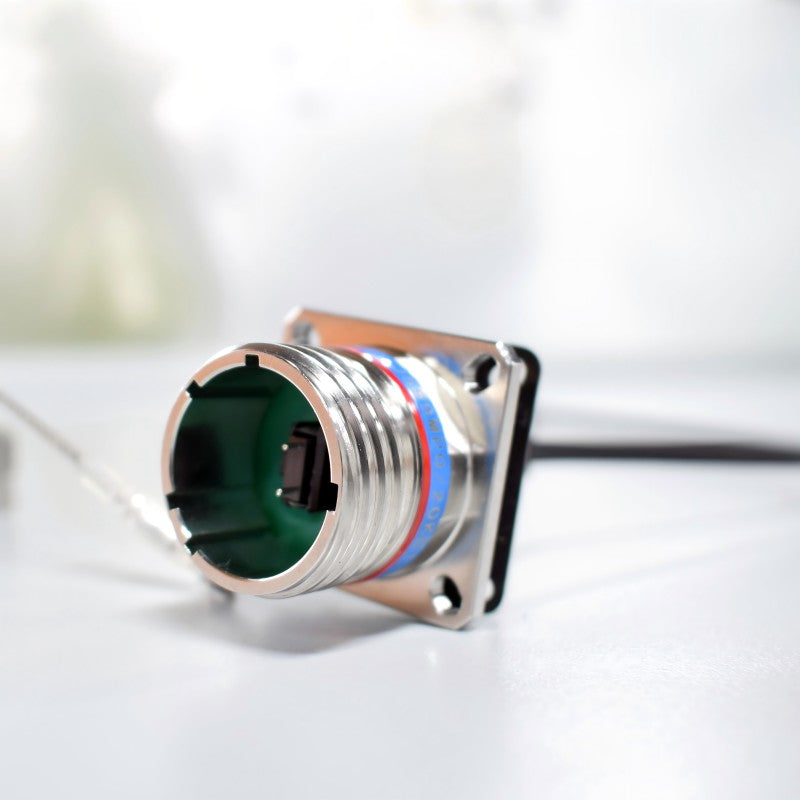

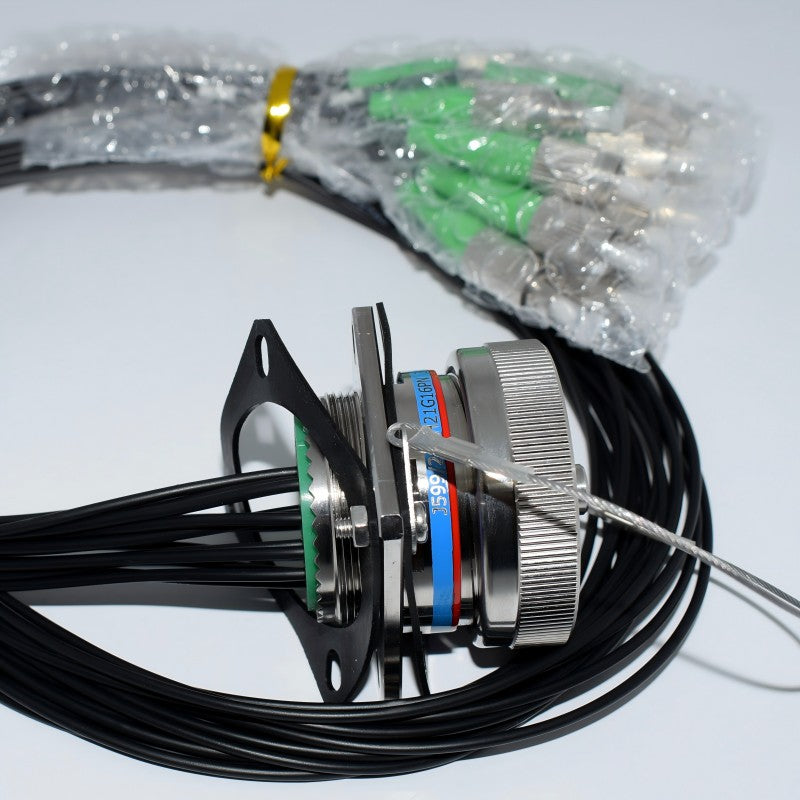

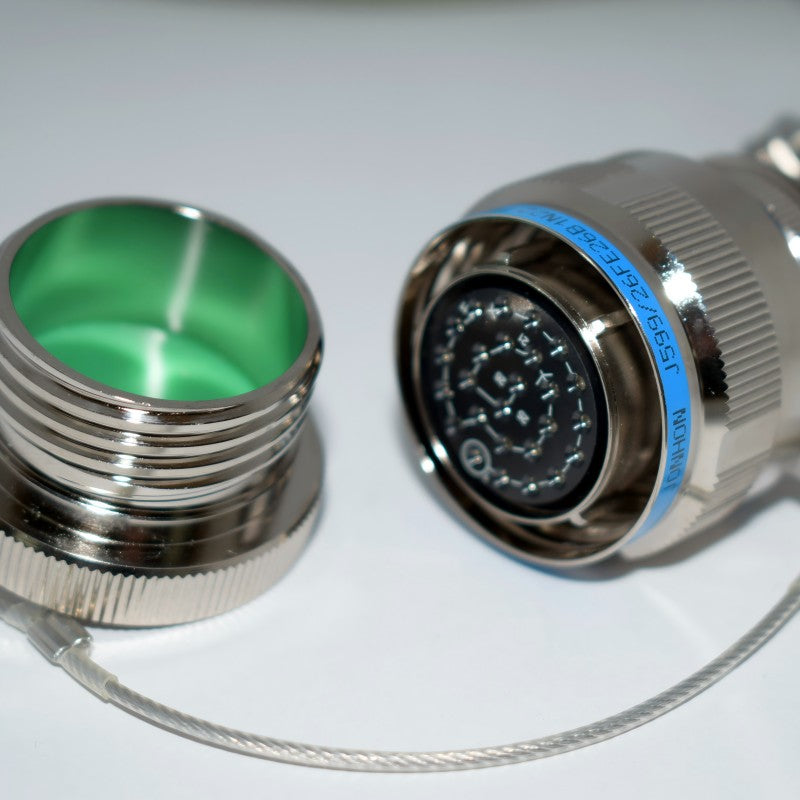

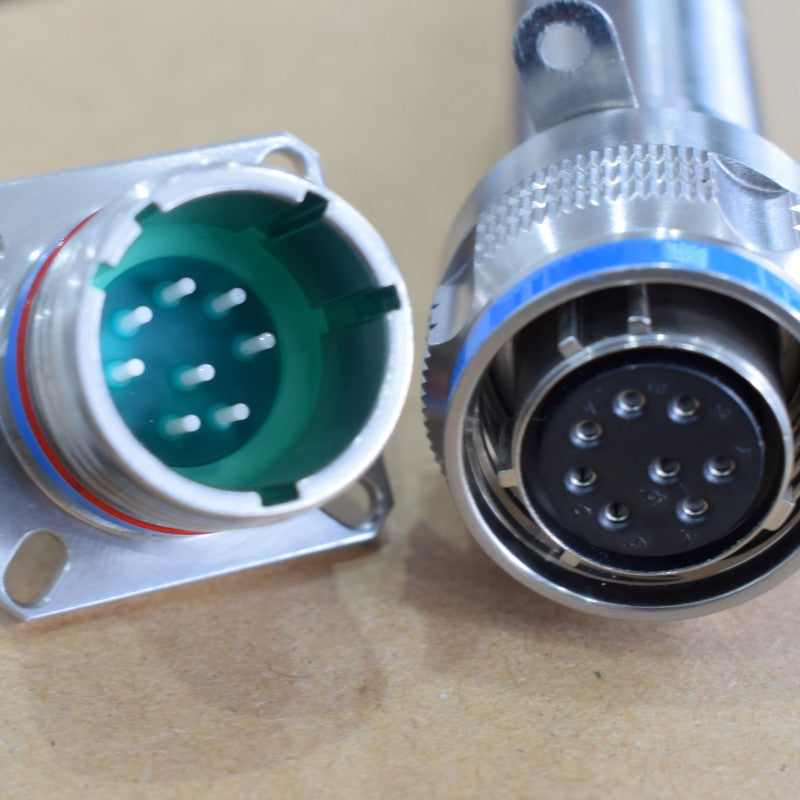

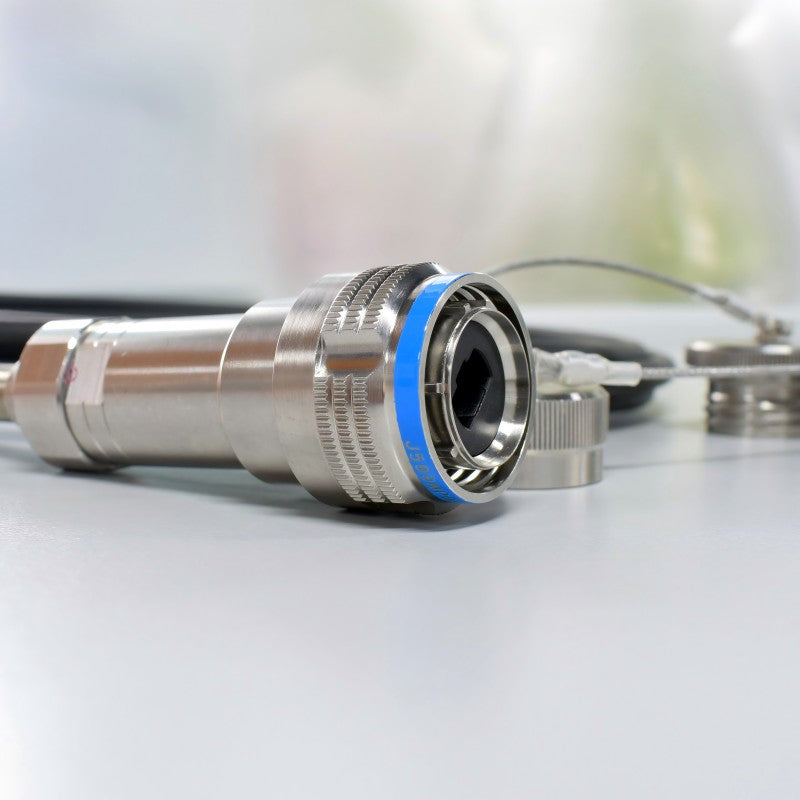

D38999 tactical waterproof connector with rugged design and joints with three thread fast connection, and adapt with Five keyslocate at the same time, blind insertion and error proofing in and anti vibration function, connector made of stainless steel,D38999 Series connector can provide 1-32C fiber connection, also available for 12C hybrid cable: 8F4P, 6F6P, 4F4P, 5F3P and4fiber & 8 power optional Connection.

Features
● (MIL-DTL-38999)Ⅲseries Standard.
● Applied in aviation, electronics, Marine ships and other harsh
environment systems for multiplexed optical communication
● Outer casing can choose different materials and coatings to adapt to
different environmental requirements

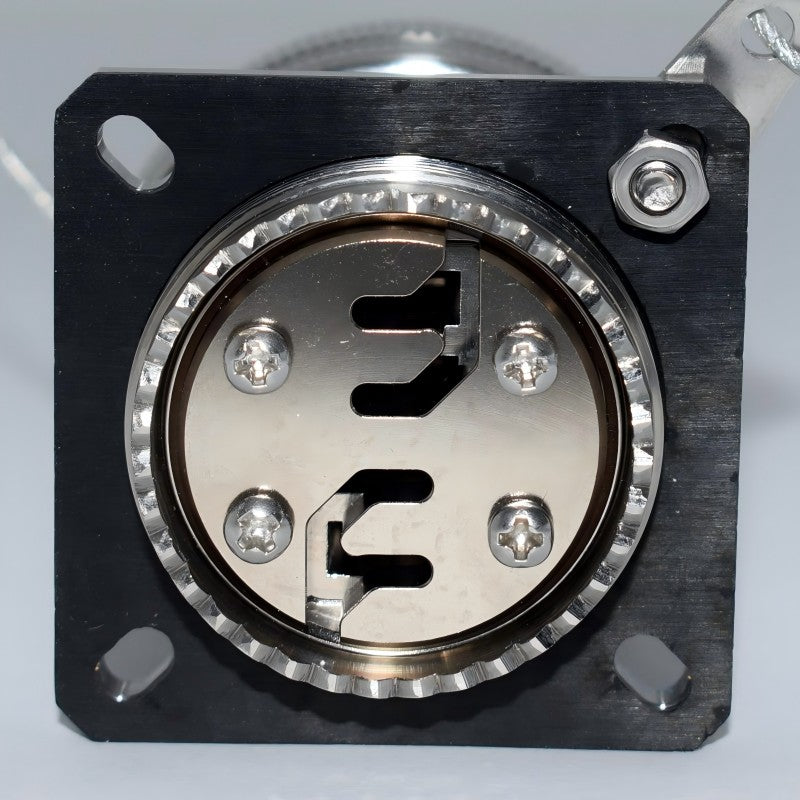

● Five key location, there are blind mating and error proofing
interpolation function
● three Screw thread quick connect, and with anti-release mechanism
● Ceramic pin and sleeve contacts to achieve precision docking
Parameters
● Insertion loss:<0.6dB
● Workingtemperature:-55℃~+85 ℃
● Vibration: 10Hz~2000Hz.
● Shock:980m/s2.
● Mechanical life: 500 times
● tensile strength:>720N (Main Cable)
Ordering Information

Configuration (Socket as reference)

[Ordering info example]

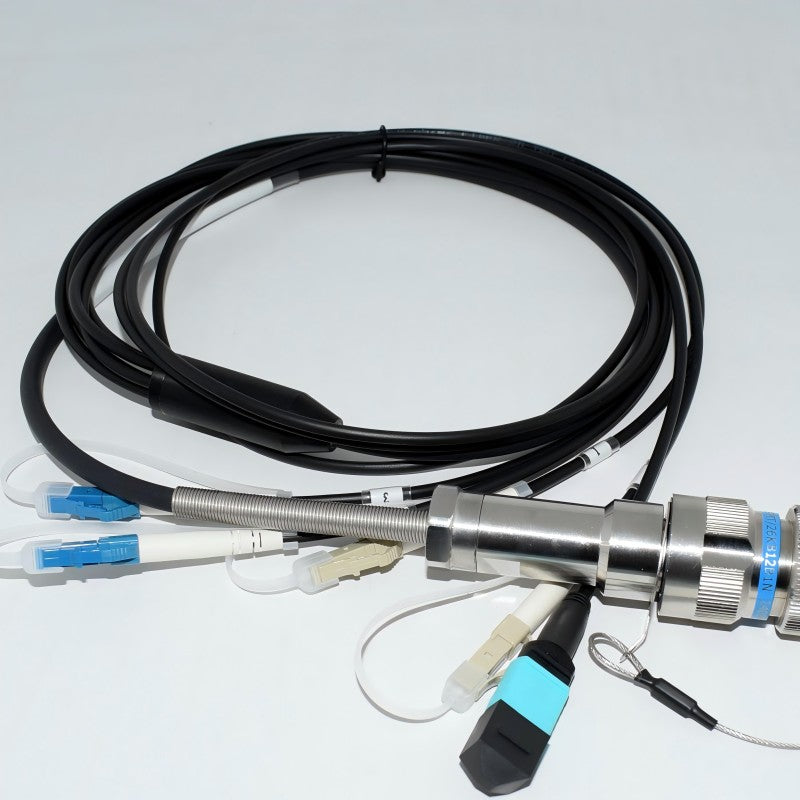

(1) D38999/26KC04B1N-4ST-L3/0.3m-SM1.8
End A is D38999/26KC04B1N Plug，End B is 4ST connector, length is 3/0.3m, SM armored tactical branch cable, O.D. is 1.8mm
D38999 Socket-LC/SC/FC/ST Drawing[Ordering info example]

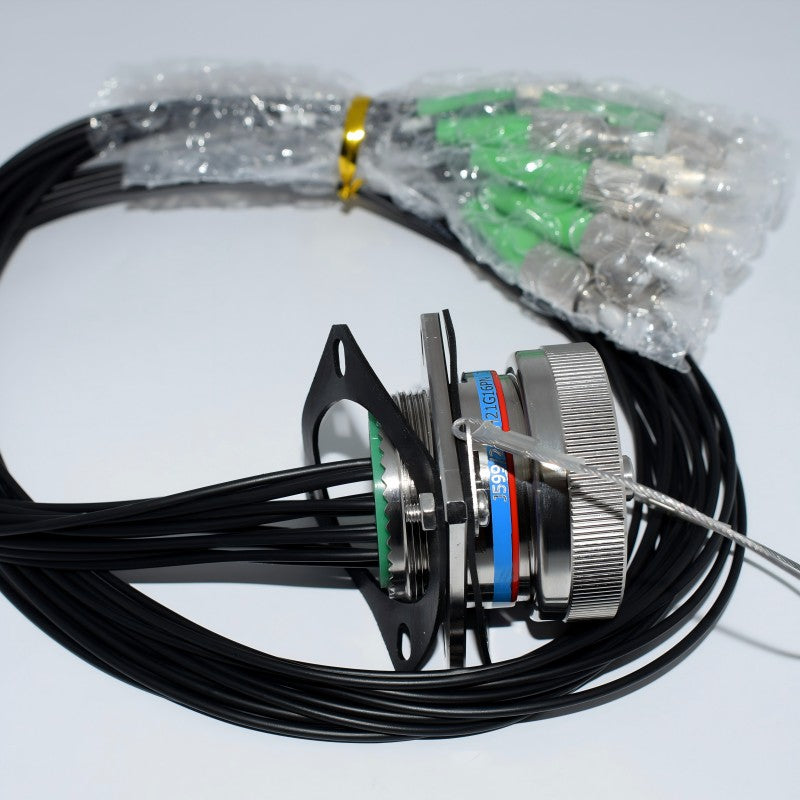

(1) D38999/20KC04A1N-4ST-L1m-SM1.8 End A is D38999/20KC04A1N Socket，End B is 4ST connector, branch cable length is 1m, SM armored tactical branch cable, O.D. is 1.8mm

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
