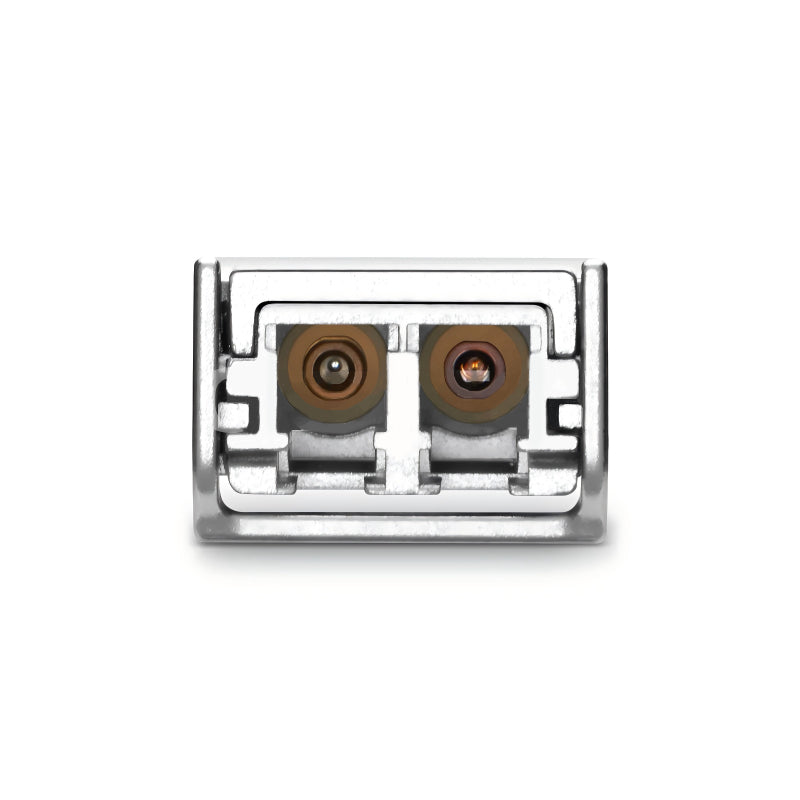

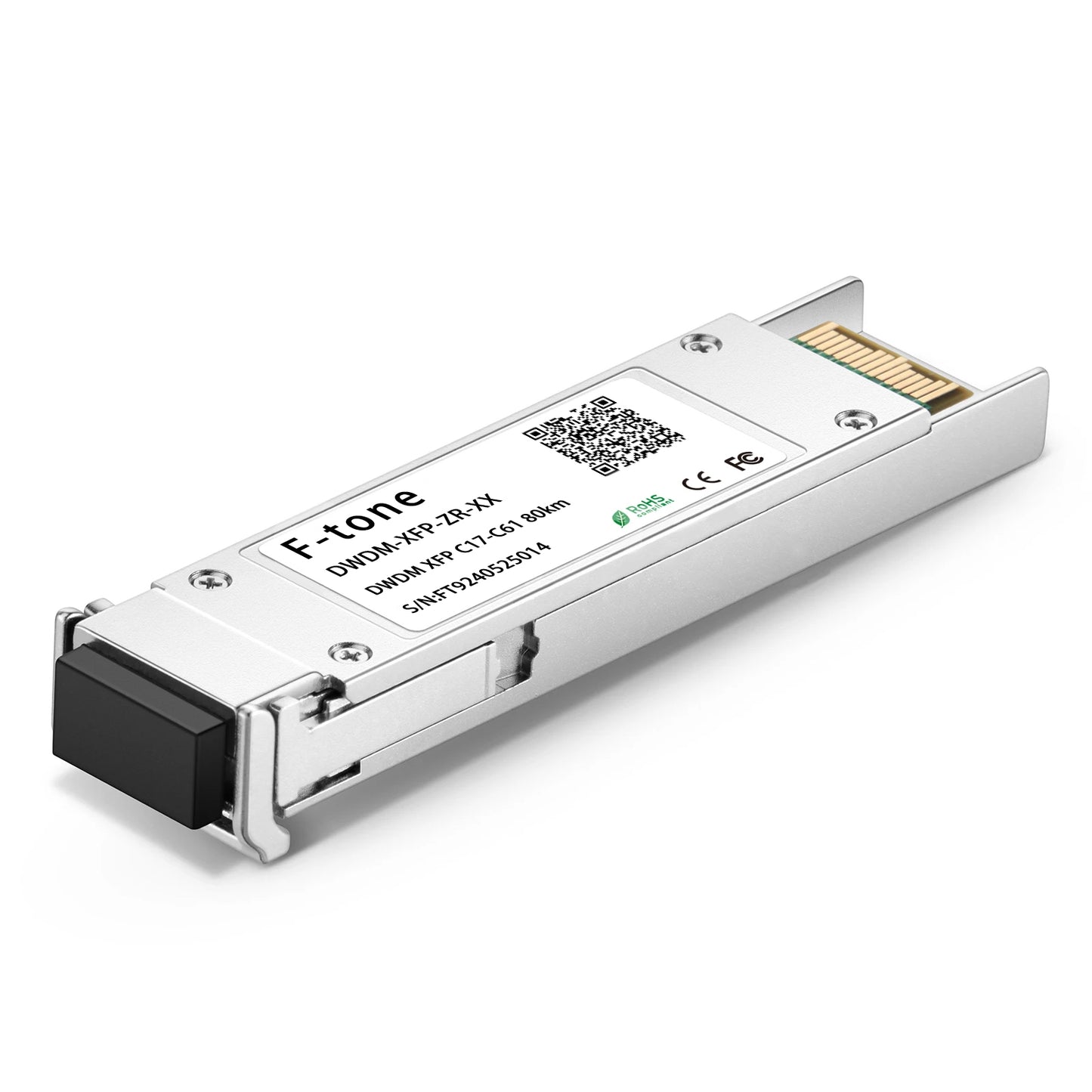

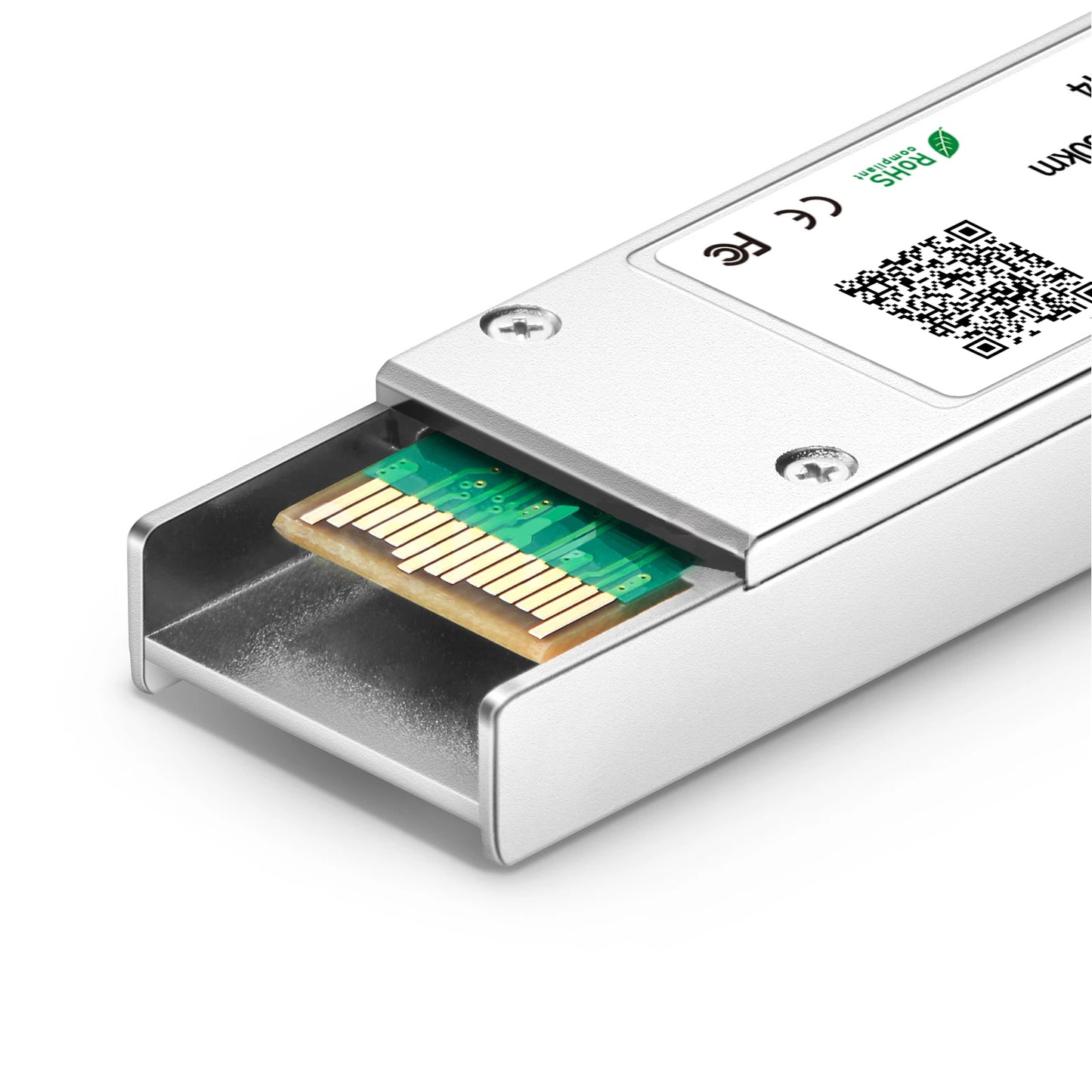

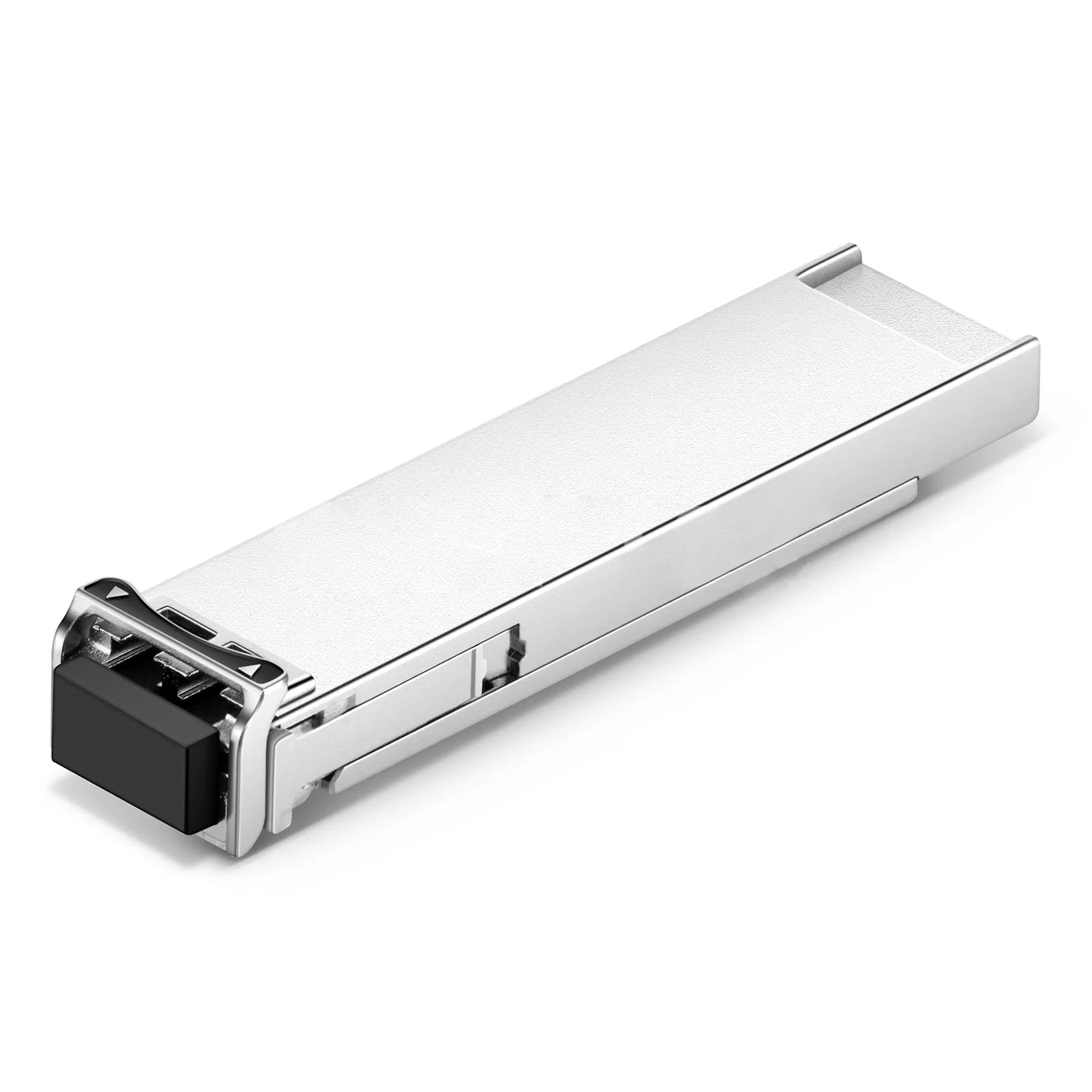

Generic Compatible 10G DWDM XFP C17-C61 80km DOM LC SMF Transceiver

Generic Compatible 10G DWDM XFP Optical Transceiver Module (SMF, C17-C61, 80km, LC, DDM)

The Generic compatible DWDM-XFP-ZR-XX 10G SXFP module features an LC duplex connector and supports up to 80km over single-mode fiber (SMF) G.652/655. Operating at a nominal DWDM wavelength of C17 channel - 1563.86nm to C61 channel - 1528.77nm, as specified by ITU-T, it's designed for DWDM network equipment connectivity.
Manufactured by F-tone, this 10GBASE-DWDM XFP module complies with SFP+ MSA Compliant, CPRI, and eCPRI specifications. It's extensively tested for compatibility with H3C equipment like Ethernet switches, enterprise routers, and server NICs. This third-party DWDM 10G XFP module offers a cost-effective alternative to brand OEM XFP 10G transceiver.
DWDM 10G XFP optics are perfect for 10 Gigabit Ethernet (10GbE) fiber connections, ideal for Long Haul DWDM Solutions in metro access and core networks.

Model Name	DWDM-XFP-ZR-XX	Vendor Name	F-tone
Form Factor	XFP	Data Rate	10Gbps
Wavelength	C17-C61 1563.86nm - 1528.77nm	Distance	80km@G.652
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	-1~+4dBm	Receiver Sensitivity	<-24dBm
Power Consumption	<1.5W	Modulation Format	NRZ
DOM	Support	Bit Error Ratio (BER)	1E-12
Protocols	SFP+ MSA Compliant, CPRI, eCPRI	Warranty	5 Years

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about us Contact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing
