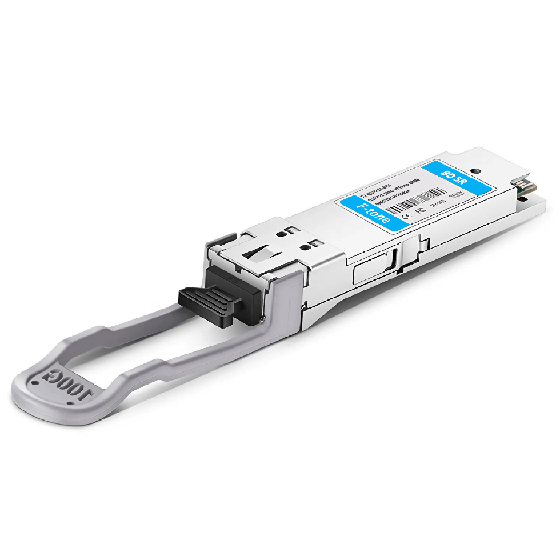

Generic QSFP-100G-DR-S Compatible 100GBASE-DR Single Lambda QSFP28 1310nm 500m LC Duplex SMF DDM Optical Transceiver Module

Generic QSFP-100G-DR-S Compatible 100GBASE-DR Single Lambda QSFP28 1310nm 500m LC Duplex SMF DDM Optical Transceiver Module

Generic QSFP-100G-DR-S Compatible 100GBASE-DR Single Lambda QSFP28 1310nm 500m LC Duplex SMF DDM Optical Transceiver Module

QSFP-100G-DR optical transceiver module adopts duplex LC connectors, reaching a link up to 500m over OS2. It features only one single channel to carry 100GbE/s per lane. F-tone Networks manufactured 100GBASE-DR QSFP28 transceiver module is compliant with IEEE 802.3cd, QSFP28 MSA, and 100G Lambda MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers and 100G to 400G breakout applications.



Model Name FT-QSFP28-DR1 Vendor Name F-tone Networks
Form Factor QSFP28 Data Rate 103.125Gbps
Wavelength 1310nm Distance 500m
Connector MTP/MPO-12 Male Cable Type OS2 SMF
Transmitter Type EML Receiver Type  PIN
TX Power -2.9~+4dBm Receiver Sensitivity



<-5.9dBm


Power Consumption  <4.3W Modulation Format: PAM4
DDM Support Bit Error Ratio (BER) 1.00E-12
Protocols

IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI

 Warranty 5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

View full details

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.

about usContact Us

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
