HDMI Pure Active Optical Cable (Medical)

Name: HDMI Pure Active Optical Cable (Medical)
Brand: 我的商店
Availability: InStock

Product Details
Various imaging systems are used in medical applications, such as CT, MRI and endoscope. It is highly demanding in reliability and stability of signal transmission to use these devices in clinical scenarios, transmitting documents, images, videos and other data, and even using high - definition images for remote diagnosis. It can diagnose diseases early and improve medical effect.

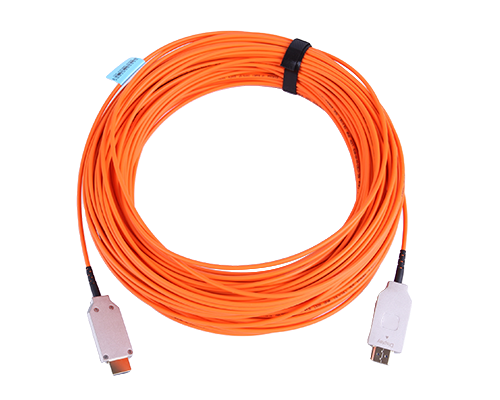

FT-62-MHP02-A0A0 HDMI Pure Active Optical Cable launched by F-tone Networks is aimed at medical industry. It uses pure optical fiber for signal transmission. With its excellent performance and low power consumption, it can transmit 4k UHD images in 300 meters. FT-62-MHP02-A0A0 adopts BendRobust® optical fiber exclusive to YOFC, which makes the cable resistant to 180-degree bending, light, soft and slim. Moreover, optical fiber can naturally shield electromagnetic interference, and has better signal quality and perfect EMI/EMC feature. Fiber core adopts laser cutting for end face processing, which has better coupling effect, and makes the process more mature and stable.
Compared with other HDMI optical fiber transmission solution, this product is easier to use, and no external power supply is needed. It is very suitable for medical scenarios.

Applications
● Medical

Specifications

Product Model	FT-62-MHP02-A0A0
Bandwidth	HDMI, 10.2Gbps

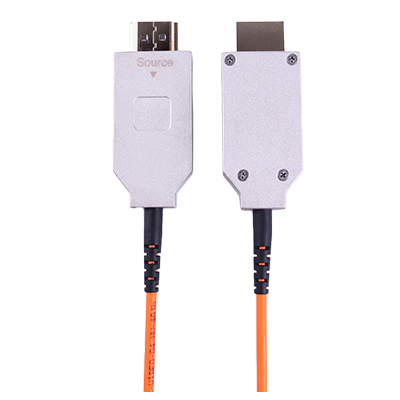

Connector	Source Connector, HDMl Standard Type-A Male Connector Display Connector, HDMl Standard Type-A Male Connector
Connector Dimension	43.15mm x 21.85mm x 8mm
Cable Length	Can reach 300m
Cable Materials	LSZH
Colour	Orange
Optical Fiber Specification	62.5/250 multimode optical fiber
Bend Radius	30mm
Power Consumption	250mW

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
