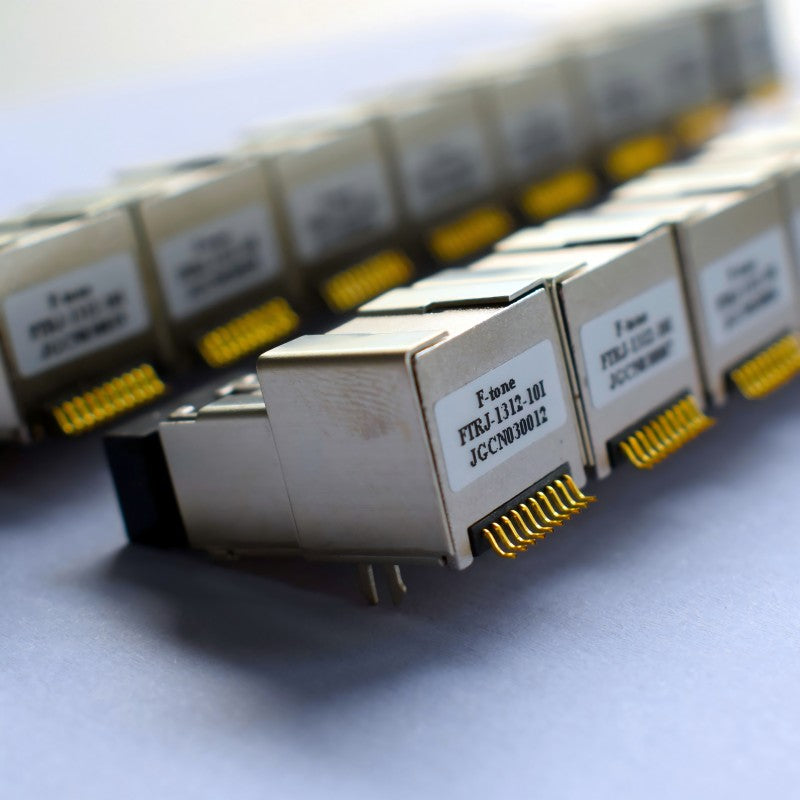

LC-RJ USOT Optical Transceiver（155M~10G）

Features
● Surface Mount I/O Pins for High-Speed Signal Integrity
● Full metal shell
● Industrial/Military grade temperature range, using anti-vibration design
● Optical connector is LC
● Support rate: 0~10G optional
● The wavelength is 850nm/1310nm/1550nm/CWDM/DWDM, and 850nm/1310nm is recommended.
● Transfer distance: 0~120km optional, recommend 10km
● 3.3V single power supply
● Dual fiber LC interface
● All metal shell, welded installation
● Temperature range: industrial temperature -40℃～+85℃.
● Application:
● Digital radar array
● Point to point optical fiber communication
● Robot Communication
● Medical inspection communication
● Aerospace communications
● Industrial, military communications
● Ship, Railway Communication
● Various digital optical communication systems.
Mechanical Dimensions(mm)
RJ module, there are two kinds of pin, and two kinds of shell. (10G 1310 module shell is larger, different from others). There are three kinds of structure drawings. The 10G module pin is the same, all with I2C, 12 pins, 0.8mm spaces. The three structure diagrams are as follows:
(1)The structure diagram of 10G 850nm,with I2C, module length is 21.6mm, pin number is 12 needles, center pin distance is 0.8mm.

Number of pins	center pin distance	Pin pad width
12	0.8mm	0.3mm

(2) The structure diagram of 10G 1310nm，withI2C，module length26.6mm， pin number is12 needles， center pin distance is0.8mm.

Number of pins	center pin distance	Pin pad width
12	0.8mm	0.3mm

(3) The structure diagram of 10G 1310nm，withI2C，module length26.6mm， pin number is12 needles， center pin distance is0.8mm.

Number of pins	center pin distance	Pin pad width
12	0.8mm	0.3mm

Ordering Information

Product name	Description
FTRJ-8503-02	RJ Optical module50M～155Mbps 850nm MM ,0℃～70℃
FTRJ-8503-02I	RJ Optical module50M～155Mbps 850nm MM ,-40℃～85℃

FTRJ-1303-10	RJ Optical module50M～155Mbps 1310nm 10km ,0℃～70℃
FTRJ-1303-10I	RJ Optical module50M～155Mbps 1310nm 10km ,-40℃～85℃

FTRJ-8512-02	RJ Optical module100M～1.25Gbps 850nm MM,0℃～70℃
FTRJ-8512-02I	RJ Optical module100M～1.25Gbps 850nm MM ,-40℃～85℃

FTRJ-1312-10	RJ Optical module100M～1.25Gbps 1310nm 10KM ,0℃～70℃
FTRJ-1312-10I	RJ Optical module100M～1.25Gbps 1310nm 10KM ,-40℃～85℃

FTRJ-851X-02	RJ Optical module1G～10Gbps 850nm MM ,0℃～70℃
FTRJ-851X-02I	RJ Optical module1G～10Gbps 850nm MM ,-40℃～85℃

FTRJ-131X-10	RJ Optical module1G～10Gbps 1310nm 10KM ,0℃～70℃
FTRJ-131X-10I	RJ Optical module1G～10Gbps 1310nm 10KM ,-40℃～85℃

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
