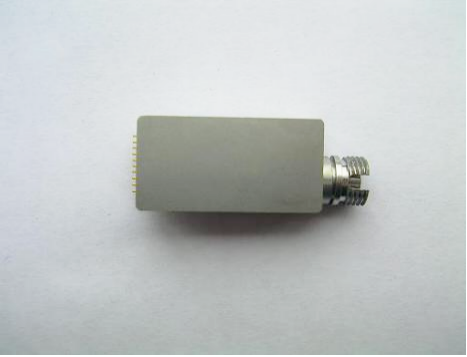

MINISFF BIDI Optical Transceiver

Features
● Industrial-grade temperature range with anti-vibration design
● Pin and mounting dimensions are fully compatible with STRATOS products
● FC/ST interfaces optional
● More compact structural design
● +3.3V single power supply
● Surface-mount I/O pins adapted for high-speed signal integrity
● Equipped with received data signal detection function
Application
The MINISFF pluggable series of micro optical transceivers are suitable for high-reliability and high-efficiency digital optical fiber communication applications; with a transmission rate of up to 10Gbps, they are widely used in miniaturized and compactly designed digital optical communication systems.

Ordering Information

Model	Wavelength (nm)	Data Rate	Transmission Distance (km)	Digital Diagnostic	X
FTMF-B1303-40x	tx1310/rx1550	155M	40	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B1503-40x	tx1550/rx1310	155M	40	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B1312-20x	tx1310/rx1550	1.25G	20	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B1512-20x	tx1550/rx1310	1.25G	20	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B1324-20x	tx1310/rx1550	2.5G	20	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B1524-20x	tx1550/rx1310	2.5G	20	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B271X-10x	tx1270/rx1330	10G	10	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-B331X-10x	tx1330/rx1270	10G	10	N	E:Commercial grade I: Industrial grade M: Military grade

Note: Pigtail length can be customized.

Mechanical Dimensions(mm)

Note: Undesignated tolerances: ±0.25mm

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
