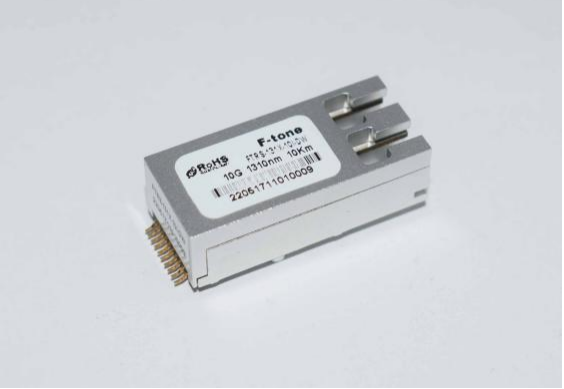

MINISFF Dual-fiber Optical Transceiver, MMF

Features
● Industrial-grade temperature range with anti-vibration design
● Pin and mounting dimensions are fully compatible with STRATOS products
● More compact structural design
● +3.3V single power supply
● Surface-mount I/O pins adapted for high-speed signal integrity
● Equipped with received data signal detection function (except for FTMF-851X-02Dx)
Application
The MINISFF pluggable series of micro optical transceivers are suitable for high-reliability and high-efficiency digital optical fiber communication applications; with a transmission rate of up to 10Gbps, they are widely used in miniaturized and compactly designed digital optical communication systems.

Ordering Information

Model	Wavelength (nm)	Data Rate	Transmission Distance (km)	Digital Diagnostic	X
FTMF-8512-02x	850	1.25G	0.5	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-8542-02x	850	4.25G	0.3	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-8562-02x	850	6.25G	0.3	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-851X-02x	850	10G	0.3	N	E:Commercial grade I: Industrial grade M: Military grade
FTMF-851X-02Dx	850	10G	0.3	Y	E:Commercial grade I: Industrial grade M: Military grade

Mechanical Dimensions(mm)

Note: Undesignated tolerances: ±0.25mm

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
