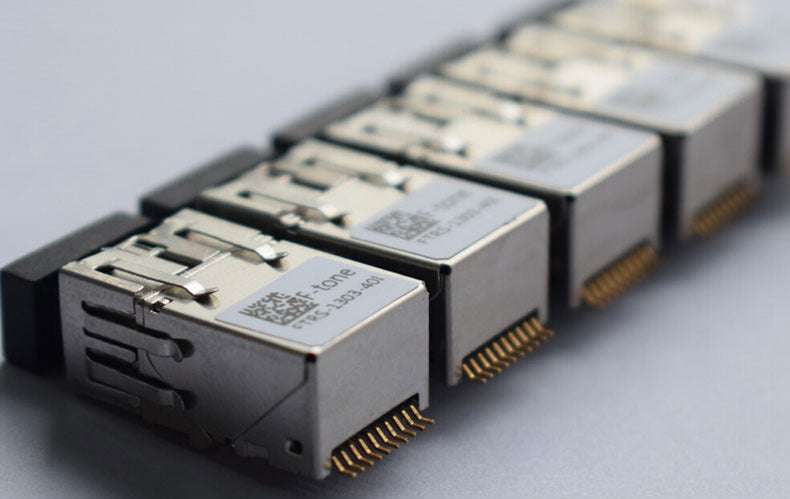

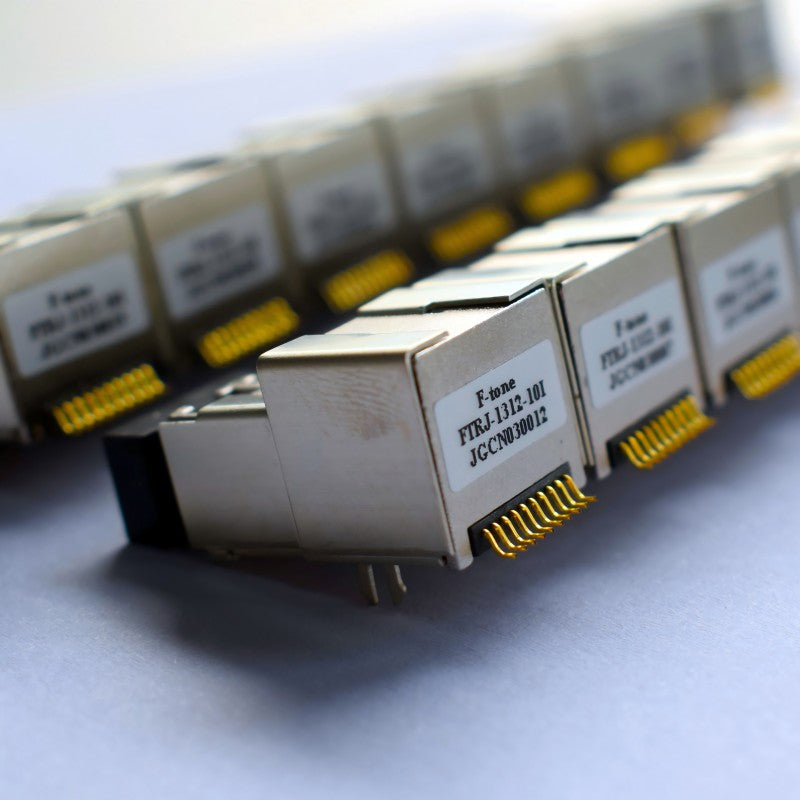

MINISFF Optical Transceiver

Features

More compact structure design——module height is only 8mm.
Adapt to SOT I/O pin with high speed signal integrity.
BIDI, save fiber channel.
Full metal jacket, industrial level of temperature range, vibration resistance design.
Equipped with the function of receiving data signal detection.
+3.3V single power.
Optical interface with pigtail, flange interface, etc.

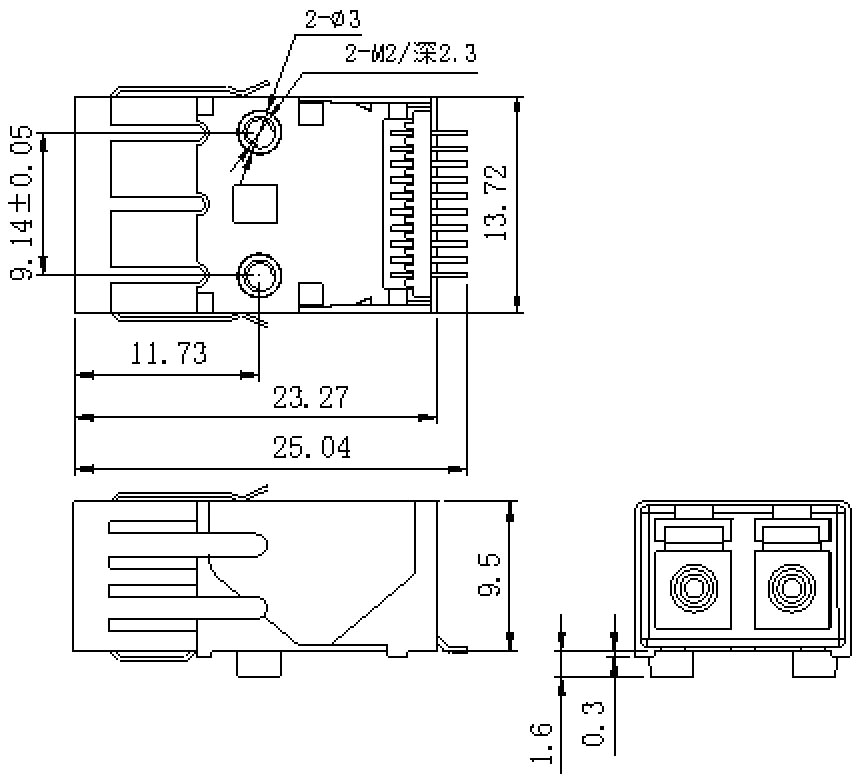

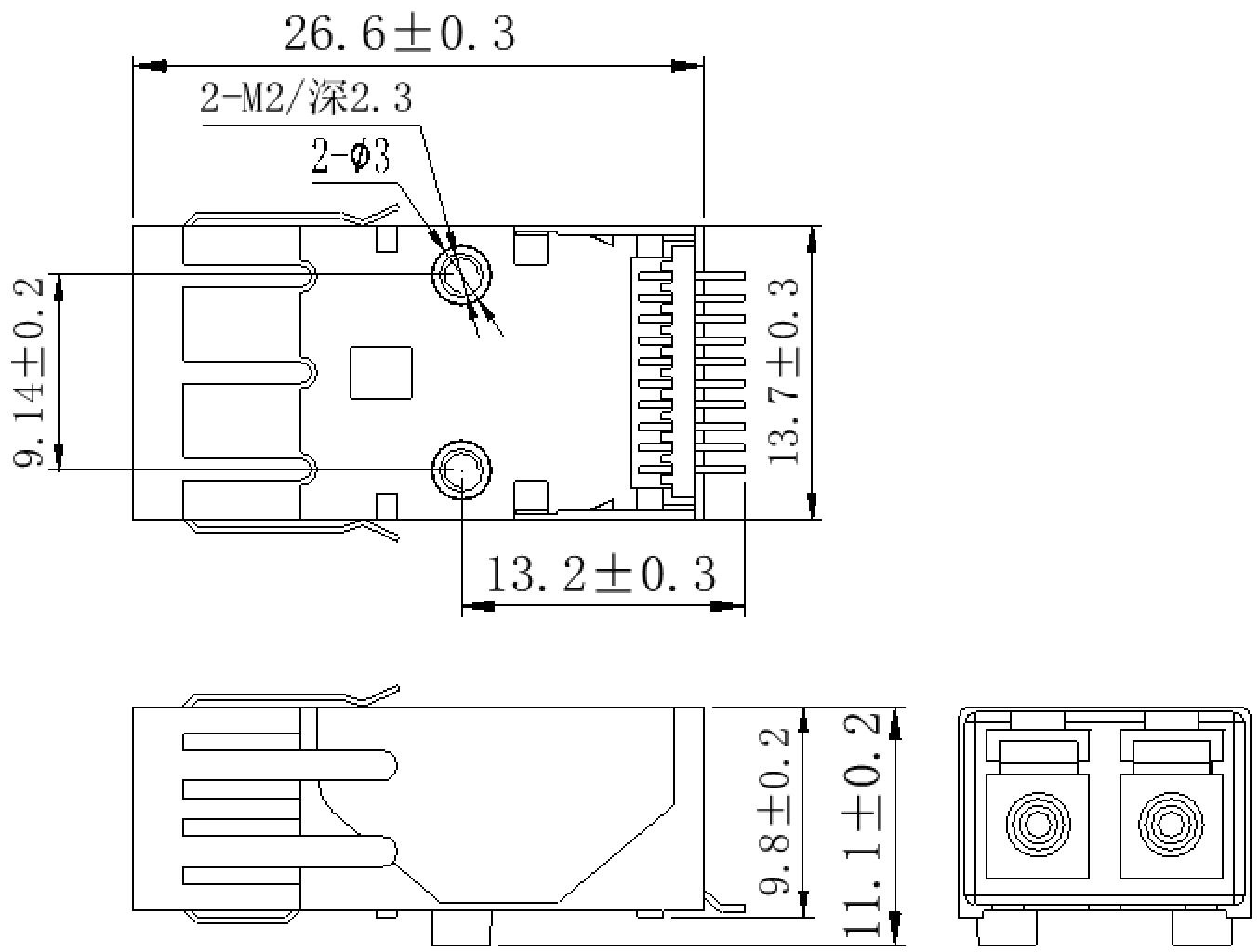

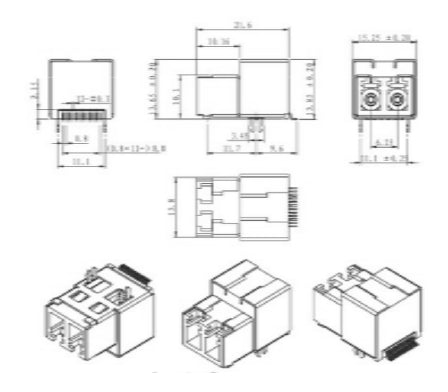

Pin and installation dimension are fully compatible with STRATOS product.

Applications

MINISFF series micro optical transceiver module could provide reliable and effective digital optical fiber communication application. Transmission rate could reach 10Gbps.
Digital radar array.
Reliable and high data rate point-to-point optical fiber communication.
High density signal interconnection of signal processing center.

Model	Package	Connector	Rate	Transmission	Fiber	Laser	Emission Optical	RX Sensitivity	Working
Model	Package	Connector	Rate	Distance (Km)	Fiber	Laser	Power (dBm)	（dBm）	Temperature (℃)
FTAP-11A35-3H	MINISFF	PIGTAIL	155M	2	SM	1310FP	-6~0	-24	-40~85℃
FTAP-44A35-3H	MINISFF	FC PIGTAIL	1.25G	2	SM	1310FP	-9~0	-21	-40~85℃
FTAP-77A35-3H	MINISFF	FC PIGTAIL	3.24G	2	SM	1310FP	-8~0	-17	-40~85℃
FTAP-99ADE-SH	MINISFF	PIGTAIL	6G	2	SM	1270	-6~0	-14	-40~85℃
FTAP-99F35-SH	MINISFF	FC PIGTAIL	6.25G	0.3	SM	1310FP	-10~0	-14	-40~85℃
FTAP-TTLDE-CH	MINISFF	PIGTAIL	10G	10	SM	1270	-8.2~-0.5	-14.4	-40~85℃
FTN3X-TTLAA-CH	MINISFF	FC/PC PIGTAIL	10G	10	SM	1310	-8.2~-0.5	-14.4	-40~85℃
FTN5S-HHF8A-SH	MINISFF	ST PIGTAIL	4.8G	0.3	SM	850	-5~0	-17	-40~85℃
FTNL-44DAA-3H	MINISFF	LC	1.25G	40	SM	1310DFB	-3~-2	-23	-40~85℃
FTNL-66LAA-CH	MINISFF	LC	2.5G	10	SM	1310DFB	-6~0	-18	-40~85℃
FTNL-882AA-CH	MINISFF	LC	4.25G	20	SM	1310DFB	-3~0	-18	-40~85℃
FTALW-7NA3C-3H	MINISFF	LC	3.2G	2	SM	1310FP	-8~0		-40~85℃
FTALW-7NLAC-3H	MINISFF	LC	3.2G	10	SM	1310DFB	-6~0		-40~85℃
FTALW-N7ANA-3H	MINISFF	LC	3.2G	2	SM			-17	-40~85℃
FTALW-N7LNA-3H	MINISFF	LC	3.2G	10	SM			-17	-40~85℃
FTAP2-7NA3C-3H	MINISFF	FC PIGTAIL	3.2G	2	SM	1310FP	-8~0		-40~85℃
FTAP2-N7ANA-3H	MINISFF	FC PIGTAIL	3.2G	2	SM			-17	-40~85℃
FTNL-44S88-SH	MINISFF	LC	1.25G	0.5	MM	850VCSEL	-9~0	-17	-40~85℃
FTNL-88F88-SH	MINISFF	LC	4.25G	0.3	MM	850VCSEL	-9~0	-15	-40~85℃
FTNP-44L3A-SH	MINISFF	PIGTAIL	1.25G	10	SM	1310FP	-9~0	-21	-40~85℃
FTNP-44S88-SH	MINISFF	PIGTAIL	1.25G	0.5	MM	850VCSEL	-9~0	-18	-40~85℃
FTNP-88F88-SH	MINISFF	PIGTAIL	4.25G	0.3	MM	850VCSEL	-8~0	-15	-40~85℃
FTNP-99ACA-SH	MINISFF	PIGTAIL	6G	2	SM	1550DFB	-5~+1	-15	-40~85℃
FTNPS-77F8A-SH	MINISFF	PIGTAIL	3.125G	0.3	MM	850VCSEL	-5~0	-25	-40~85℃
FTAF-11LCA-SH	MINISFF	FC	155M	10	SM	1550DFB	-9.5~0	-24	-40~85℃
FTAF-77L35-3H	MINISFF	FC	3G	10	SM	1310FP	-9.5~0	-18	-40~85℃
FTAF-TTADE-SH	MINISFF	FC	10G	2	SM	1270	-8~0.5	-14.4	-40~85℃
FTNL-66D47-CH	MINISFF	LC	2.5G	40	SM	1470CWDM	0~+5	-26	-40~85℃
FTNL-99245-CH	MINISFF	LC	6.25G	20	SM	1450CWDM	-3~+2	-14.4	-40~85℃
FTNL-LLL17-3H	MINISFF	LC	0~100M	10	SM	1563.86DWDM	-5~0	-15	-40~85℃
FTNL-NTLNA-CH	MINISFF	LC	10G	10	SM			-14.4	-40~85℃
FTNL-TNLAN-CH	MINISFF	LC	10G	10	SM	1310DFB	-8.2~+0.5		-40~85℃
FTNL-TTF88-CH	MINISFF	LC	10G	0.3	MM	850VCSEL	-5~+1	-10	-40~85℃
FTNL-TTLAA-3H	MINISFF	LC	10G	10	SM	1310DFB	-8.2~+0.5	-14.4	-40~85℃
FTNL-TTL27-CH	MINISFF	LC	10G	10	SM	1270CWDM	-3~+2	-14.4	-40~85℃
FTNLV-7ND27-CH	MINISFF	LC	3G	40	SM	1270CWDM	0~+5		-40~85℃
FTNLV-N7DNA-CH	MINISFF	LC	3G	40	SM			-20	-40~85℃
FTNPS-77F8A-SH	MINISFF	PIGTAIL	3G	0.3	MM	850VCSEL	-5~0	-25	-40~85℃
