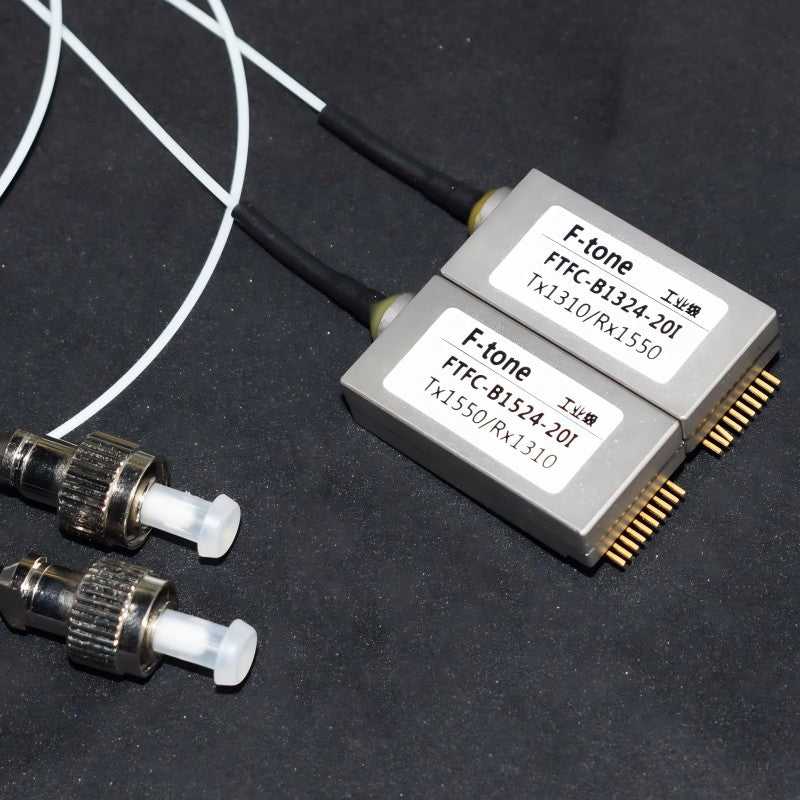

Pigtail USOT Optical Transceiver,4.25G,SMF

Features
● More compact design - module height is only 8mm
● Surface Mount I/O Pins for High-Speed Signal Integrity
● Full metal shell
● Military grade temperature range, using anti-vibration design
● Use only +3.3 V single power supply
● The optical port is in the form of fiber tail
Application
Various digital optical communication systems
The main performance index

Parameter	Index
Center wavelength	1310/1550nm
Typical transmission rate	4.25Gbps
Average transmitter power	-3dBm(25℃)
Reception sensitivity	≤-15dBm
Extinction Ratio	9dB
voltage	+3.3V
Operating temperature	-40℃～+85℃

Ordering Information

FTPI	-XX	XX	-xx	X
Fiber tail,Bi-directional surface mount	13=1310nm 15=1550nm	24 2.5Gbps 42 4.25Gbps	02 ≥2km 10 ≥10km 20 ≥20km A2 ≥0.2km	E: Commercial grade I: Industrial grade M: Military grade

The default fiber tail length is 1m
Mechanical Dimensions(mm)

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
