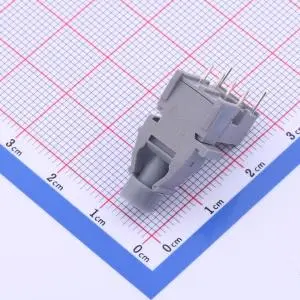

HFBR-1531Z,HFBR-2531Z,HFBR-1531Z 100% Compatible with Avago ,HFBR-2531Z 100% Compatible with Avago

HFBR-1531Z,HFBR-2531Z,HFBR-1531Z 100% Compatible with Avago ,HFBR-2531Z 100% Compatible with Avago

HFBR-1531Z,HFBR-2531Z,HFBR-1531Z 100% Compatible with Avago ,HFBR-2531Z 100% Compatible with Avago


1 Scope
This manual specifies the requirements for the structure, performance, environmental
suitability, quality assurance and inspection of the POF transceiver.
2 Product composition
The POF transceiver, including the transmitting device and the receiving device。
The transmitter consists of DATALINK LED chips.
The receiver includes a photodiode, a transimpedance amplifier, an output NPN, and a pull-up resistor，Circuit diagram shown in Figure 1：
                                 Figure 1 Schematic diagram of the receiver circuit
3 Product shape
3.1 Structure and interface
3.1.1 Dimensions
F-tone's POF transmitter 1531and receiver2531 have the same size，Its dimensions are shown in Figure 2：

3.1.2 Interface definition.
Transmitter interface and pin definition as shown in Figure 3：
                      Table 1 Description of the transmitter interface.
Serial
number		 Pin name Pin definition
1 Anode LED anode
2 Cathode LED cathode
3 Open open circuit
4 Open open circuit
Receiver device interface and pin definition shown in Figure 4：
Table 2 Description of the receiver interface
Serial
number		 Pin name Pin definition
1 VO TTL output
2 Ground Chip ground
3 VCC Chip power supply
4 RL Load side
3.1.3 Material requirements
The chip is made of semiconductor material, the chip package is made of transparent epoxy resin material, the device shell is made of RoHS-compliant flame-retardant plastic.
4 Red light transceiver products FT-1531 / FT-2531 technical parameters
4.1 FT-1531 Transmitter Characteristics
Table 3 Absolute Maximum Ratings
5. Typical application of optical transceiver devices.
6 Other
Product full range of no self-excited, and when the power ripple within 100mV performance to meet the requirements of parameters.
7 Storage
The product shall be packed in the corresponding packaging container provided by the
purchaser. The packaging container should be stored in a drying oven or drying tower with a relative humidity of not more than 30% and maintained at a temperature range of 10 ℃ ~ 30 ℃. The chip satisfying the above conditions is valid Storage period is more than 4 years.

Important Notice.

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
