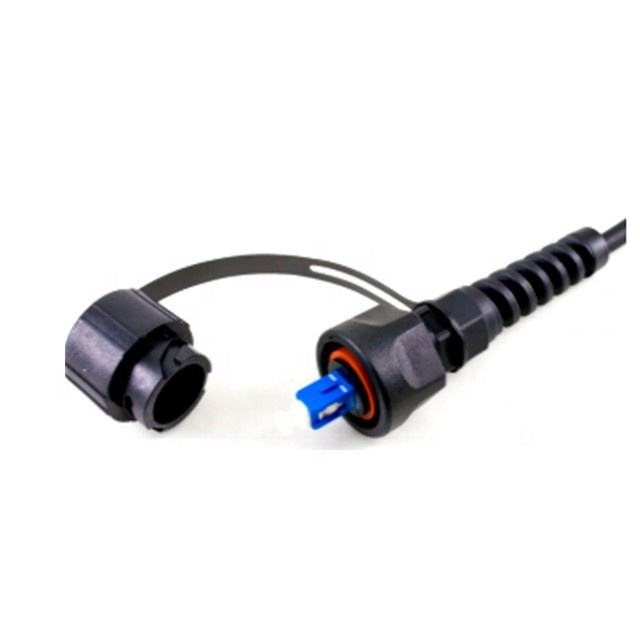

Single Mode Duplex ODVA -LC IP67 Waterproof ODVA-compliant Connectors RRU(RRH) Baseband Unit ODVA IP67 Patch Cord

Single Mode Duplex ODVA -LC IP67 Waterproof ODVA-compliant Connectors RRU(RRH) Baseband Unit ODVA IP67 Patch Cord

Single Mode Duplex ODVA -LC IP67 Waterproof ODVA-compliant Connectors RRU(RRH) Baseband Unit ODVA IP67 Patch Cord

Key attributes

Type Adaptor
Application
Audio & Video
Gender
Other

Other attributes

Place of Origin Cheng Du, China
Brand Name F-tone Networks
Model Number ODVA LC
Industry Communication
Category Fiber Optic
Model ODVA-LC
Connector type ODVA Bulkhead
Waterproof IP67
Application Outdoor deployment
Feature Harsh Rugged
FTTA RRU/BBU
Fiber type SM
Connector ODVA-LC/SC/MPO

Packaging and delivery

Selling Units: Single item

Product descriptions from the supplier

Product Details

Details:

ODVA harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Application:
Fiber-to-the-Antenna (FTTA)

Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE, etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

Automation and industrial cabling

ODVA provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.

Surveillance systems

Security camera manufacturers choose ODVA connectors for its compact size and robust design. ODVA assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Naval and ship building

The high corrosion resistance convinced both naval and civil ship builders to use ODVA assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

Broadcast

offers a range of mobile cabling systems and ODVA assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc. and for temporary connections in case of natural hazards.

Key Features

  1. Robust fiber-optic connector for 12 channels with screwed mating mechanism
  2. IP67 protection, salt-mist proof, and EMI protection
  3.  High shock, vibration, and mechanical resistance
  4. Broad temperature range and wide range of indoor and outdoor cables
  5. Easy, reliable and cost-effective installation


Optical performance

1.Insertion loss / IEC 61300-3-34

2.singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB

3.multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d


Return loss / IEC 61300-3-6 single mode ≥ 50 dB

Product Introduction

Applications：

  • Outdoor harsh environment fiber optic communications using
  • Outdoor communication device is connected
  • communication devices
  • Oil, mining communication connection
  • The wireless Remote base station
  • Video surveillance systems
  • Fiber sensing
  • Railway signal control using
  • Intelligent substation station communication

Features：

  • Thread the locking mechanism can ensure long-term reliable connection
  • Guiding mechanism, you can use one hand blind plug, connection quickly and easily install
  • Seal Design: waterproof, dustproof, anti-corrosion and other characteristics
  • Compact, easy to operate, durable
  • Wall seal design
  • Reduce welding, can be plugged directly interconnected
Details show Drawing

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
